Dateq BCS70 - BCS78 Connector Board Pinout Details; Director Connector Pinout; Ann;Guest;Studio Pinout

EN Dateq BCS70 Manual BCS78 master (monitor) module 17
BCS78 Director (Sub-D 9-pin female)
Pin Function Type
1 BCSBus Data
6 Audio GND A-GND
2 +12V power supply POWER
7 D-GND power supply POWER
3 Audio Right Out
8 Audio Left Out
4 Audio GND A-GND
9 Director Mic + In
5 Director Mic - In

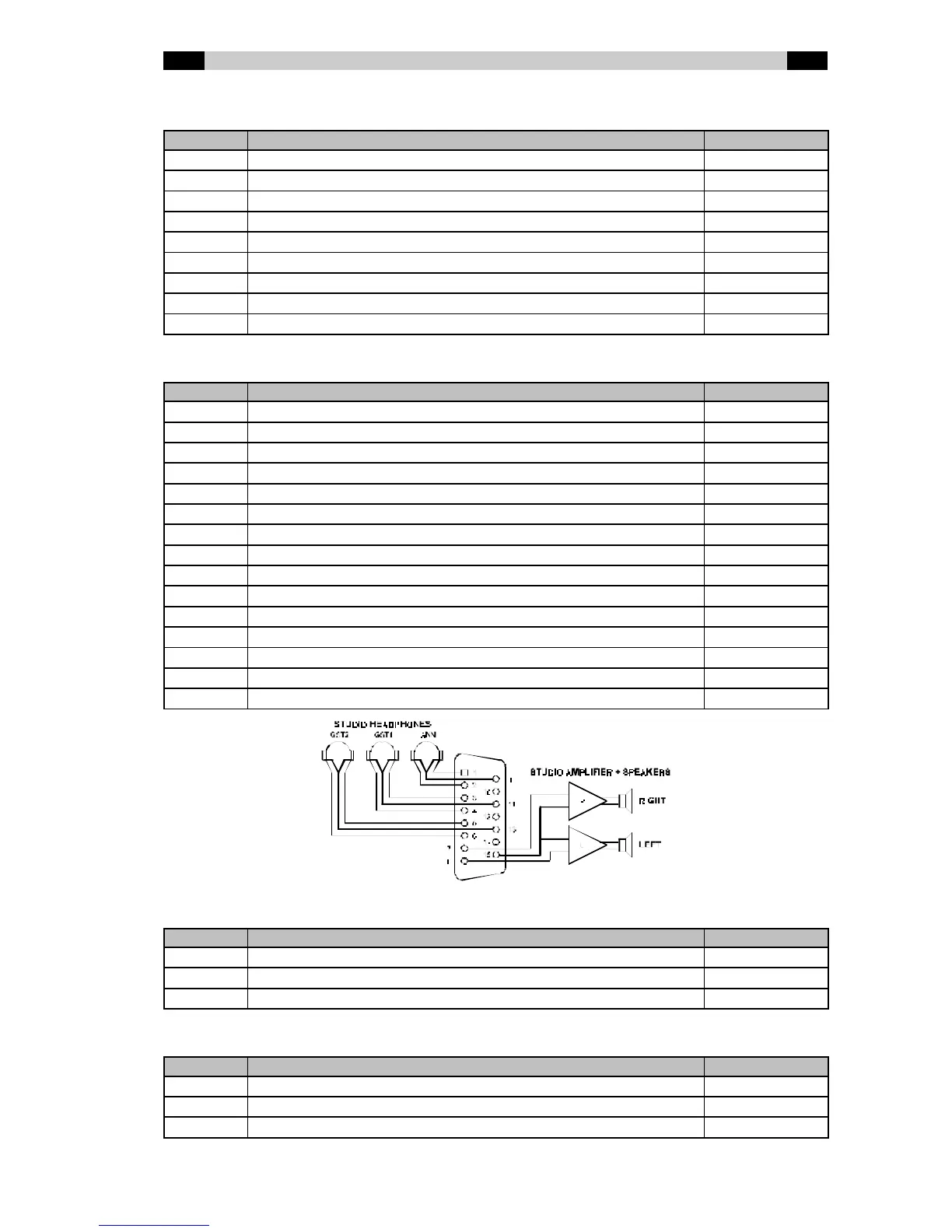

BCS78 Ann / Guest1 / Guest2 / Studio (Sub-D 15p female)
Pin Function Type
1 Announcer Headphones Right Out
9 Announcer Headphones Common Out
2 Announcer Headphones Left Out
10 -
3 Guest 2 Headphones Right Out
11 Guest 2 Headphones Common Out
4 Guest 2 Headphones Left Out
12 -
5 Guest 1 Headphones Right Out
13 Guest 1 Headphones Common Out
6 Guest 1 Headphones Left Out
14 -
7 Studio Output Right Out
15 Studio GND A-GND
8 Studio Output Left Out
BCS78 CR-L / CR-R (XLR 3p male)
Pin Function Type
1 Audio GND A-GND
2 Audio + Out
3 Audio - Out
BCS78 ON-AIR 1 / ON-AIR 2 (TRS Jack 3p)
Pin Function Type
Tip On-Air Opto coupler collector Out
Ring -
Sleeve On-Air Opto-coupler emitter Out
