Tec 7 Vaporizer
3-4
1175-0013-000
Checking the vaporizer for correct mounting
ww
ww
WARNING
To help ensure correct operation, do not use a vaporizer that is either
visibly out of line on the manifold or that can be lifted off the manifold
when the locking lever is in the locked position.
If more than one vaporizer is fitted, visually check to make sure that the tops of the
vaporizers are level. If the vaporizer is visibly out of line, perform steps 2 and 3 as
described in
Removing the vaporizer from a manifold
and remount it correctly.
When the vaporizer appears to be level and the locking lever is in the locked position,
attempt to lift the vaporizer straight up from the manifold. If the vaporizer can be lifted
off the manifold, it is not correctly mounted. Remount the vaporizer (see
Vaporizer
mounting procedure
).
Verify that the interlock rods are in alignment by making sure that only one vaporizer at
a time can be turned ON.
Check the anesthesia system for leaks in accordance with the relevant User’s
Reference Manual with the vaporizer dial turned to 0% and then repeat the check with
the vaporizer dial turned to .
Removing the vaporizer from a manifold
Step 1
Set the dial to .
If the dial is not completely turned to
the position the vaporizer cannot
be released from the manifold.

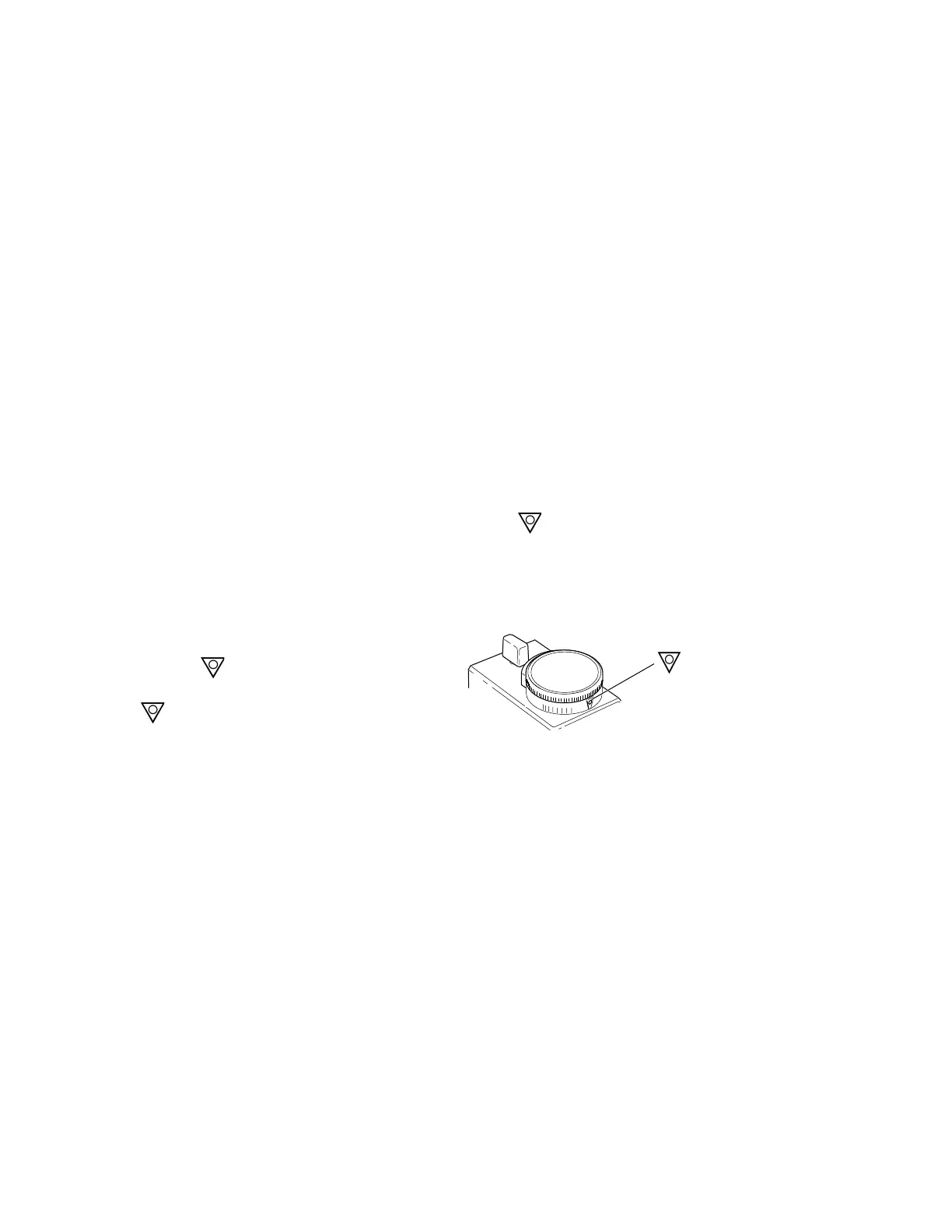

Figure 3-6 • Setting the dial
OFF
OFF
Å
b
e
n
AB80001
