Datex-Ohmeda Tec 7 - Draining procedure with Easy-Fil

Tec 7 Vaporizer
4-8
1175-0013-000
Draining procedure
with Easy-Fil
ww
ww
CAUTION Do not allow the container to become completely full during draining
procedures.
The vaporizer must only be drained into a properly marked container.
Step 1
Remove the cap from the vaporizer
filler.

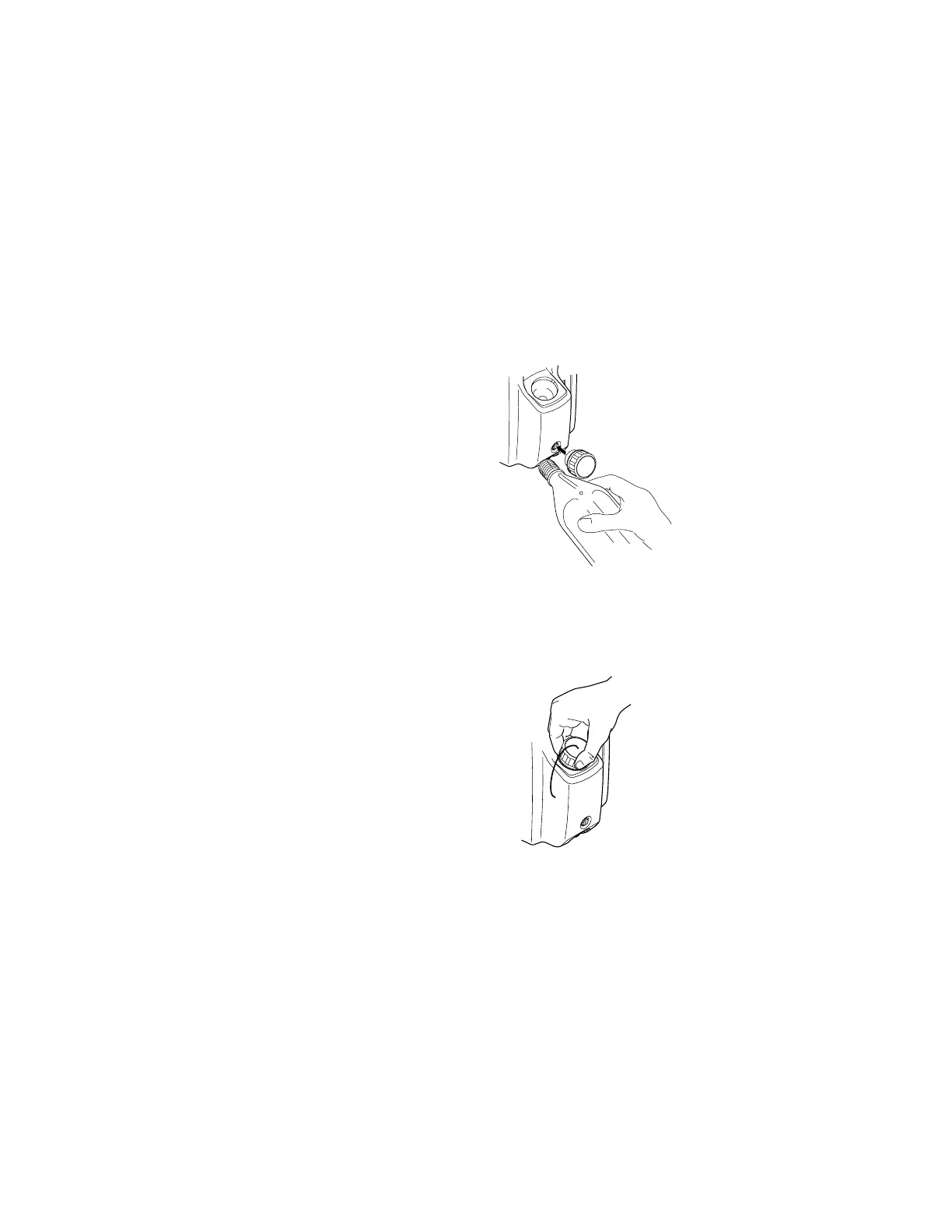

Figure 4-9 • Unscrewing the drain plug
Figure 4-10 • Replacing the filler cap
Step 2
Place the empty container opening
under the drain nozzle as shown in
Fig. 4-9.
Step 3
Unscrew the drain plug with the tool
attached to the filler cap. Drain the
vaporizer until empty.
Step 4
After draining, tighten the drain plug to
help minimize leaks.
Step 5
Replace and tighten the filler cap to
minimize leaks.
