the
carburettor
top
cover
assembly
Disconnect
the
choke
link
during
this
operation
5
Remove
the
three
retaining
screws
and
separate
the
carburettor
flange
from
the
main
body
6
The
carburettor
has
now
been
dismantled
into
its
three
major
components
namely
main
body
flange
and
top
cover
TO
CLEAN
PARTS
1
Clean
all
carburettor
components
in
petrol
or
cleaning
solvent
and
place
in
a
suitable
container
2
If
compressed
air
is
available
blow
each
component
clean
when
assembling
NOTE
Du
not
clean
jets
with
wire
drills
or
other
mechanical
means
as
orifices
may
become
enlarged
causing
too
rich
a
mixture
for
proper
perfomzance
3
Clean
away
any
carbon
deposits
that
may
have
accumulated
around
the
throttle
valves
4
Discard
all
used
gaskets
and
packings
5
Before
assembling
check
all
fuel
passages
by
blowing through
with
compressed
air
TO
SERVICE
MAIN
BODY
1
Remove
the
primary
and
secondary
main
air
bleeds
2
Remove
the
primary
and
secondary
emulsion
tubes
3
Remove
the
primary
slow
jet
4
On
1200
models
only
remove
the
secondary
slow
jet
5
Unscrew
the
two
plugs
to
gain
access
to
the
main
jets
and
then
remove
the
primary
and
secondary
main
jets
6
On
1200
models
remove
the
power
valve
7
Withdraw
the
accelerator
pump
plunger
invert
the
carburettor
body
and
remove
the
plunger
spring
and
check
ball
8
With
the
carburettor
body
still
inverted
allow
the
accelerator
pump
outlet
weight
to
become
dislodged
from
its
bore
9
Using
a
small
file
remove
the
peening
from
the
ends
of
the
high
speed
valve
retaining
screws
and
mark
the
valve
in
relation
to
the
carburettor
body
to
facilitate
correct
assembly
10
With a
suitable
screwdriver
remove
the
two
high
speed
valve
retaining
screws
and
withdraw
the
high
speed
valve
11
Remove
the
high
speed
valve
shaft
from
the
body
NOTE
Onlv
remove
the
high
speed
valve
and
shaft
from
the
carburettor
bodv
if
it
is
unserviceable
12
Now
that
the
carburettor
main
body
is
dismantled
check
all
components
for
serviceability
and
make
replacements
as
found
necessary

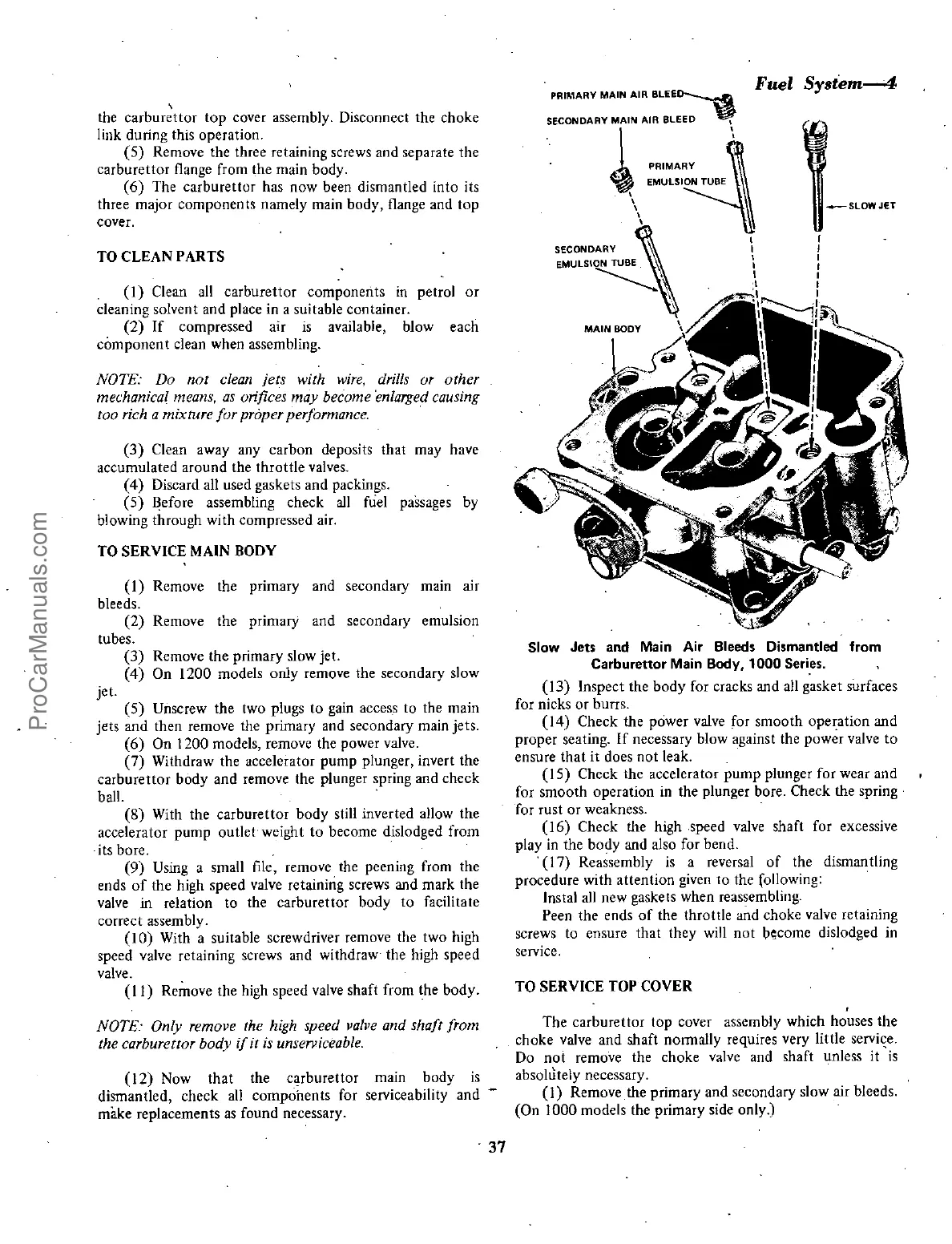

Fuel
System
4
l
sLOWJET
Slow
Jets
and
Main
Air
Bleeds
Dismantled
from
Carburettor
Main
Body
1000
Series
13
Inspect
the
body
for
cracks
and
all
gasket
surfaces
for
nicks
or
burrs
14
Check
the
power
valve
for
smooth
operation
and
proper
seating
If
necessary
blow
against
the
power
valve
to
ensure
that
it
does
not
leak
15
Check
the
accelerator
pump
plunger
for
wear
and
for
smooth
operation
in
the
plunger
bore
Check
the
spring
for
rust
or
weakness
16
Check
the
high
speed
valve
shaft
for
excessive
play
in
the
body
and
also
for
bend
17
Reassembly
is
a
reversal
of
the
dismantling
procedure
with
attention
given
to
the
following
Instal
all
new
gaskets
when
reassembling
Peen
the
ends
of
the
throttle
and
choke
valve
retaining
screws
to
ensure
that
they
will
not
b
comc
dislodged
in
service
TO
SERVICE
TOP
COVER
The
carburettor
top
cover
assembly
which
houses
the
choke
valve
and
shaft
normally
requires
very
little
service
Do
not
remove
the
choke
valve
and
shaft
unless
it
is
absolutely
necessary
1
Remove
the
primary
and
secondary
slow
air
bleeds
On
1000
models the
primary
side
only
37
