Unless
this
procedure
is
adhered
to
the
bearing
will
be
damaged
9
Position
the
end
of
the
withdrawal
lever
in
the
aperture
of
the
bellhousing
and
locate
the
opposite
end
of
the
lever
on
the
lever
pivot
pin
10
Lubricate
the
gearbox
input
shaft
bearing
retainer
sleeve
sparingly
with
a
high
melting
point
grease
and
instal
the
throw
out
bearing
and
bearing
hub
on
the
sleeve
11
Locate
the
ends
of
the
withdrawal
lever
return
spring
in
the
holes
in
the
lever
and
the
throw
out
bearing
hub
NOTE
Ensure
that
the
spring
ends
are
correctly
lucated
prior
to
installation
of
the
gearbox
and
bel
housing
assembly
12
Instal
the
rubber
dust
excluder
over
the
end
of
the
withdrawal
lever
and
ensure
that
it
is
correctly
seated
in
the
clutch
bellhousing
aperture
13
Instal
the
gearbox
and
bellhousing
assembly
in
the
vehicle
as
described
in
the
TRANSMISSION
section
of
this
manual
14
Adjust
the
clutch
withdrawal
lever
free
travel
to
specifications
as
detailed
under
ADJUSTMENTS
in
this
section
HYDRAULIC
CLUTCH
TO
RENEW
1200
SERIES
I
Remove
the
gearbox
and
clutch
bellhousing
assembly
as described
in the
TRANSMISSION
section
of
this
manual
2
Remove
the
rubber
dust
excluder
from
the
end
of
the
withdrawal
lever
and
the
aperture
in
the
bellhousing
3
Remove
the
return
spring
from
the
throw
out
bearing
hub
and
withdraw the
bearing
and
hub
assembly
4
Remove
the
withdrawal
lever
from
the
lever
pivot
pin
and
withdraw
the
lever
from
the
clutch
bellhousing
5
Using
a
suitable
puller
or
press
remove
the
throw
out
bearing
from
the
bearing
hub
6
Clean
the
components
excluding
the
bearing
in
a
suitable
solvent
and
allow
to
dry
7
Inspect
the
bearing
hub
withdrawal
lever
pivot
pin
bearing
return
spring
and
dust
excluder
fof
wear
damage
and
fatigue
Renew
worn
parts
and
damaged
components
where
necessary
8
Instal
the
new
throw
out
bearing
on
the
bearing
hub
so
that
the
thrust
face
of
the
bearing
is
facing
away
from
the
lever
end
of
the
hub
Clutch
7
Non
When
installing
the
bearing
on
the
bearing
hub
the
pressure
must
be
applied
to
the
inner
section
of
the
bean
ng
Unless
this
procedure
is
adhered
tu
the
bearing
will
be
damaged
9
Position
the
end
of
the
withdrawal
lever
in
the
bellhousing
aperture
and
locate
the
lever
on
the
lever
pivot
pin
10
Lobricate
the
gearbox
input
shaft
bearing
retainer
sleeve
sparingly
with
high
melting
point
grease
and
instal
the
throw
out
bearing
and
hub
assembly
on
the
gearbox
input
shaft
sleeve
11
Position
the
throw
out
bearing
return
spring
on
the
throw
out
bearing
ensuring
that
it
is
correctly
seated
on
the
bearing
and
in
the
bellhousing
12
Instal
the
rubber
dust
excluder
over
the
end
of
the
withdrawal
lever
and
ensure
that
it
is
correctly
seated
in
the
clutch
bellhousing
aperture
13
Instal
the
gearbox
and
bellhousing
assembly
in
the
vehicle
as
described
in
the
TRANSMISSION
section
of
this
manual
14
Adjust
the
clutch
withdrawal
lever
free
travel
to
specifications
as
detailed
under ADJUSTMENTS
in
this
section
O
BEARING
SLEEVE
I
LEVER
RETAINER
SPRING
PIVOT
BOLT

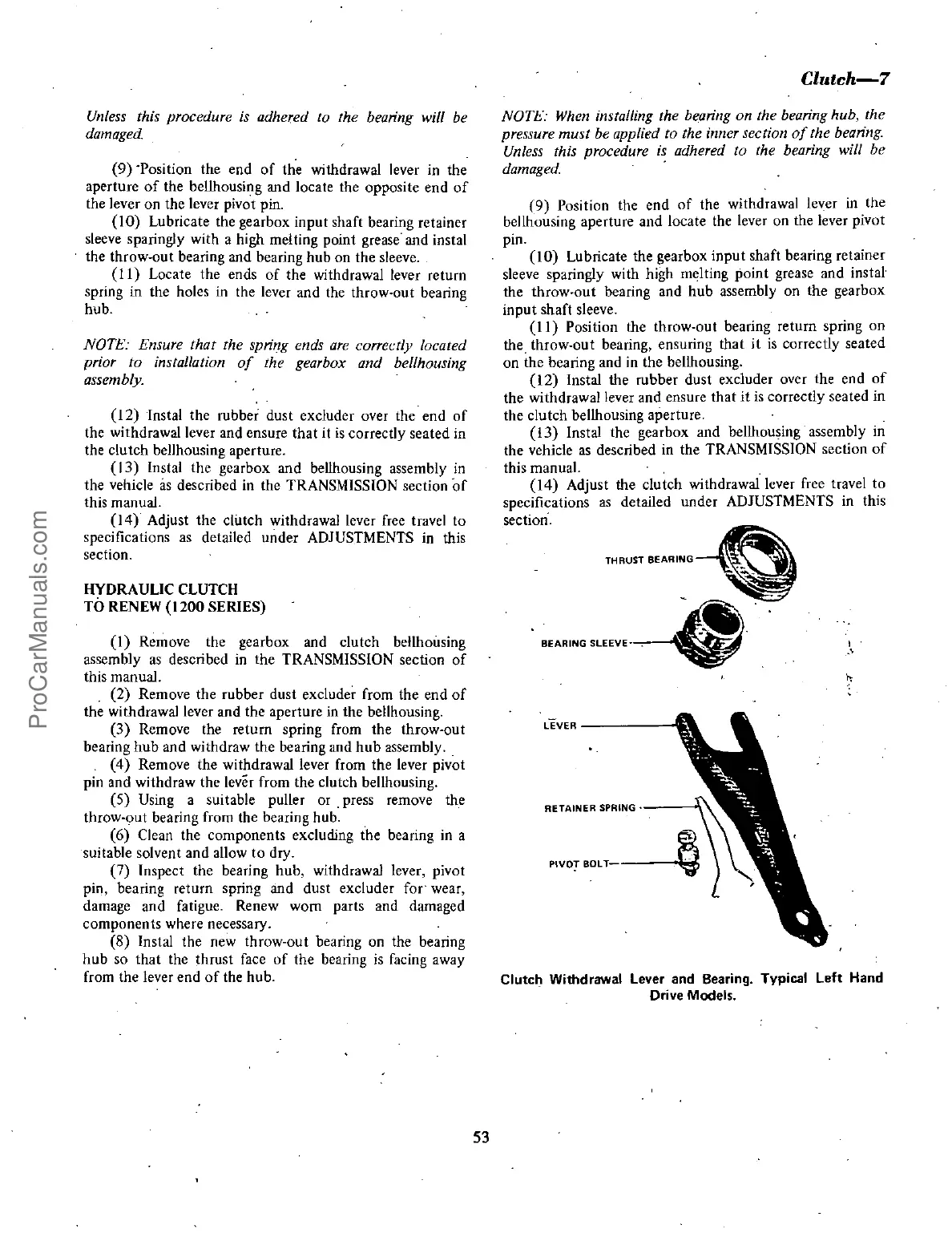

Clutch
Withdrawal
Lever
and
Bearing
Typical
Left
Hand
Drive
Models
53
