Datsun 1000 User Manual

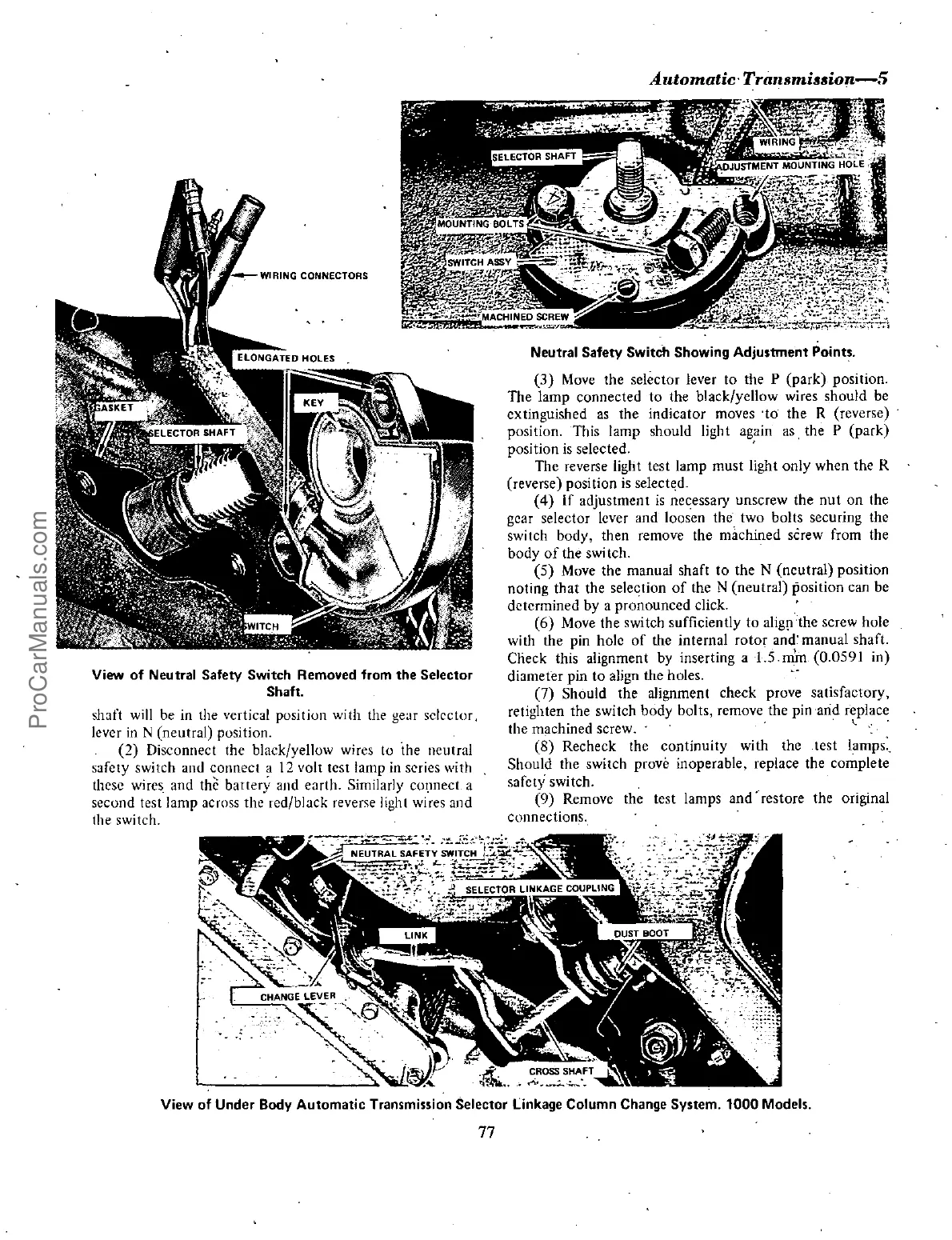

Automatic Trallsmission 5
WIRING CONNECTORS
View of Neutral
Safety
Switch Removed from the Selector
Shaft
shaft will be in the vertical
position
with the
gC lf
selector
lever in N
neutral
position
2 Disconnect the black
yellow
wires to the neutral
safety
switch
and
connect a
12
volt test
lamp
in series with
these wires and the
battery
and earth
Similarly
eOJ meet a
second test
lamp
across
the red black
reverse
light
wires and
the switch
Neutral
Safety
Switch
Showing Adjustment
Points
3 Move
the
selector lever to the P
park
position
The
lamp
connected
to the black
yellow
wires
should
be
extinguished
as
the indicator
moves
to the R
reverse
position
This
lamp
should
light again
as
the P
park
position
is
selected
The
reverse
light
test
lamp
must
light only
when the R
reverse
position
is select d
4
If
adjustment
is
necessary
unscrew the
nut on the
gear
selector lever
and
loosen
the two bolts
securing
the
switch
body
then remove
the
machined
screw from
the
body
of the swi
tch
5
Move
the
manual shaft
to the N
ncutral
position
noting
that
the
selection of the
N
neutral
position
can
be
determined
by
a
pronounced
click
6 Move the
switch
sufficiently
to
alig 1
the
screw hole
with the
pin
hole
of the internal rotor and manual shaft
Check
this
alignment by inserting
aU
mm
0
0591
in
diameter
pin
to
align
the holes
7
Should
the
alignment
check
prove
satisfactory
retighten
the
switch
body
bolts
remove the
pin
and
replace
the machined
screw
8 Recheck
the
continuity
with the test
lamps
Should
the switch
prove inoperable
replace
the
complete
safety
switch
9 Remove the test
lamps
and
restore
the
original
connections
View
of Under
Body
Automatic Transmission Selector
linkage
Column
Change
System
1000 Models
77
