ROTARY LASER LEVEL
USING REMOTE FOR DIAL IN GRADE

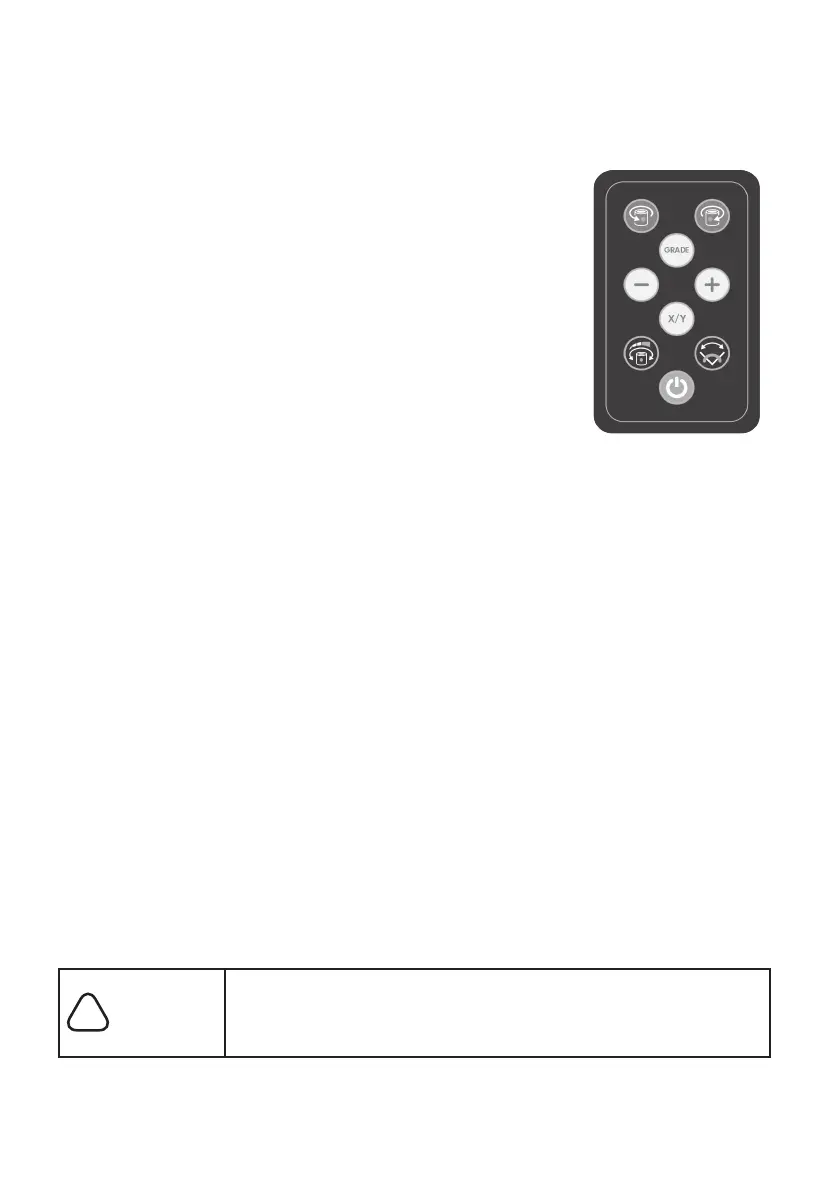

Your instrument comes with an digital wireless remote which allows you to set up dial-in grade
at a distance up to 100m.
Turn on the instrument and allow self-level. Turn on the remote and
allow them to sync.
To create a dial-in grade with the remote:
• Press “GRADE” button on the remote control to activate dial-in
grade. The remote screen will show the dial-in function for X and
Y axis with X axis selected.
• Setting desired grade by pressing button “+” and “-” on the
remote control. It’s designed to grade with increment of 0.1%.
• To grade Y axis, press “X/Y” once to switch to Y axis and adjust by
pressing “+” and “-” on the remote control.
• Once your desired grade is set up, press “GRADE” again. The laser
head will stop spinning for a few seconds and adjust its slope to
the grade then start spinning.
• Exit Grade Mode by pressing “GRADE” button again. The instrument will switch back to
Automatic Mode and begin self-levelling. Levelling icon on remote will start blinking while
it’s self-levelling.
For other operation controls such as RPM speed control, scanning mode and rotation control,
refer to previous section for details.
OPERATION - LASER DETECTOR
Your detector uses 4 x AA 1.5V batteries. Locate battery compartment at the back of the
detector and insert batteries according to the symbols and polarity.
Mounting the sta clamp to the detector via the 1/4” thread on the back.
• Switch the detector on by pressing the power button.
• The LCD screen will display the battery level, accuracy setting and speaker mode.
• Press button (L) to change between dierent accuracy settings.
• Move the detector into the path of the laser beam.
• Hold the detector upright for horizontal beams or rotate the detector 90° for vertical
beams.
• The direction arrows or level line on the LCD screen will indicate the position of the laser
beam. The detector will emit a constant beep once the level position has been located.
WARNING
If the product is used with accessories, for example masts, staves, poles, you
may increase the risk of being struck by lightning.
Do not operate the product in a thunderstorm.
!
