Connections

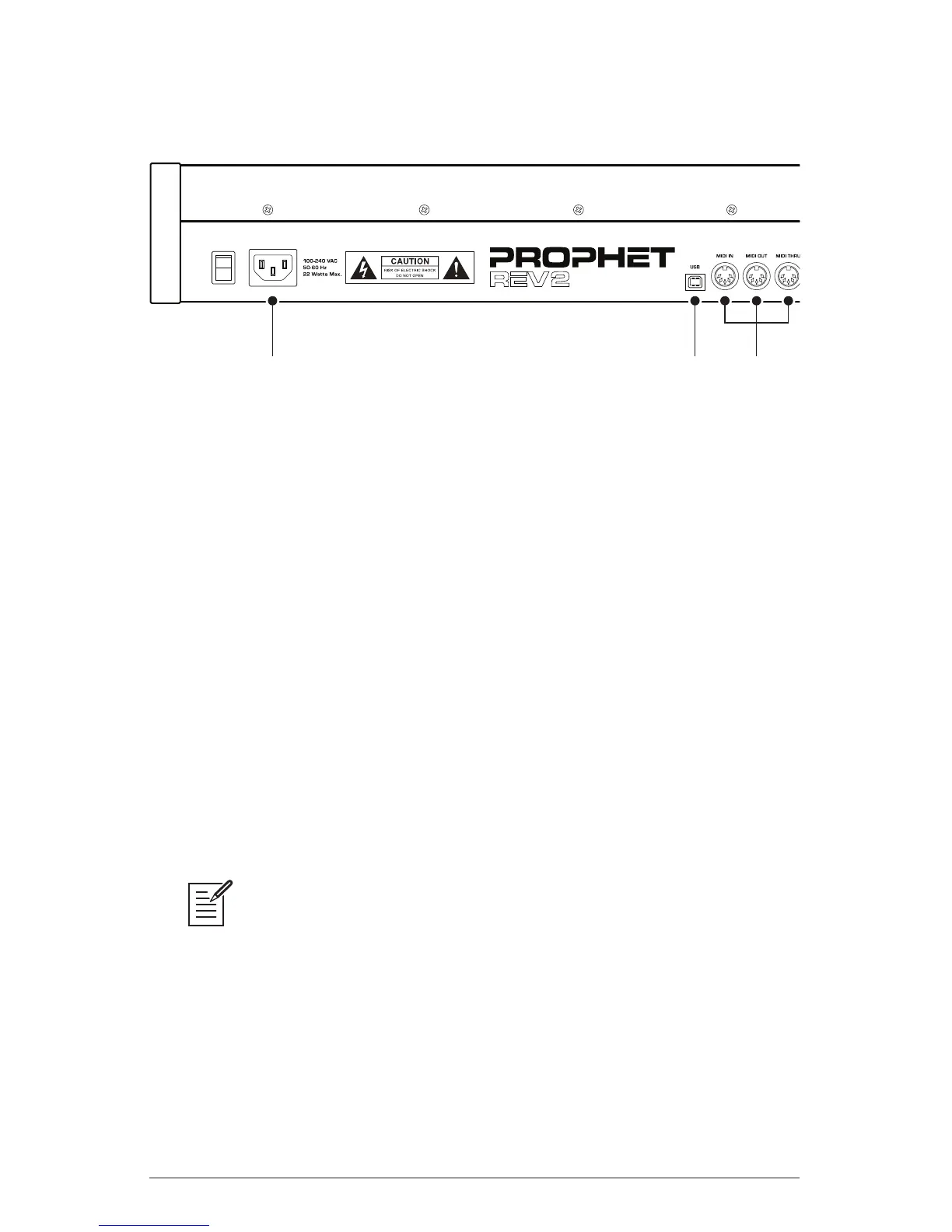

1. AC Power Connector—Accepts a standard, grounded IEC power
cord. Operates over a range of 100 to 240 volts and 50 to 60 Hz.
2. USB—For bidirectional MIDI communication with a computer. The
Prophet Rev2 is a Class Compliant USB device and does not require
additional drivers when used with Mac OS or Windows. See Using USB
on page 67 for more information.
3. MIDI In, Out, and Thru—Standard 5-pin MIDI DIN connectors.
4. Sequencer—Accepts a momentary, normally open or normally closed
footswitch to turn the sequencer or arpeggiator on and off. Alternatively, an
audio signal connected to this jack can be used to either control sequencer/
arpeggiator playback, or to gate the lter and amplier envelopes while
notes are held. See Pedal/CV on page 13 for more information about
choosing the appropriate mode for these behaviors.
Audio signals used to drive the arpeggiator/sequencer should not exceed 5
volts peak-to-peak.
5. Sustain—Accepts a momentary, normally open or normally closed
footswitch to control sustain.
