Flo w
Ove r 1m
0.5 m
Min
Foot Valve
(Not Supplied)
Flo w
Check Valve
BELOW GROUND WATER SOURCES
Whenever the installation position of
the pump is higher than 3ft above the
lowest water level, a foot valve must
be used on the end of the suction pipe
as illustrated in (A). Ensure that the
foot valve is at least 1
1
/
2
feet below
minimum water level.
9

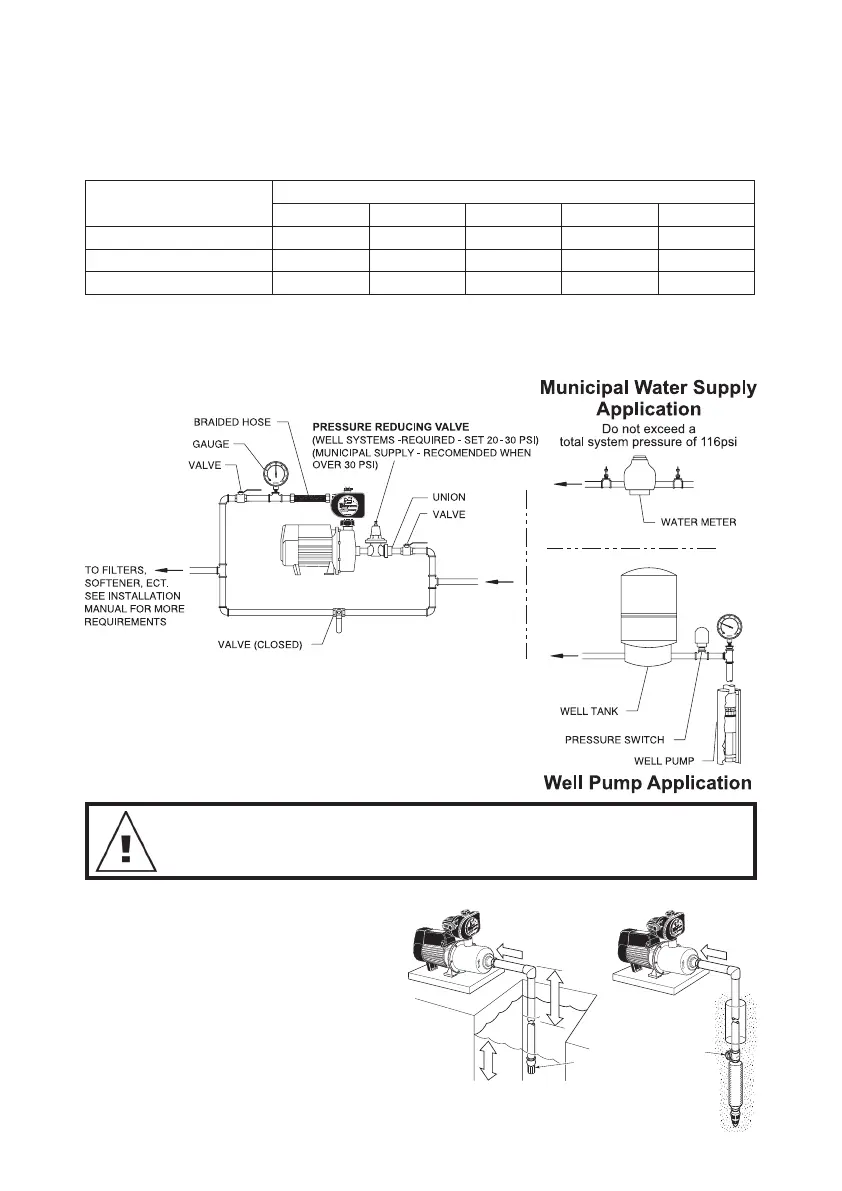

A pressure reducing valve is required on the suction side of the pump when
the incoming pressure is greater than shown on the table above. In some
areas, local codes restrict maximum allowable home pressures, and in those
cases the pressure reducing valve will need to be set to lower pressures.
Note: The maximum System Pressure should not exceed 100psi.
Local code limits for
home pressure
Pressure reducing valve setting (psi)
BT14-30 BT20-30 BT14-45 BT20-40 BT30-30
No limit 60psi 50psi 40psi 20psi 50psi
80psi 40psi 30psi 30psi N/A 30psi
70psi 30psi 20psi 20psi N/A 20psi
The chart above shows the applicable settings for the pressure reducing
valve.Davey Water Products Pty Ltd can not accept responsibility for loss or
damage resulting from incorrect or unauthorised installations.
Abrasive Materials
The pumping of abrasive materials will cause damage to the pressure
system which will then not be covered by the guarantee.
