Davey EcoSalt2 DES2-25E

30
SPARE PARTS

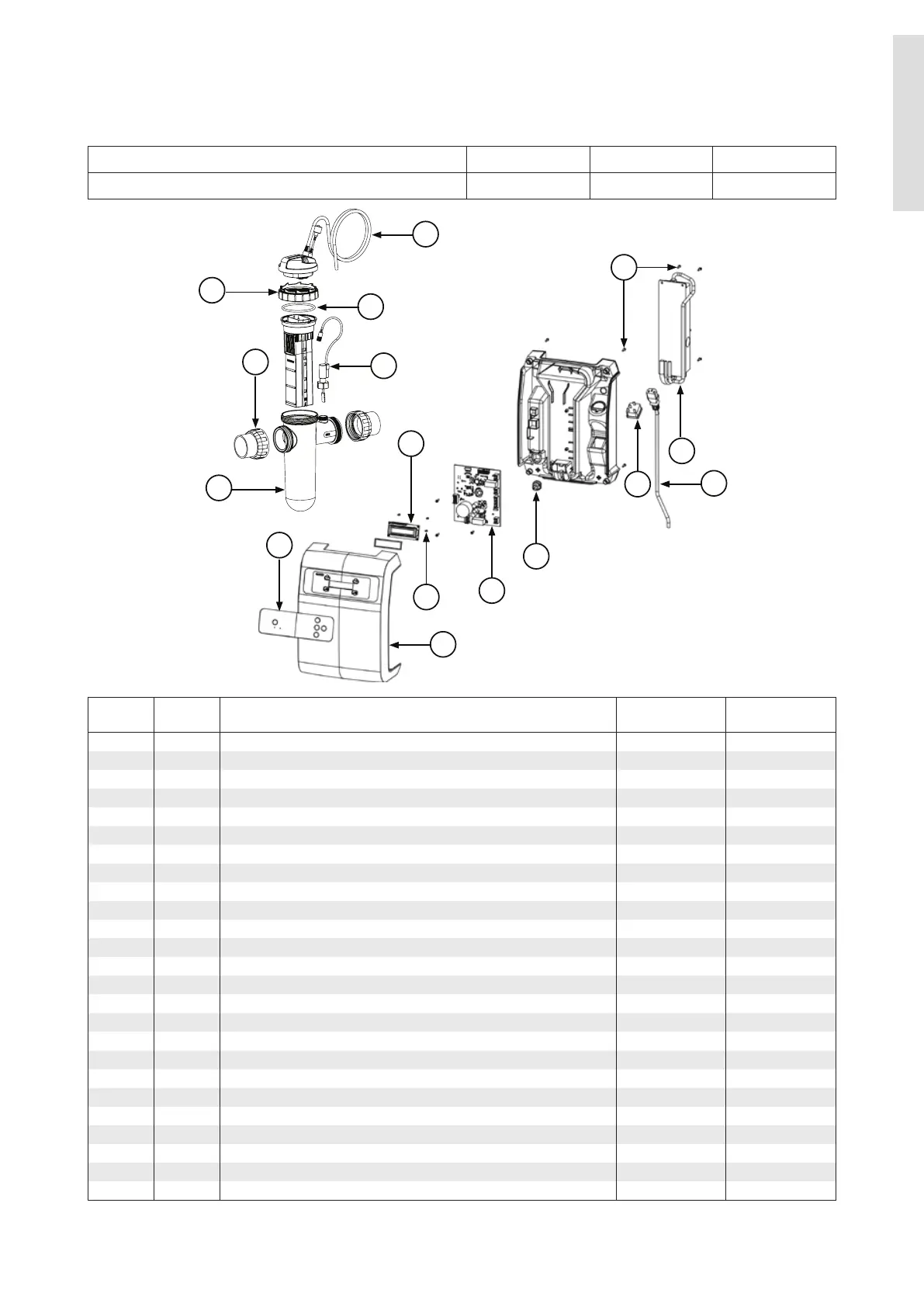

SPARE PARTS EXPLODED DIAGRAM
EcoSalt2
DES2-15E DES2-15EL
DES2-25E DES2-25EL DES2-35E
EcoSalt 2 DES2-15E DES2-15EL
DES2-25E DES2-25EL DES2-35E
ITEM NOTES DESCRIPTION
QTY
REQ’D PART NO.
LIST PRICE
(AUS $) UNIT
1 Cell Connection Plug Assy 1 33021 ea
2 Cell Locking Ring 1 16058 ea
3 O-ring - Cell Head 1 403377 ea
4 Paddle Switch 1 16102 ea
5 Barrel Union Assembly 2 48722B-1 ea
6 Cell Body 1 16056 ea
7 Screw 8 403367 ea
8 Power Supply DES2-15E models 1 403368 ea
8 Power Supply DES2-25E & DES2-35E models 1 403369 ea
9 Mains Loom 1 16073 ea
10 Power Cord 1 403371 ea
11 Gasket PCB 1 16076 ea
12 Bush Power Cable 1 403372 ea
13 PCB Assy Complete 1 33005C ea
14 PCB LCD & gasket 1 16046C ea
15 Screw LCD 4 403366 ea
16 Control Panel Decal 1 16047 ea
17 Front Casing 1 16042 ea
- Mounting Kit 1 33040 kit
- Blanking Cap 1 16057-1 ea
- O-ring - Blanking Cap 1 403377 ea
- Reducing Bush 2 403393 ea
7
11
14
5
16
17
10
1
3
4
8
2
6
15
13
12
9
ITEM NOTES DESCRIPTION
QTY
REQ’D PART NO.
1 Cell Connection Plug Assy 1 33021
2 Cell Locking Ring 1 16058
3 O-ring - Cell Head 1 403377
4 Paddle Switch 1 16102
5 Barrel Union Assembly 2 48722B-1
6 Cell Body 1 16056
7 Screw 8 403367
8 Power Supply DES2-15E (L) models 1 403368
8 Power Supply DES2-25E (L) & DES2-35E (L) models 1 403369
9 Mains Loom 1 16073
10 Power Cord 1 403371
12 Bush Power Cable 1 403372
13 PCB Assy DES2-15E 1 33005C-15ESP
13 PCB Assy DES2-15EL 1 33005C-15ELSP
13 PCB Assy DES2-25E 1 33005C-25ESP
13 PCB Assy DES2-25EL 1 33005C-25ELSP
13 PCB Assy DES2-25E 1 33005C-35ESP
14 PCB LCD & gasket 1 16046C
15 Screw LCD 4 403366
16 Control Panel Decal 1 16047
17 Front Casing 1 16042
– Mounting Kit 1 33040
– Blanking Cap 1 16057-1
– O-ring - Blanking Cap 1 403377
– Reducing Bush 2 403393
