PACKING LIST
Included with your PoolFresh system are the following items, please check the contents carefully prior to
installing the system:
1. Power Supply
2. Electrolytic Cell
3. 2 x Barrel Union Sets
4. Flow Switch
5. Blanking Cap Assembly
6. Earthing System Assembly
7. Mounting kit
Please note product specications are subject to change without notice. Please consult your Davey dealer if
you have any queries regarding the above.
IMPORTANT NOTICE: A means of full disconnection must be incorporated into the xed wiring in
accordance to local wiring rules.

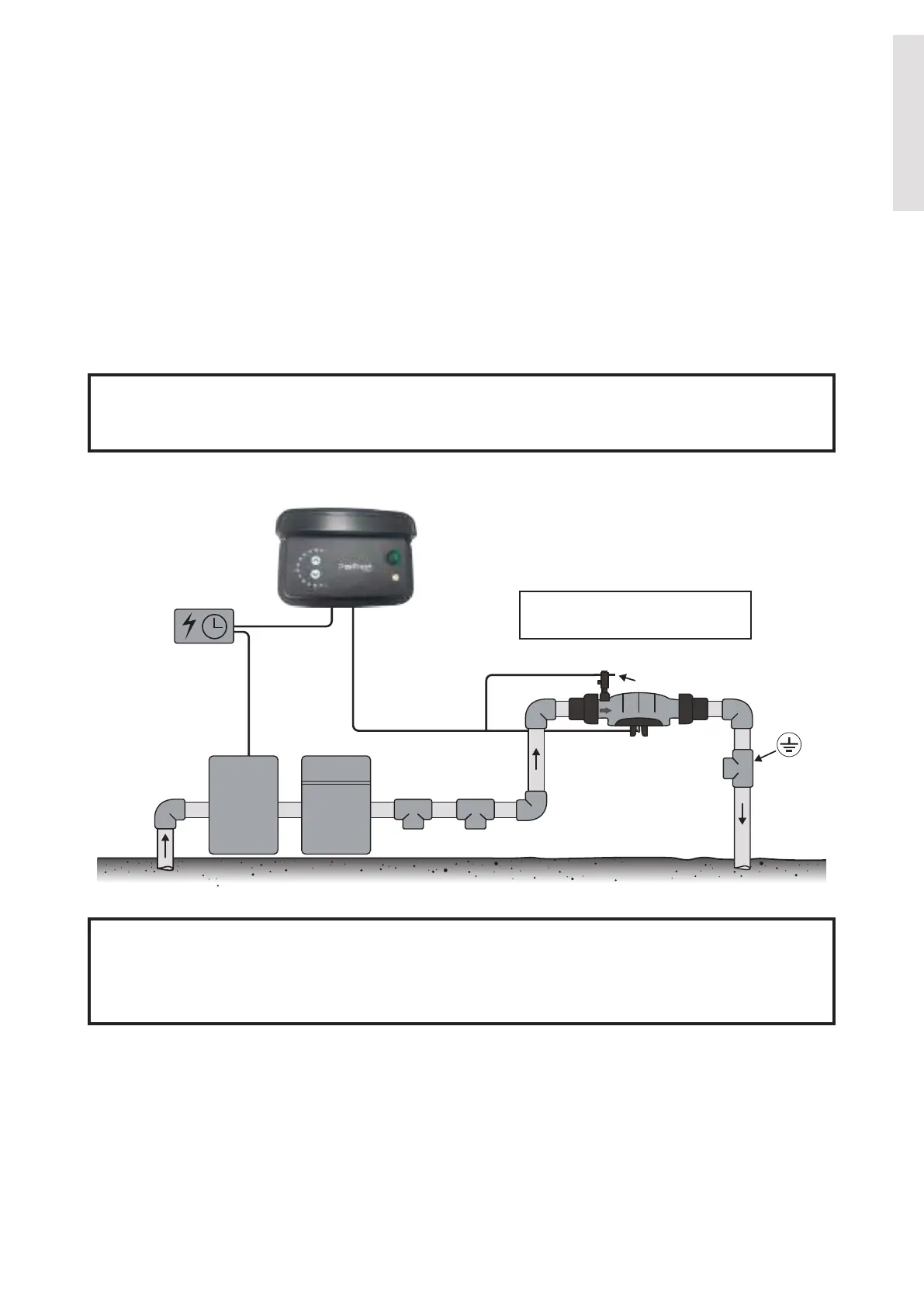

TYPICAL INSTALLATION
Locate cell after ALL other equipment
except earthing bolt
Return to pool lineSuction Line
PUMP FILTER
ACCESSORIES
IN-LINE CELL
FLOW SWITCH
POWER SUPPLY
230V
To achieve best efciency, the PoolFresh cell should be installed so turbulent water is limited as
much as possible. When installing a 90° elbow before the cell’s inlet barrel union, ensure there’s
equivalent to 5 x pipe diameter of straight pipe between the elbow and the union. That is, if the pipe
diameter is 50mm, straight pipe entering the barrel union should be no less than 250mm in length.
Isolation valves should also be installed no closer than 5 x pipe diameter from the inlet barrel union.
