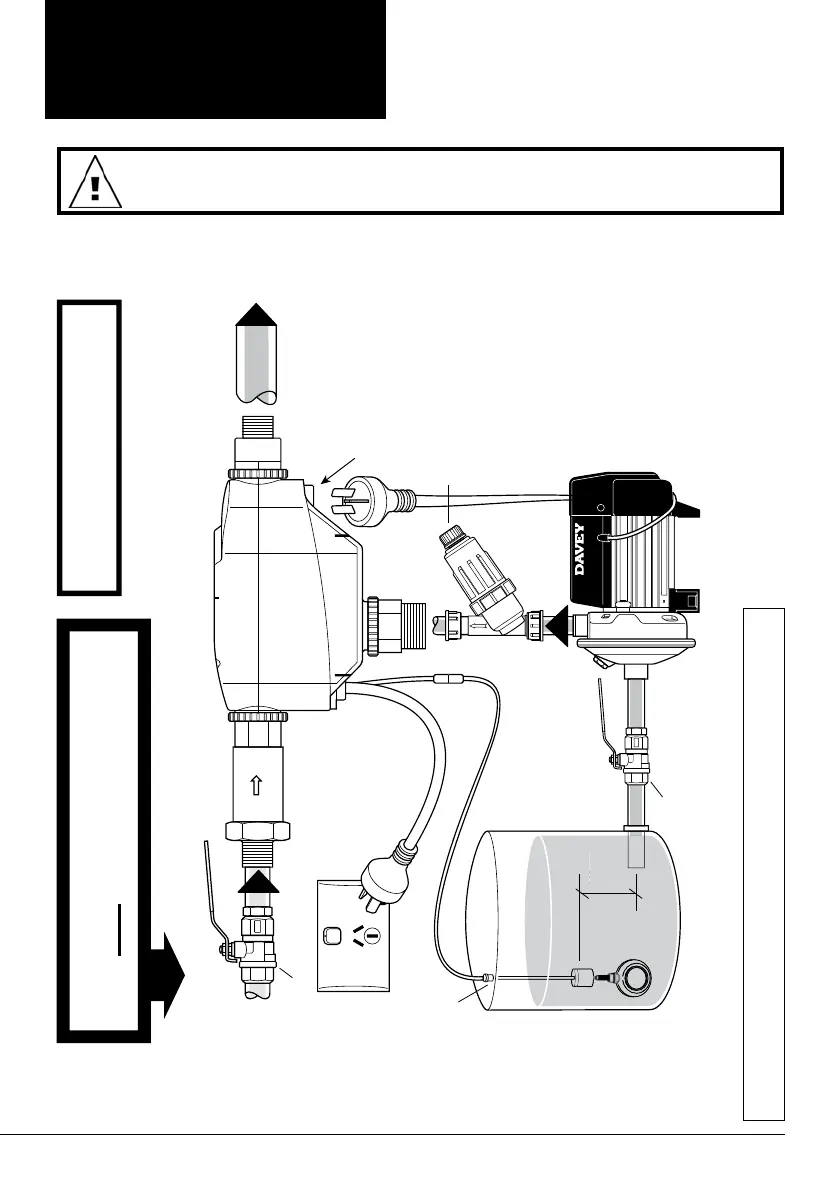

13
RAINWATER
SUPPLY
from discharge
of rainwater pump
Power to pump via
3 pin socket - plug the
rainwater pump in here.
1" BSP M
200mm
00m
TO TOILETS
AND/OR
LAUNDRY
(do not mix/cross-connect
with mains water supply)
* Pressure Limiting Valve
MAINS
WATER SUPPLY
3/4" BSP M
Incoming power
to RainBank
via 3 pin plug
3/4" BSP M
Stop valve
200 Micron ‘Y’ Strainer
recommended but not
supplied.
WHERE MAINS PRESSURE EXCEEDS 600kPa.
A PLV* MUST BE FITTED TO INLET!
RainBank MUST BE INSTALLED
HORIZONTALLY AS ILLUSTRATED.
Stop valve
20mm hole
NOTE: Australian Building Standards stipulate
incoming mains pressure should not exceed 500kPa.
PUMP OUTSIDE TANK
OPTION - CLOSE UP
WARNING: DO NOT FIT CHECK VALVES BETWEEN RAINBANK, PUMP AND
TANK, UNLESS PUMP IS ABOVE MAXIMUM WATER LEVEL OF TANK.
IMPORTANT: ALL PIPEWORK AND OUTLET FITTINGS FROM RAINBANK MUST BE LABELLED
TO AS/NZS 3500.1. TANK MUST HAVE ISOLATION VALVE FITTED. DO NOT CONNECT WITH
CRIMPED FITTINGS.
