15

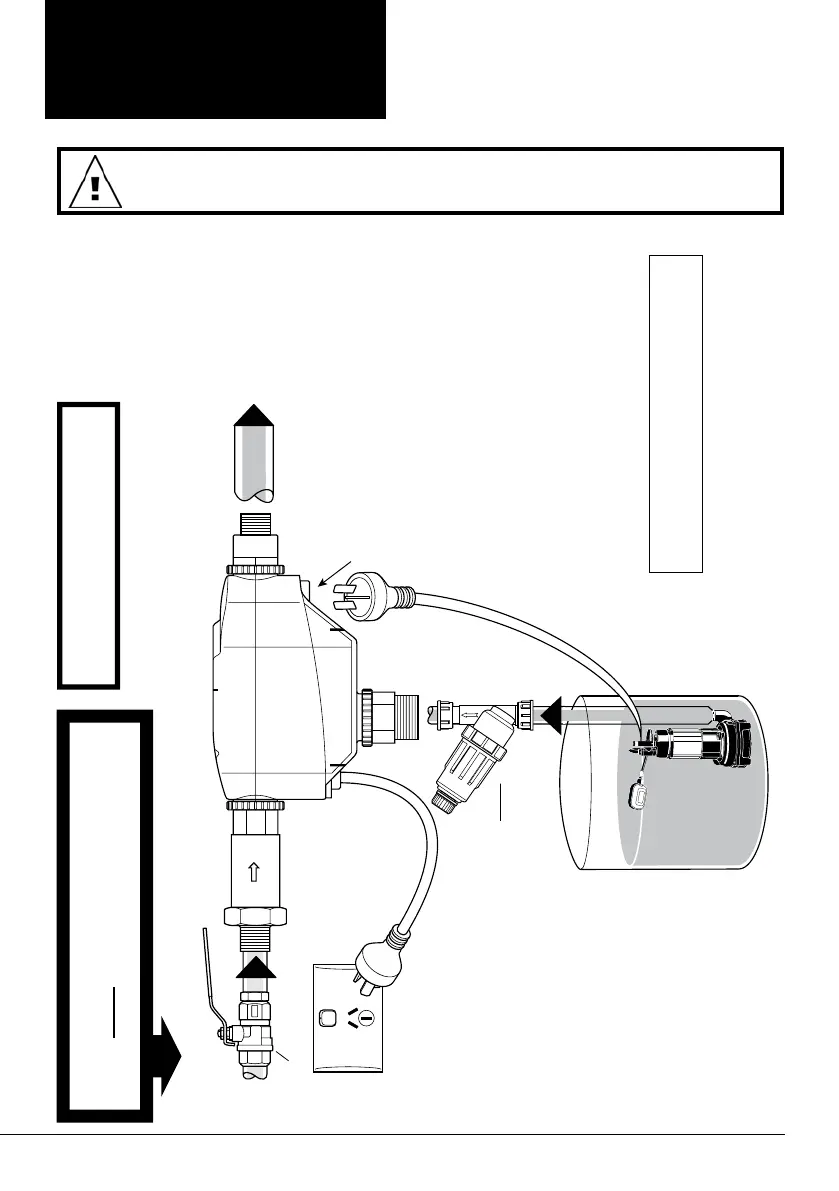

PUMP INSIDE TANK
OPTION - CLOSE UP
TO TOILETS
AND/OR
LAUNDRY
(do not mix/cross-connect
with mains water supply)
MAINS
WATER SUPPLY
3/4" BSP M
RAINWATER
SUPPLY
from discharge
of auto submersible
rainwater pump
Power to pump via
3 pin socket - plug the
rainwater pump in here.
Incoming power
to RainBank
®
via 3 pin plug
3/4" BSP M
1" BSP M
Stop valve
200 Micron
‘Y’ Strainer
* Pressure Limiting Valve
NOTE: Australian Building Standards stipulate
incoming mains pressure should not exceed 500kPa.
WHERE MAINS PRESSURE EXCEEDS 600kPa.
A PLV* MUST BE FITTED TO INLET!
RainBank MUST BE INSTALLED
HORIZONTALLY AS ILLUSTRATED.
WARNING: DO NOT INSTALL CHECK
VALVES BETWEEN PUMP AND RAINBANK.
IMPORTANT: ALL PIPEWORK AND OUTLET FITTINGS FROM RAINBANK MUST BE LABELLED
TO AS/NZS 3500.1. DO NOT CONNECT WITH CRIMPED FITTINGS.
To Next Page
