5
Attaching the Handle to the
Vacuum
NOTE: Do not plug in the vacuum until
it is completely assembled.
The vacuum cleaner handle is packed
as a separate component that requires
assembly.

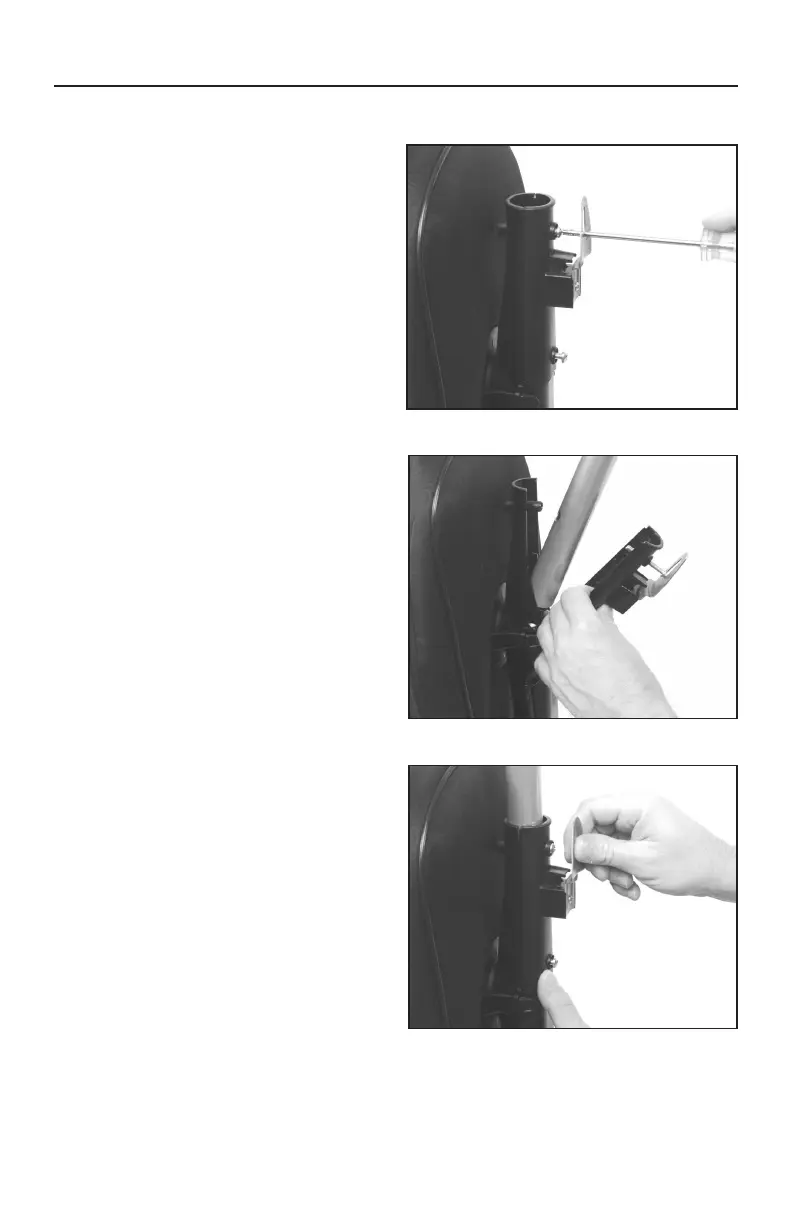

• Release the handle bracket from the
handle tube by removing the two
screws (Fig. 1).
• Place handle onto the handle tube,
aligning holes with pegs (Fig. 2).
• Place the handle bracket back into
position (Fig. 3).
• Secure with two screws removed in
step 1.
Fig. 1
Fig. 2
Fig. 3
ASSEMBLING THE VACUUM
