Davis Instruments Vantage VUE User Manual

6

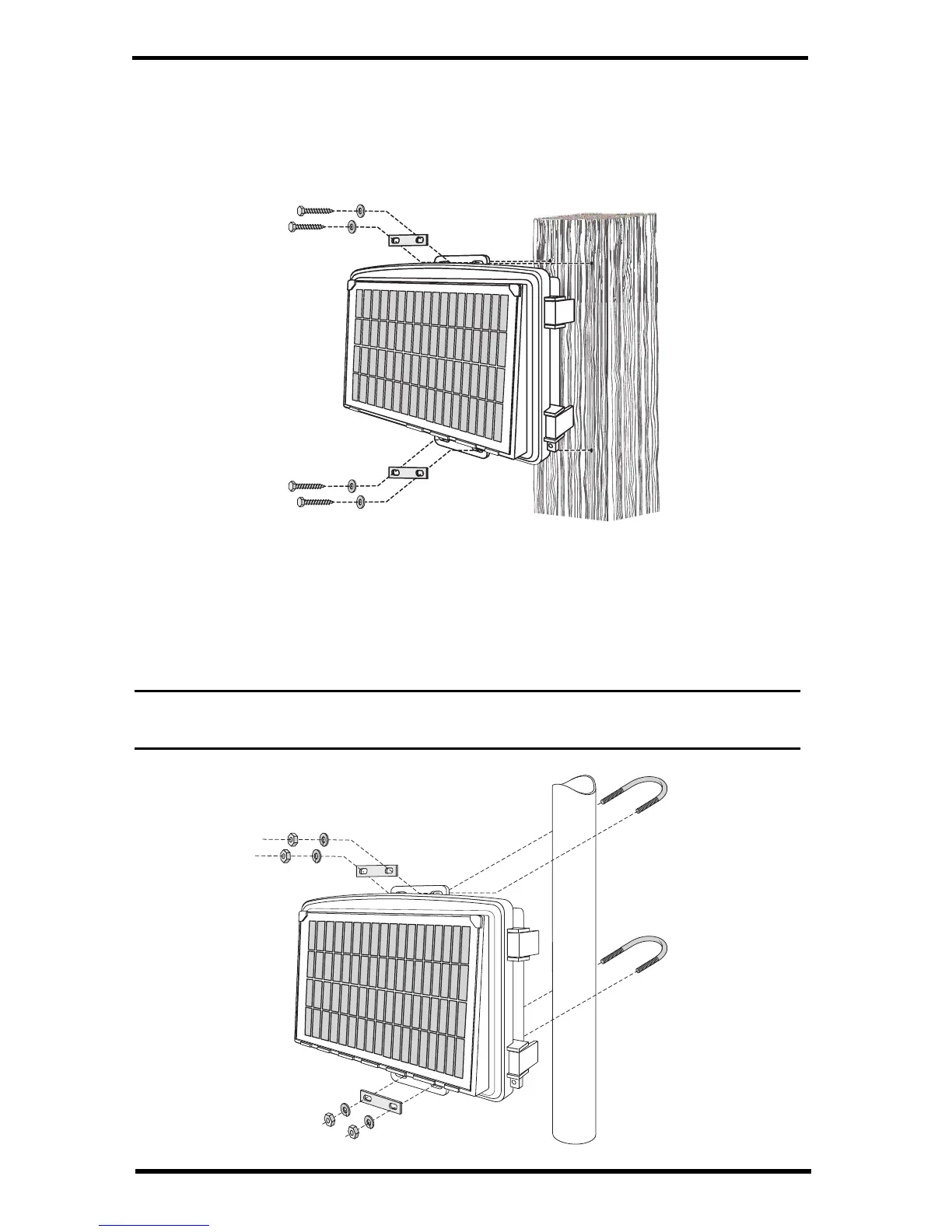

Mounting on a Flat Surface
Attach the shelter to the mounting surface in the desired location using the lag
screws and backing plates as shown below. Use a pencil or a center-punch to mark
the location of the pilot hole.
Mounting On a Pipe
Mount the Vantage Connect onto a pipe with an outside diameter of 0.84'' to 1.84''
(21 mm to 27 mm) using the U-bolts, backing plates, washers, and hex nuts
provided.
Note: For mounting on larger diameter pipes, the housing can accommodate U-bolts with
5/6'' (8 mm) threads for pipes up to 2.40'' (61 mm) outside diameter (not provided).

Davis Instruments Vantage VUE Specifications

General

Console Display Type	LCD
Wind Direction Range	0 to 360°
Wind Direction Accuracy	±3°
Temperature Accuracy	±1°F (±0.5°C)
Humidity Accuracy	±3%
Solar Radiation Range	0 to 1800 W/m²
Solar Radiation Accuracy	±5%
UV Index Range	0 to 16
Wireless Transmission Range	1000 feet (300 meters)
Update Interval	2.5 seconds
Temperature Range	-40°F to +150°F (-40°C to +65°C)
Humidity Range	0 to 100% RH
Rain Collector Resolution	0.01 inches (0.2 mm)
Wind Direction Resolution	1°
Power Source (Integrated Sensor Suite)	Solar panel with battery backup
Power Source (Console)	AC adapter or 3 C batteries
Wind Speed Accuracy	±2 mph (±3 kph) or ±5%, whichever is greater
Rainfall Accuracy	±4%
Operating Temperature	-40°F to +140°F (-40°C to +60°C)
Wind Speed Range	0 to 150 mph (0 to 241 km/h, 0 to 67 m/s)
