9
Check the Factory-Installed Sensor Connections
1. Verify that the rain collector and temperature/humidity sensor cables are plugged
into the receptacles labeled RAIN and TEMP/HUM on the sensor interface.
2. If your sensor suite includes UV and/or solar radiation sensors, verify that the
sensor cables are plugged into the receptacles labeled UV and SUN on the sensor
interface.
Connect the Anemometer Cable to the Sensor Interface
Note: The anemometer comes with 40 feet (12 meters) of cable to allow for mounting the
anemometer separately from the rain collector and other sensors. The cable is coiled
and secured at the factory with enough cable unwound from the coil to allow you to
work with it and to allow the anemometer to be mounted on the same pole as the rain
collector.
1. Remove the protective cap from the RJ jack on the anemometer cable.

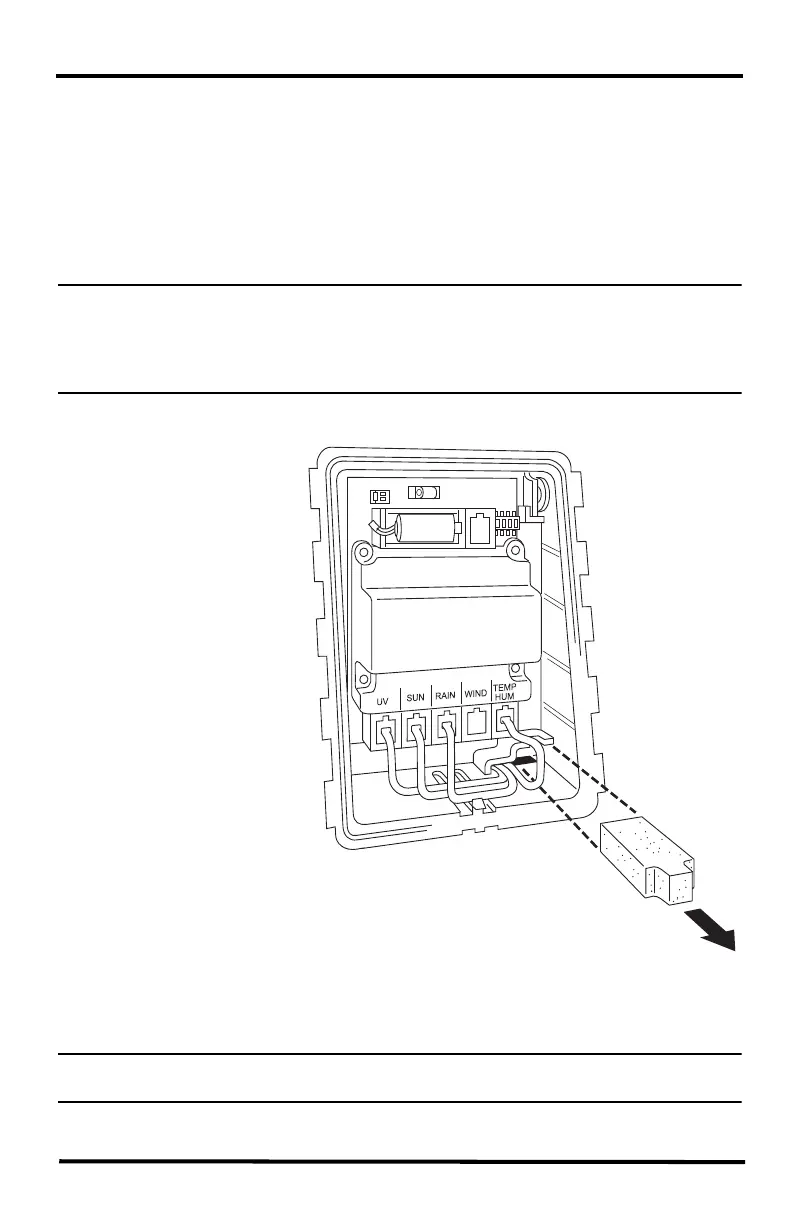

2. Pull the foam insert
out of cable access
port and set the foam
insert aside.
3. Insert the anemometer
cable end into the
cable access port from
beneath the box.
4. Slide the cable
through the cable
access port with the
connector lever down.
5. Firmly insert the end
of the anemometer
cable into the
connector labeled
WIND. The lever
clicks into place.
6. Firmly insert the foam
in between the cables
and at the top of the
cable access port,
taking care to ensure
that the foam seals the
access port entirely, leaving no holes or gaps large enough for weather or insects.
You may have to stack the cables to allow the foam to fit.
Note: If you are assembling a cabled station, wait to reinsert the foam until cable assembly is
complete. See “Cabled Sensor Suite Assembly” on page 11.
Foam
Insert
Sensor
Interface
Note: Only Plus models have UV and
solar cables already attached.
