4,8 x 50 mm

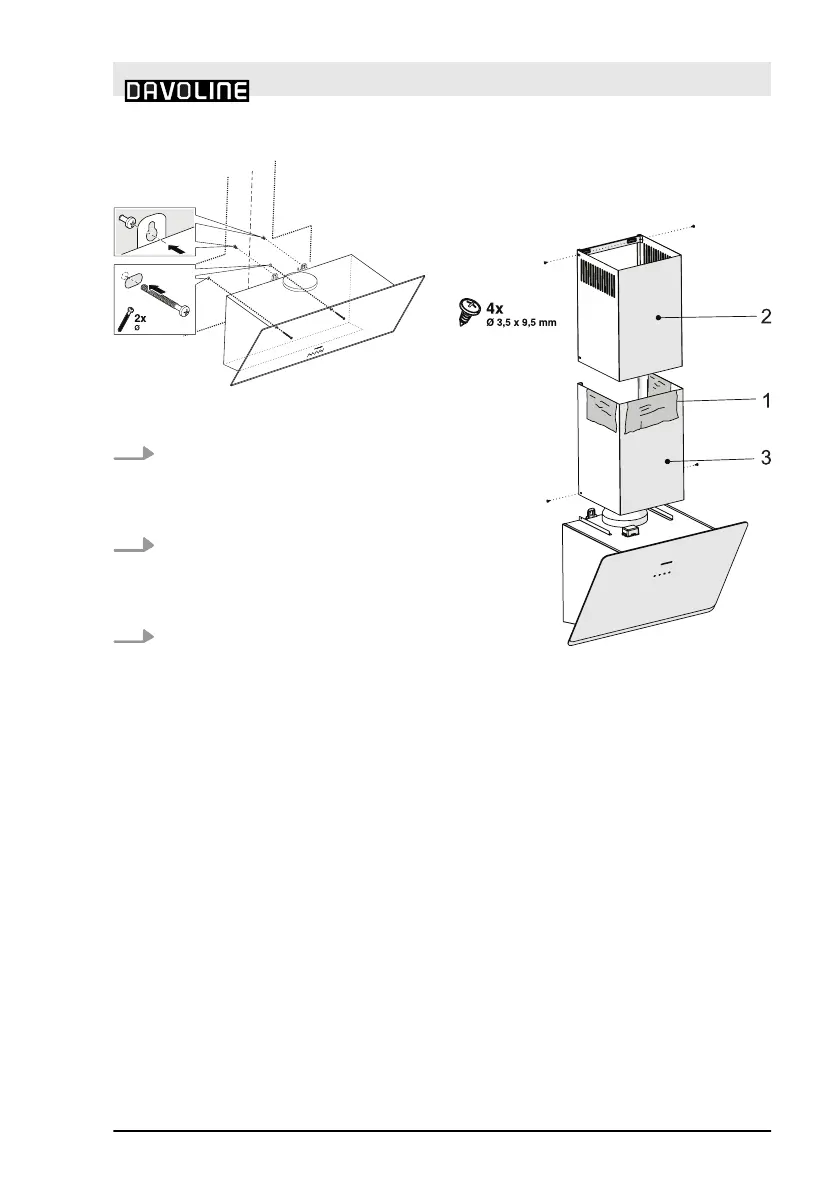

Fig. 13
1.
Hold the appliance by its body
and place it on the suspension
screws on the wall and tighten
the screws (Fig. 13).
2.
Fix the appliance with 4.8x50
screws through the mounting
hole on the interior of the appli-
ance (Fig. 13).
3.
Insert the appliance aluminium
oil filter.
If the appliance will be used
without a carbon filter, mount the
air discharge pipe.
9.1 Installation of the
Sheet Metal Flue
Fig. 14
Installing Air Discharge Connection
n Connect one end of the air dis-
charge pipe directly to the air dis-
charge area.
n Mount the other end of the air dis-
charge pipe on the air discharge
on the appliance.
n Insulate the connection locations
as applicable.
Assembly of Sheet Metal Fuels
ASSEMBLY OF PRODUCT
Installation of the Sheet Metal Flue
