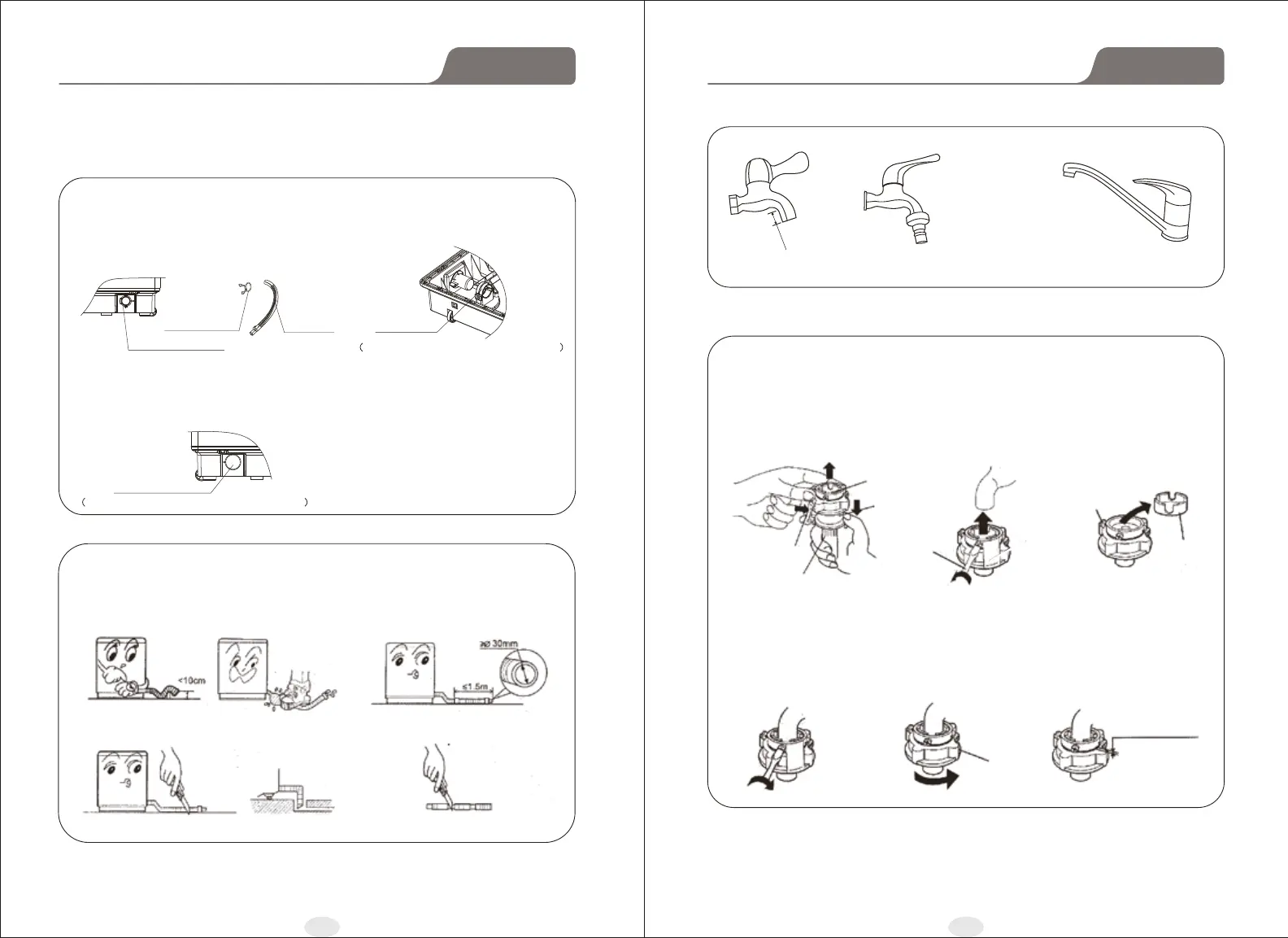

Water inlet installation
>10mm
Lock lever
Inlet hose
Inlet hose connector
Slider
Screwdriver
Bolt
Bushing
Before twisting, about 4mm
After twisting, less than 2mm
Nut
Illustration 1
Illustration 2
Illustration 3
Illustration 6
Illustration 5
Illustration 4
Tap selection
Suitable tap
Unsuitable tap
The front end should be longer than 10mm.
The tap exit end face should be at and smooth, if not, le it to avoid leakage.
Connect the inlet hose connector with the tap
1. Press the lower end of the lock lever and push down the slider. Take off the inlet hose
connector from the inlet hose, see illustration 1.
2. Loosen the four bolts on the inlet hose connector till the tap can be accessed. Then
set the inlet hose connector to the tap, see illustration 2. (If the tap caliber is too large and
could not t the inlet hose end, unscrew the four bolts and take out the bushing. The tap exit
end must be at, otherwise it will leak, see illustration 3).
3. Fasten the four bolts in the inlet hose connector evenly, see illustration 4.
4. Twist the fastening nut as the illustration, see illustration 5.
Remark: Before twisting the nut, the threading should be about 4mm above the upper surface of the nut. After
twisting, the threading becomes less than 2mm
above the upper surface of the nut, see illustration 6.
Before using
How to use drainpipe
Water drainage
The drain hose should drain smoothly.
1. The height of the drain hose should be less
than 10cm, otherwise the drainage will not be
smooth and would need a long time to drain. The machine
may stop, while working.
2. Do not step on or press the drain hose.
4. Purchase a proper hose, if you need an additional one.
Its diameter should not be less than 30mm and the length
should not exceed 1.5m.
A B
3. Cut the drain hose, if it is too long. Cut the front end of the
hose slantingly to make drainage smoothly.
How to change the direction of the drainpipe
1. Take off the drainpipe and its clip from the connector.
Put a soft mat on the oor & make the washing machine
front side down. Now, gently
demount the screws on the
back cover with a screwdriver
and take it out. Demount
one screw from the drainpipe connector (on the right side of
the washing machine) & loosen it.
3. With proper force, take down the drainpipe gate stopper
on the left side of the washing machine. The drainpipe gate
stopper is xed on the washing machine base with two
clips. Please see the xing type from the place of
back cover opening.
2. Extrude the drainpipe with proper force
and take out the drainpipe hoop (on right of the
washing machine). Loosen the inner
drainpipe.
4. Pull the inner drainpipe to another side.
Please do not make any distortion in the
inner pipe; as per the foregoing description,
x inner drainpipe with a drainpipe hoop.
With one screw, x drainpipe connector
and install the drainpipe gate stopper to
another side. Make the washing machine
stand gently and x the back cover with
a screw. Now, install the drainpipe and
the drainpipe clip into the drainpipe connector.
Install drainpipe
Set drainpipe clip into the drainpipe to above 2-3cm (from the drainpipe end without pothook).
Now, install the drainpipe into the right drainpipe connector and x the drainpipe
and the drainpipe connector with the clip. After that, put the drainpipe clip on the cabinet.
Drainpipe hoop
Drainpipe connector
Drainpipe
Drainpipe clip
(Section sketch map for washing machine right side)
Section sketch map inside washing machine
Drainpipe gate stopper
Section sketch map for washing machine left side
Before using
,
If the additional drain hose is too long,
cut some at A or B point.
