CONNECTING THE 160XT TO YOUR SYSTEM
even enters the signal input. This will suppress the program material pre¬
ceding this loud passage. The 160XT will then begin to release (recover
from compression) before the loud passage has ended.
IN
DETECTOR
' IN
AUDIO OUT
160XT

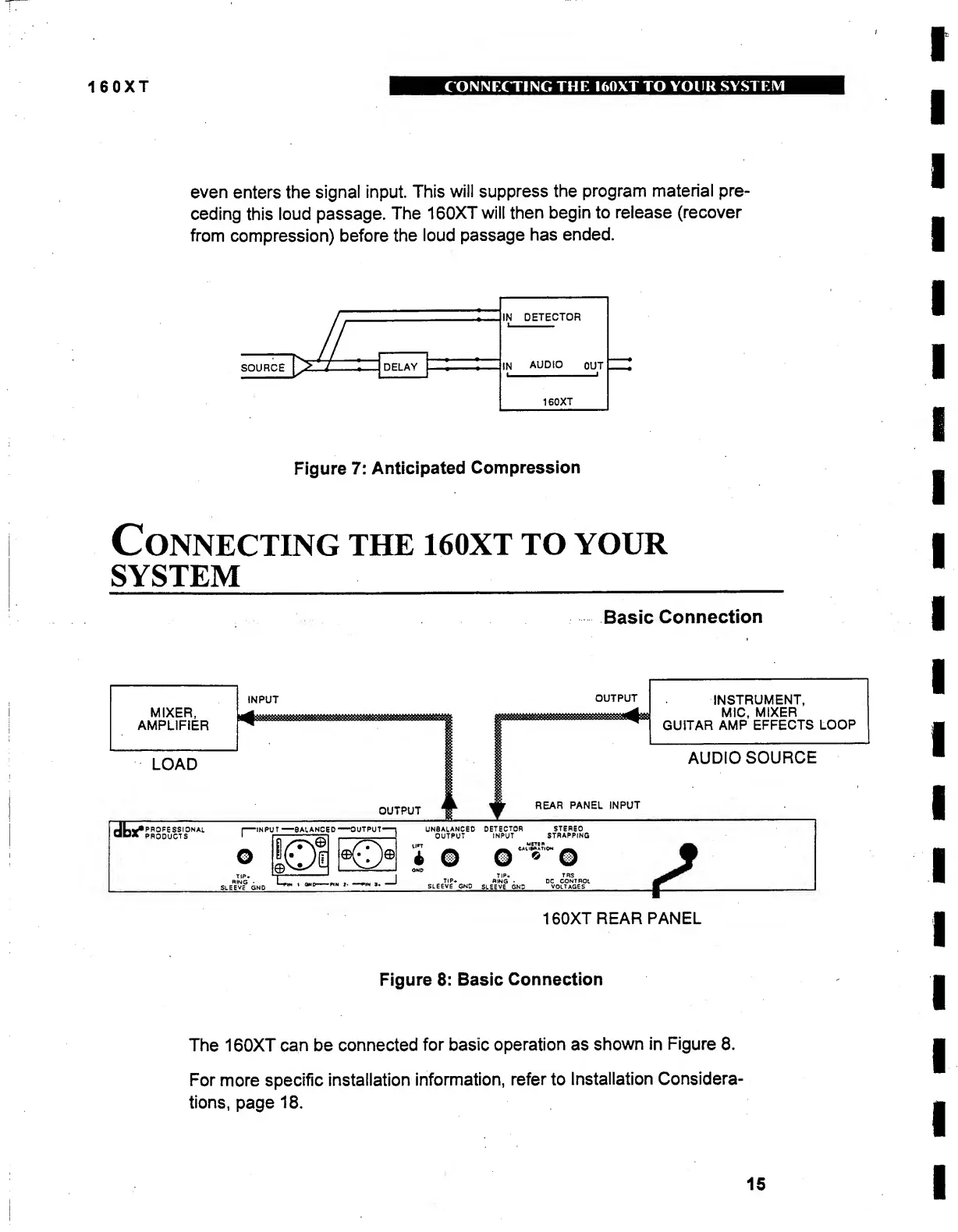

Figure 7: Anticipated Compression
Connecting the i6oxt to your
system
Basic Connection
Figure 8: Basic Connection
The 160XT can be connected for basic operation as shown in Figure 8.
For more specific installation information, refer to Installation Considera¬
tions, page 18.
