dbx 363X - Rear Panel Connections

Rear
Panel

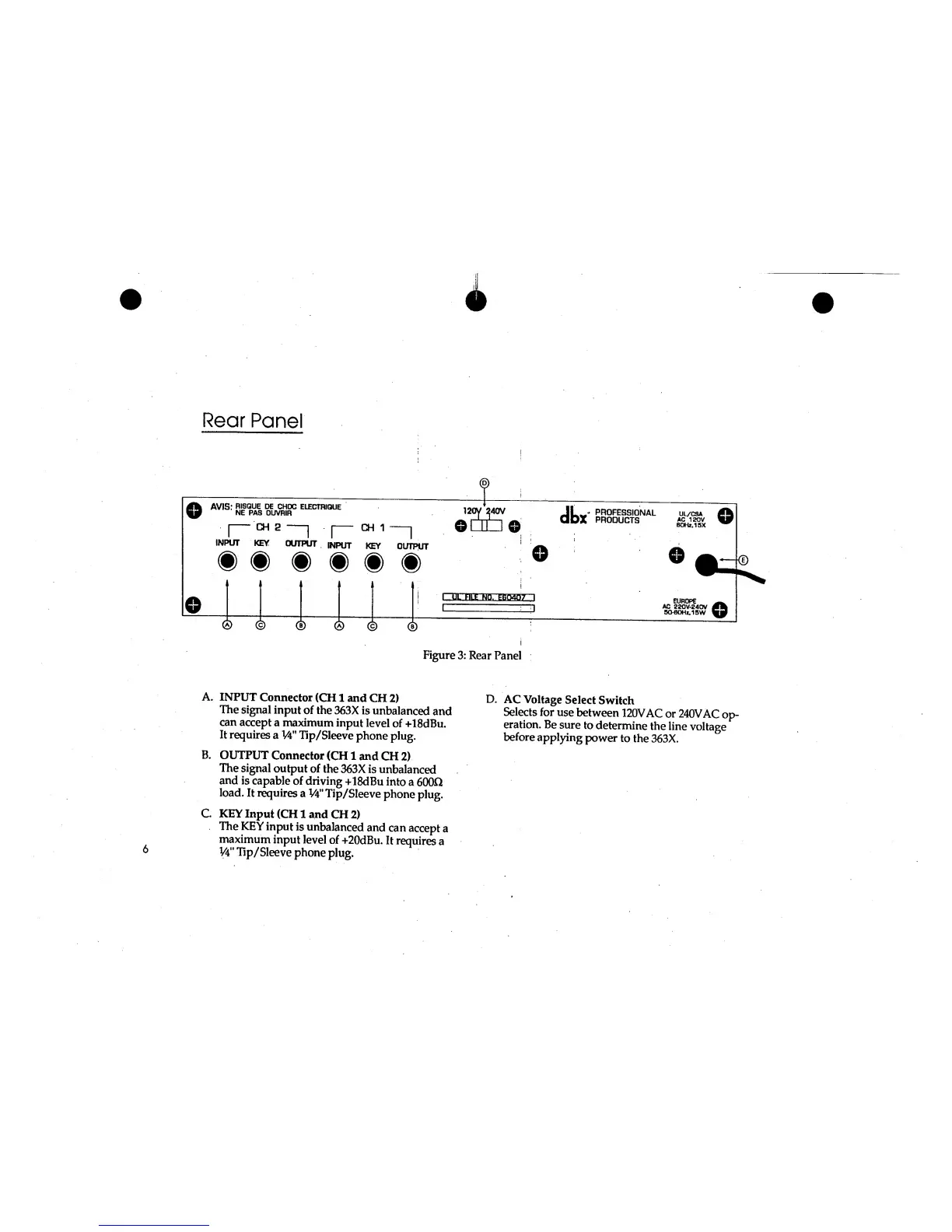

Figure
3:
Rear
Panel
A.
INPUT
Connector
(CHI
and
CH
2)
The
signal
input
of
the
363X
is
unbalanced
and
can
accept
a maximum
input
level
of
+18dBu.
It requires
a W
Hp/Sleeve
phone
plug.
B.
OUTPUT
Connector
(CH 1
and
CH
2)
The
signal
output of
the
363X
is
unbalanced
and
is
capable
of driving
+18dBu
into
a
6000
load.
It requires
a
WTip/Sleeve
phone
plug.
C. KEY
Input
(CHI and
CH
2)
The
KEY
input
is
unbalanced
and
can
accept
a
maximum
input
level
of
+20dBu.
It
requires
a
W
Tip
/Sleeve
phone
plug.
D.
AC
Voltage
Select
Switch
Selects for
use
between
120V
AC
or
240V
AC op-
eration.
Be
sure
to
determine
the
line
voltage
before
applying
power
to
the
363X.
