External Sidechain and the Digital Meters
The DDP’s external sidechain path offers you the ability to use other processors in the sidechain path. The digital

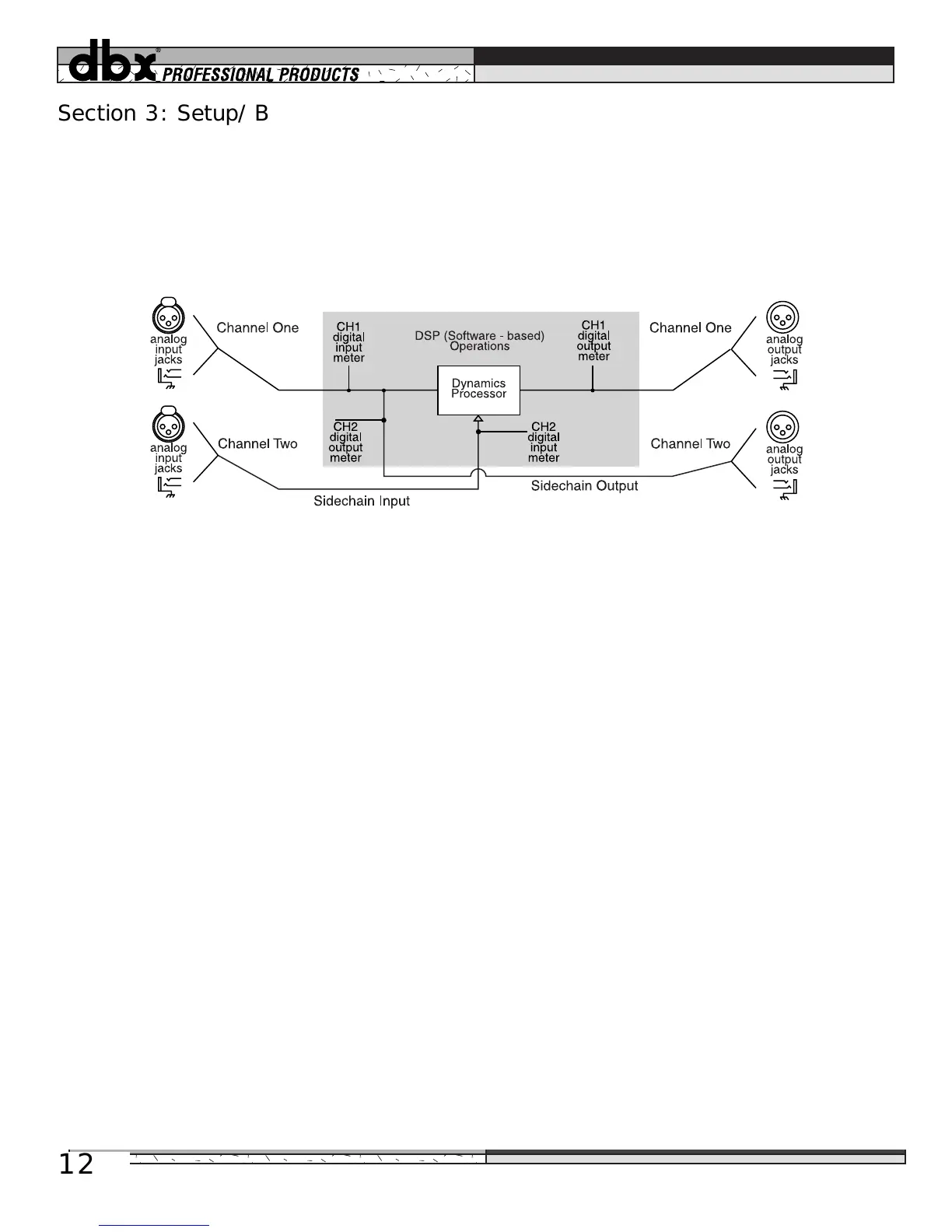

meters give you comprehensive feedback for ease of setup. Note in figure 12 above where the metering points
are for the digital meters when the DDP is in external sidechain mode. The Channel One meters will be showing
signal whether or not there is signal being passed through the sidechain. The Channel Two meters also show on
the way to the sidechain device as well as coming back form the device. When you press the Bypass button in
sidechain mode, both input meters will continue to operate, allowing you to see levels while bypassed.
There are also six different mono chains available to any dual mono program on the DDP. Three have in-line 3-
band parametric EQ and three have sidechain EQ. They are listed on the following page:
