Signal Flow
The following simple illustrations show how audio signal flows through the DDP, and how the LCD display
works. They will help you to understand where the DDP’s metering points are located, as well as identify the var-
ious elements of the LCD display.
,,,,,yyyyy
,,,,,yyyyy
4
Section 2: The DDP Tour

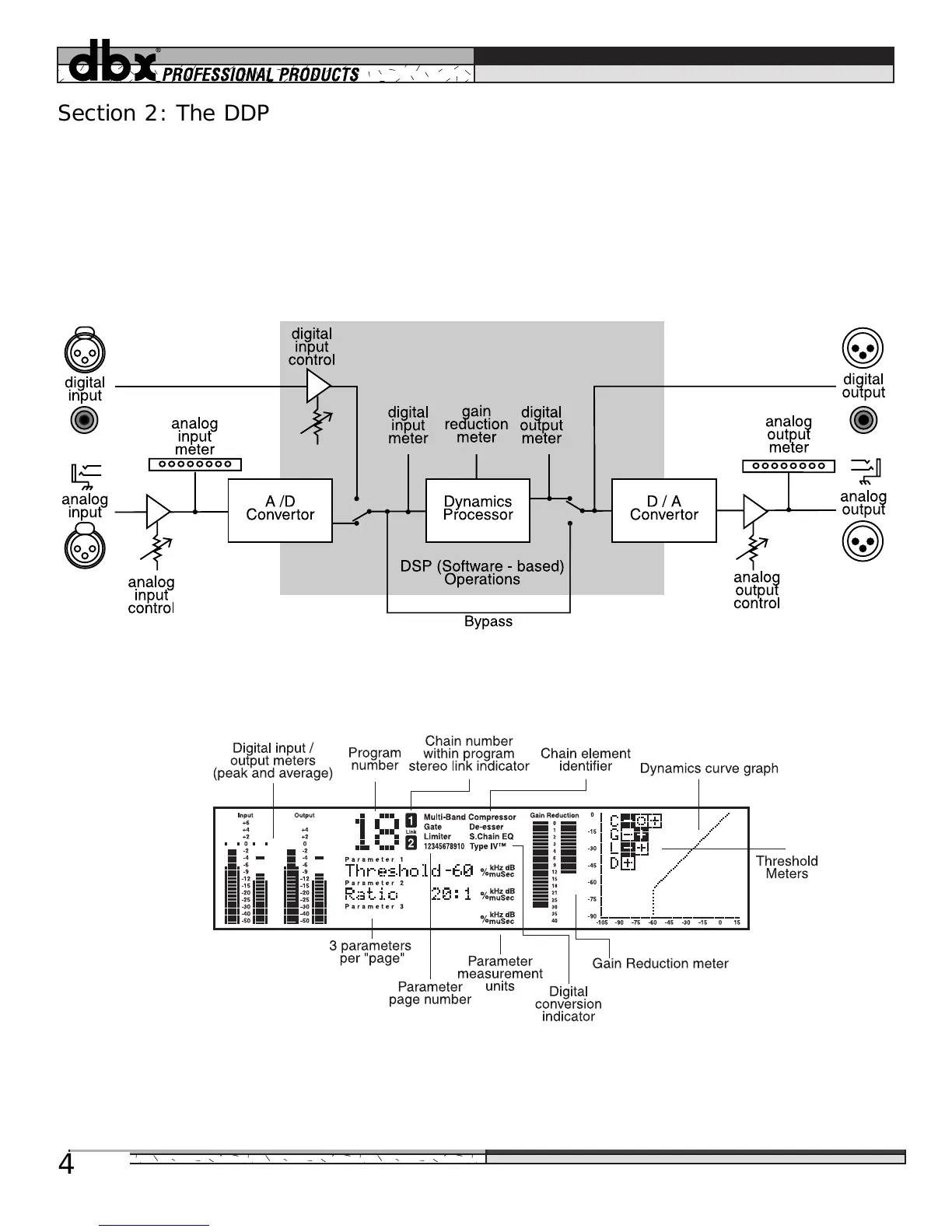

Figure 1: DDP Signal Flow
Figure 2: DDP LCD display
