Application 3: Band Performance/DJ
This application is suited for band rehearsal spaces, small venue live performances, or small DJ applications where the
sound system already consists of a dedicated mixer and the goRack is used for system processing only. The goRack’s two
combination MIC/LINE inputs can be connected to the mixer’s left/right master outputs. Stereo imaging will be maintained
through the system when using the LEFT/RIGHT inputs and the pan pots on the mixer can be used to place sound sources in
the stereo field if required.
Application Notes:
• Make sure your mixer and powered speakers (or amplifiers) are turned off before making connections.
• Make connections as described in ‘Making Connections’ on page 5 then apply power to the system according
to the instructions described in ‘Applying Power’ on page 5.
• The routing 2 option will work best for this application. See ‘Configuring The goRack’s Routing’ on page 6 for
information on goRack routing options.

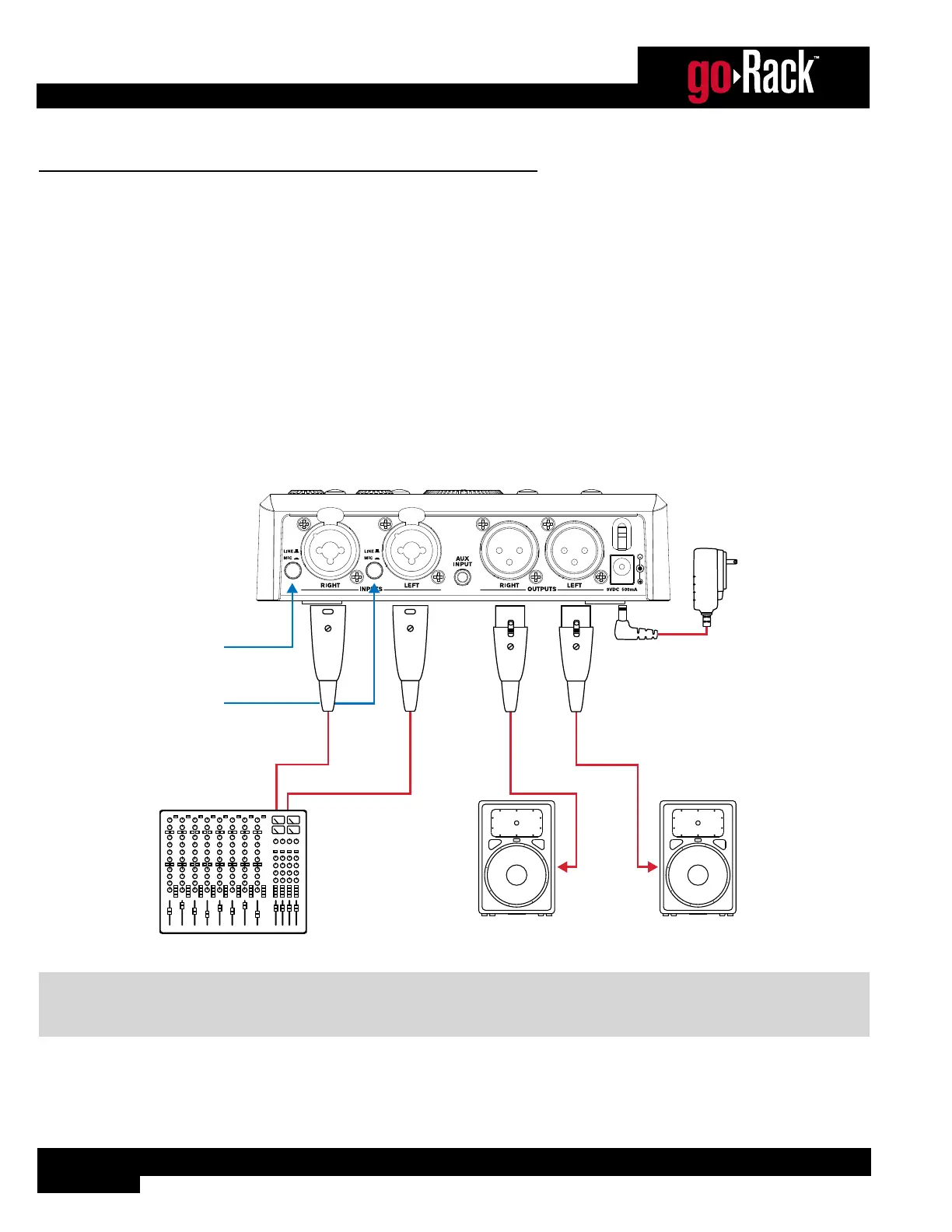

Left Master Out
Line Inputs
Right Master Out
Set to
LINE
Set to
LINE
Powered
Powered
Included Harman
Power Adapter
NOTE: For best noise performance, balanced cables (XLR or 1/4” TRS Phone) should be used between the mixer and
goRack if the mixer’s outputs are balanced. See ‘Audio Cable Diagrams’ on page 26 for more information on these
cable types.
