8

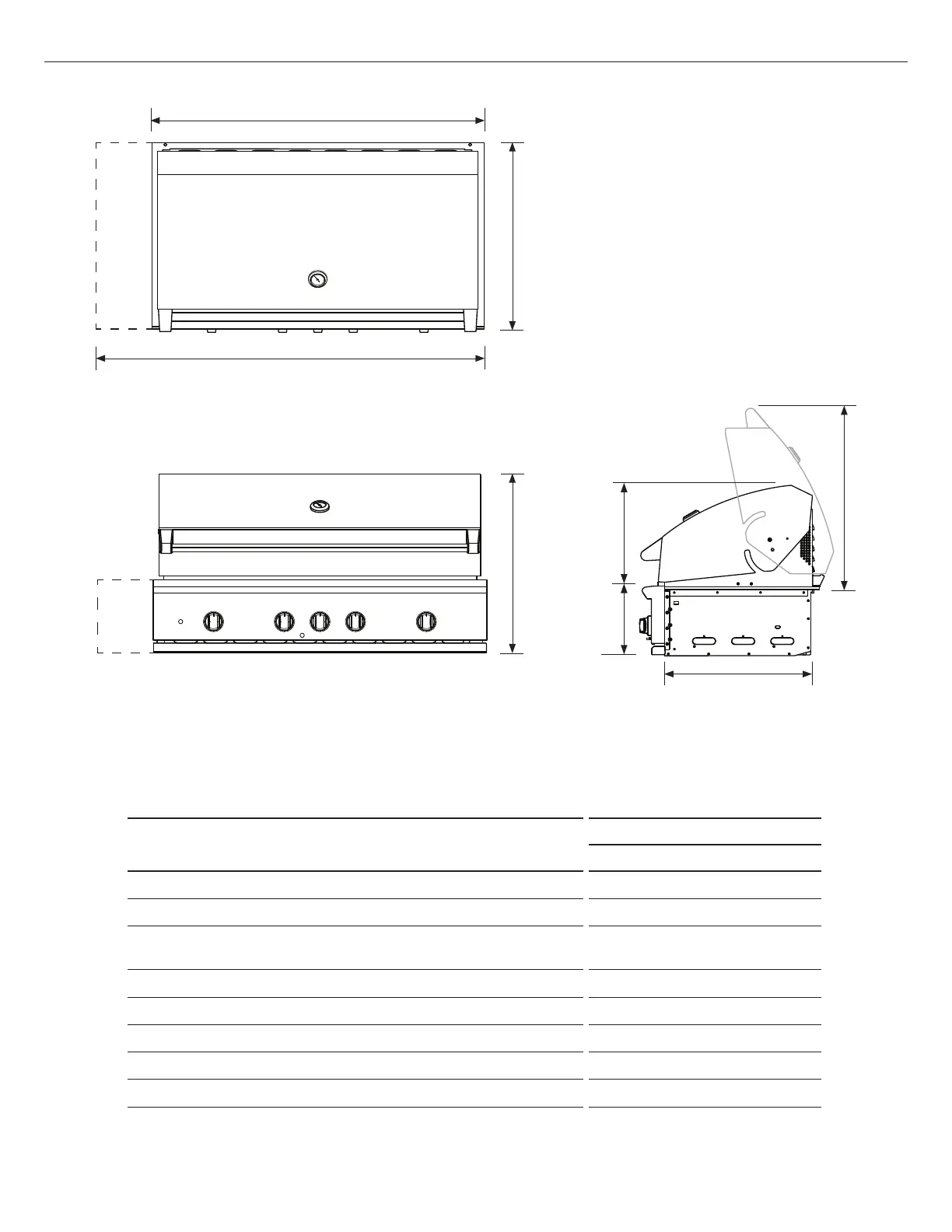

PRODUCT DIMENSIONS
PRODUCT DIMENSIONS
BE1-48RCI models
mm
A
Overall height of grill
692
B
Overall width of grill
1217
C
Overall depth of grill
(excluding handle and dials)
682
D
Depth of chassis
559
E
Height of chassis
252
f
Height of hood
443
G
Overall width of grill with storage unit attached
1369
h
Height from top of hood to top of countertop
690
A
e
f
c
B
G
d
h
PLAN VIEW
FRONT VIEW PROFILE VIEW
