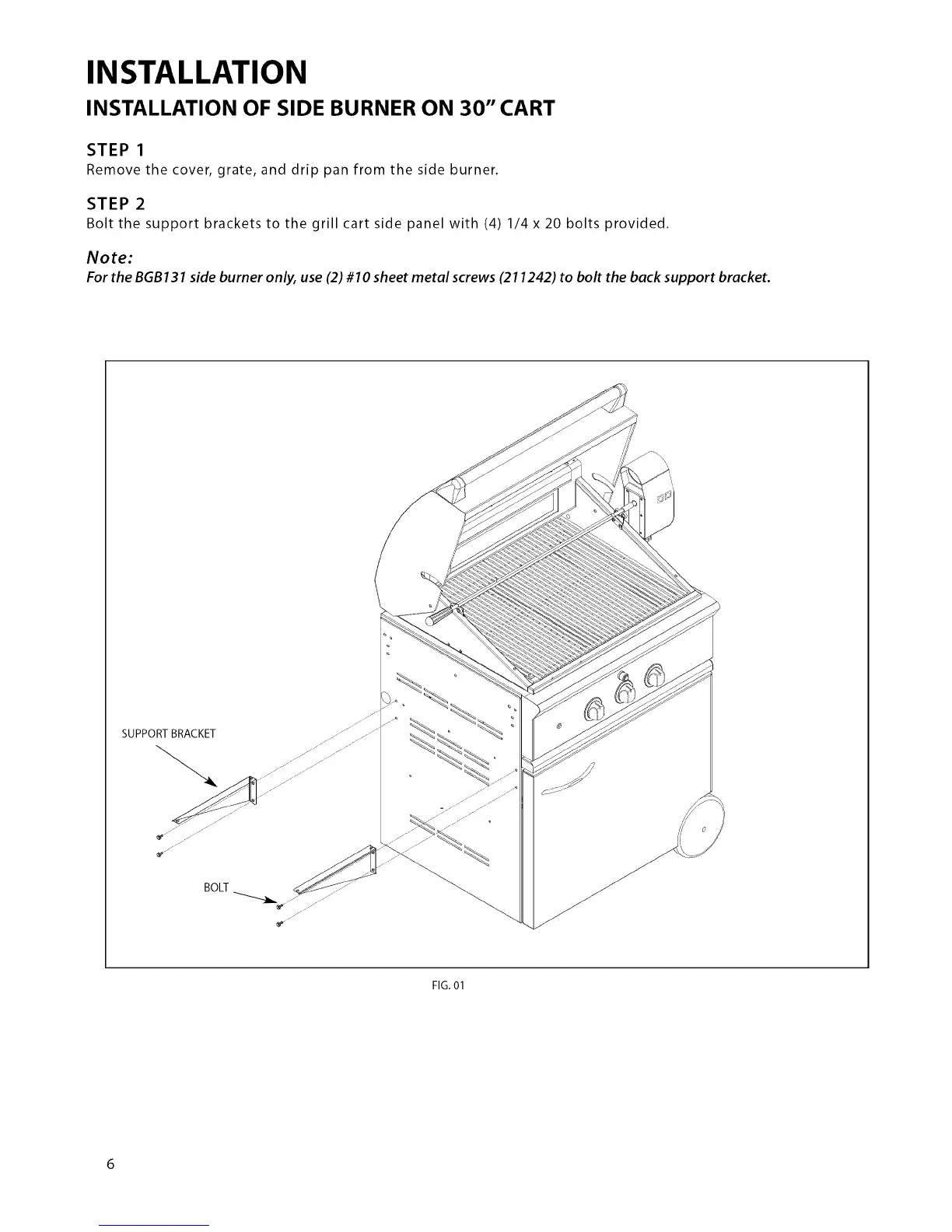

INSTALLATION
INSTALLATION OF SIDE BURNER ON 30" CART
STEP I
Remove the cover, grate, and drip pan from the side burner.
STEP 2
Bolt the support brackets to the grill cart side panel with (4) I/4 x 20 bolts provided.
Note:
For the BGB131 side burner only, use(2) #I0 sheet metal screws (211242) to bolt the back support bracket.
SUPPORT BRACKET
BOLT
FIG. 01
6
