INSTALLATION
INSTALLATION OF SIDE BURNER ON 30" CART
1.
2.
STEP 3
Bolt the side burner to the grill cart side panel from the under side of the burner assembly with a shoulder bolt
in the front and 1/4 x 20 bolt in the back as shown. Do not forget to use 1/4 flat washers. Do not tighten.
Adjust the side burner until it is level to the grill; then tighten securely.
Bolt the support brackets to the bottom of the side burner with (4) #10-24 machine screws, nuts and washers
provided.
3. Replace the drip pan, grate and cover.
Note:
Once the side burner is assembled, refer to the "GasRequirements" section for proper gas hook-up requirements.

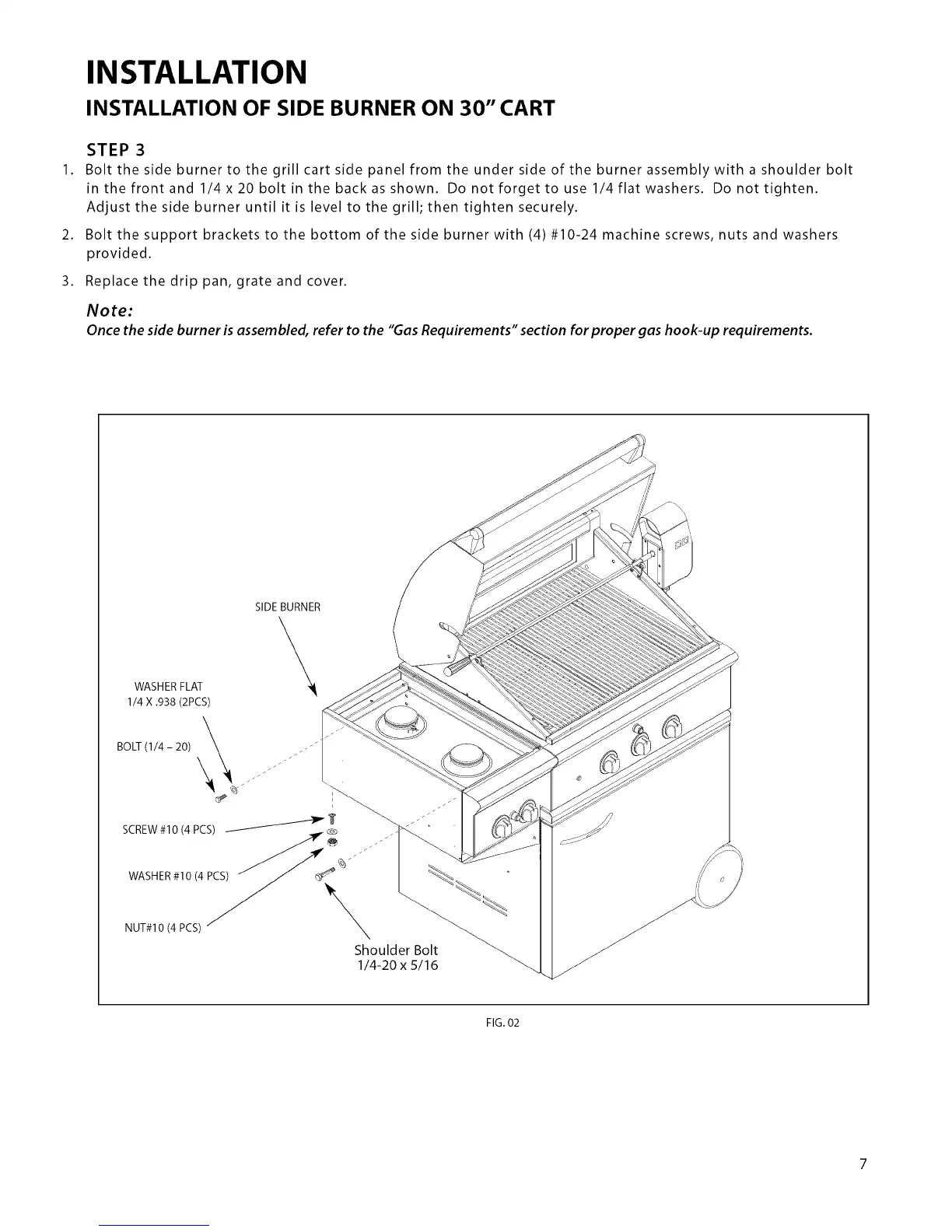

WASHERFLAT
1/4 X .938 (2PCS)
SIDE BURNER
BOLT (1/4 - 20)
ss _
SCREW #10 (4 PCS)
WASHER #10 (4 PCS)
NUT#10(4 PCS)
jJ
\
Shoulder Bolt
1/4-20 x 5/16
FIG. 02
To Next Page
