INSTALLATION

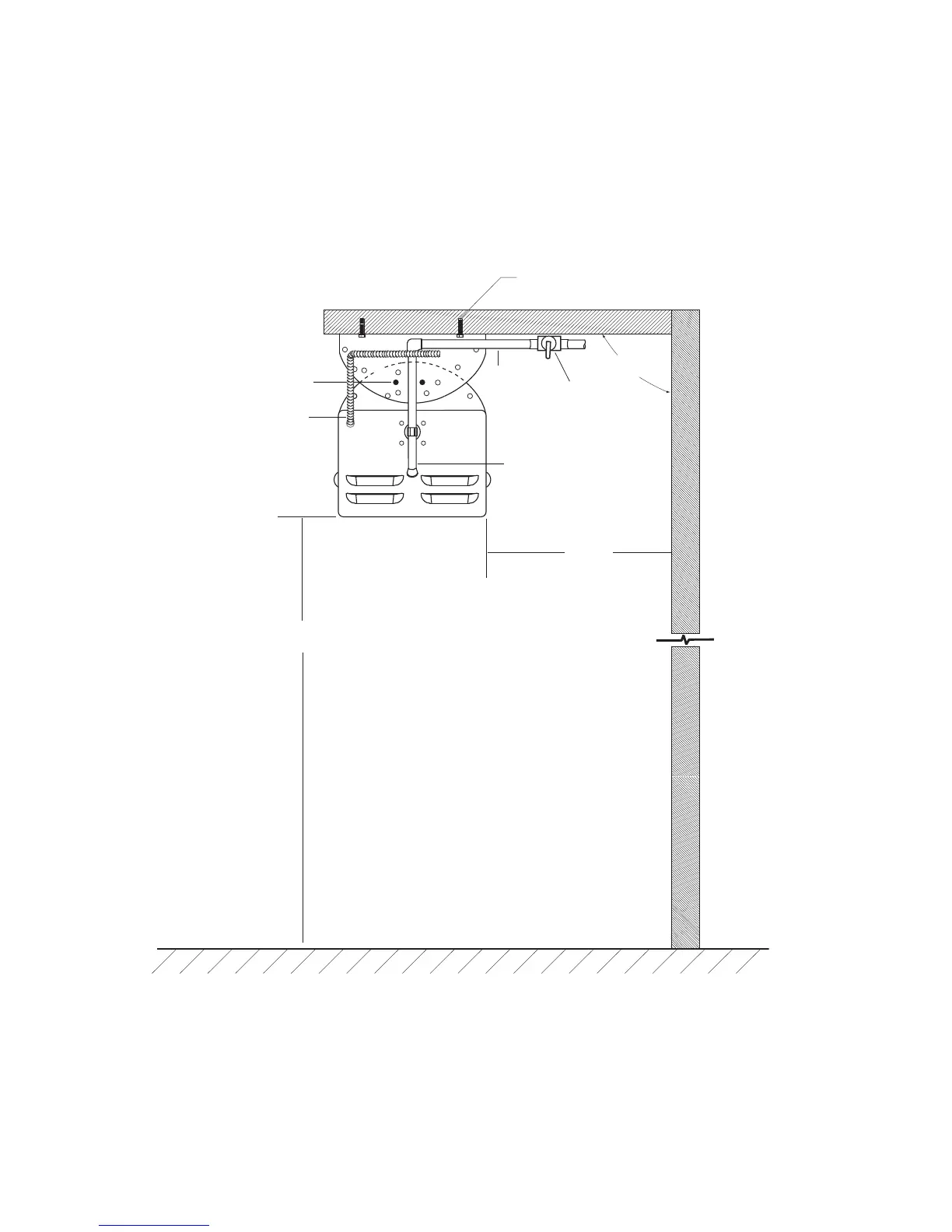

MINIMUM CLEARANCES TO NON-COMBUSTIBLE MATERIAL.
FLOOR
96"
Four Bolts
P
er Bracket (installer supplied)
SIDE VIEW
Surface
Non Combustible
Gas Shut- off
Valve
(installer supplied)
Gas Pipe
(installer supplied)
Utilize 2
bolts (min)
per bracket
Drip Leg
with 1/8” NPT
plugged test
gage connection
min.
min.
18"
1/2" Conduit
(installer
supplied)
INSTALLATION
CLEARANCE SPECIFICATIONS
Note: Stainless steel hardware is highly
rec
ommended. Bolts in the wall
should be secur
ed t
o the w
all
studs/structure. Weight of the
hea
t
er is 50 lbs.
