CABINET PREPARATION
11
0” Clearance
C
J
I
0” Clearance
B
A
F
C
H
E
D
G
36" Min. to
Combustibles
12" Min. to
Combustibles
without backguard

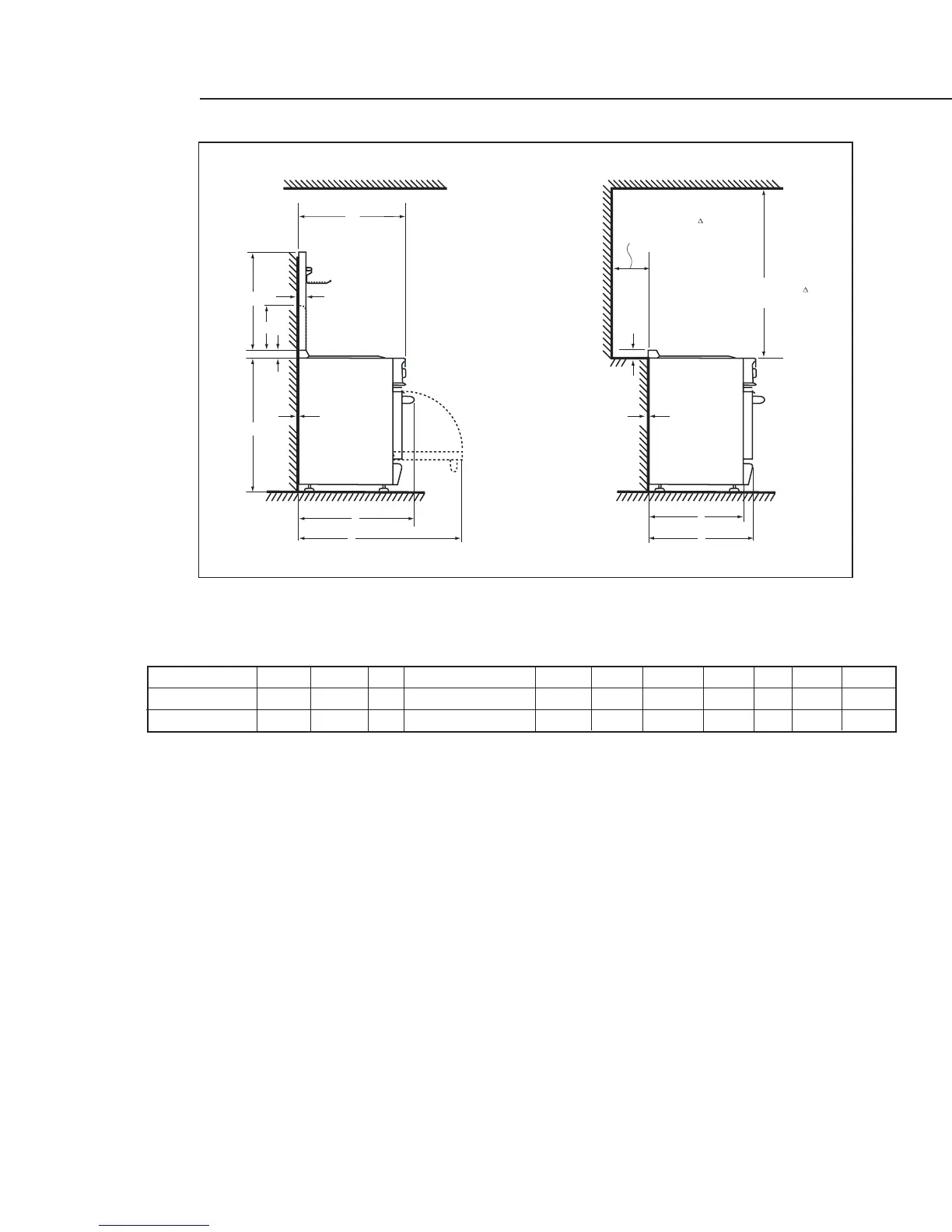

Fig. 9 RGS 48” & 36” Models Only
A B C D E F G H I J WIDTH
RGS 48 Models 28-1/8” 10-1/8” 2” 35 1/2”min.-37”max. 30-1/4” 44-1/2” 28-1/4” 1-5/16” 25” 27-3/8” 47-7/8”
RGS 36 Models 28-1/8” 10-1/8” 2” 35 1/2”min.-37”max. 30-1/4” 44-1/2” 28-1/4” 1-5/16” 25” 27-3/8” 35-7/8”
A
B
