DDC RDC-19220 Series User Manual

19
Data Device Corporation
www.ddc-web.com
RDC-19220 SERIES
P-05/05-0
2.000 ±0.020
(50.8 ±0.51)
0.590 ±0.010
(14.99 ±0.25)
0.100 ±0.010 TYP
(2.54 ±0.25)
0.018 ±0.006 TYP
(0.46 ±0.15)
0.050 ±0.020 TYP
(1.27 ±0.51)
0.012 ±0.004 TYP
(0.31 ±0.10)
+0.050
0.600
- 0.020
+1.27
(15.25 )
- 0.51
DIMENSIONS SHOWN ARE IN INCHES (MM).
1
20
0.125 ±0.020
(3.18 ±0.508)
0.050 ±0.010
(1.27 ±0.25)
0.115 ±0.010
(2.921 ±0.25)
40
21
PIN NUMBERS
FOR REF ONLY
0.095 ±0.010
(2.41 ±0.25)

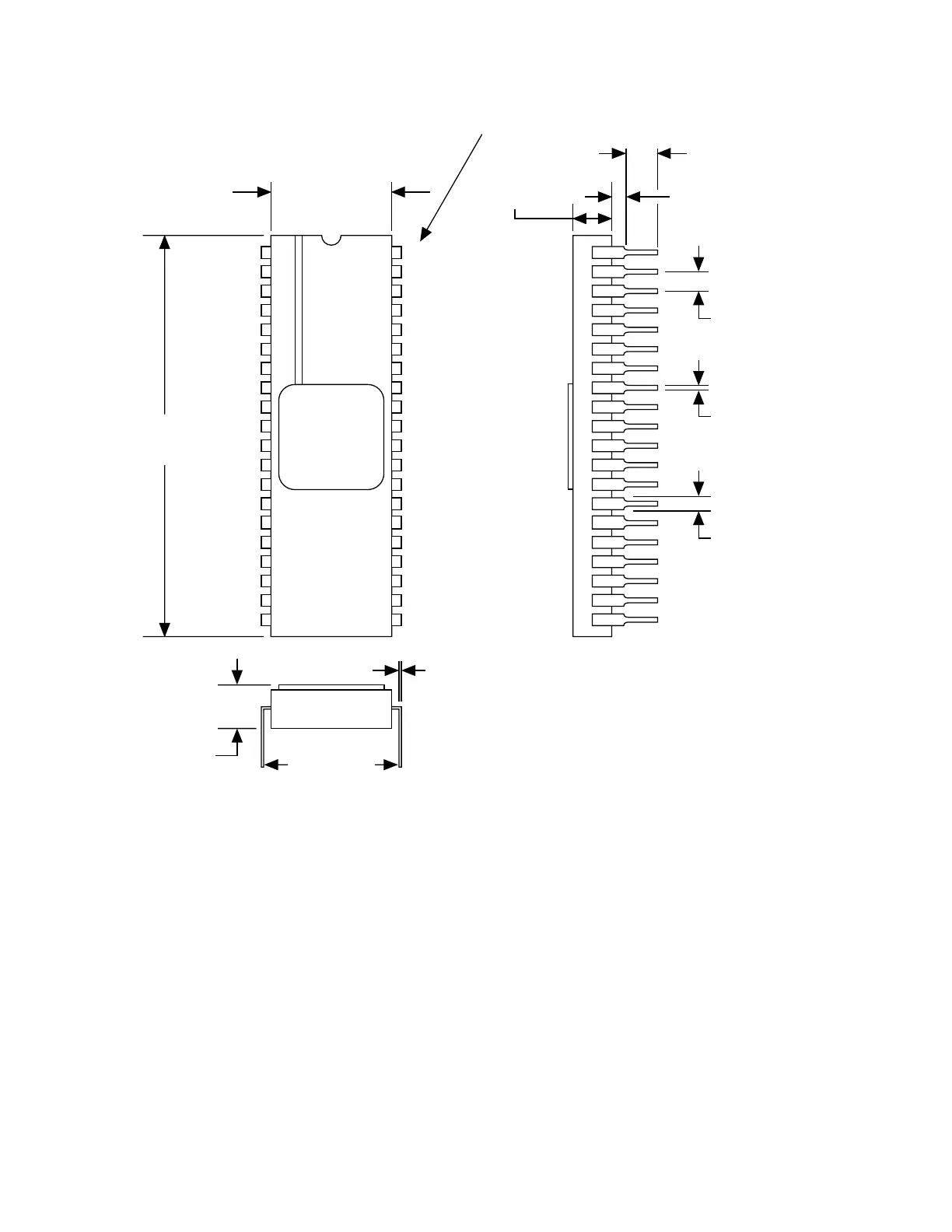

FIGURE 18. RDC-19220 (40-PIN DDIP) CERAMIC PACKAGE MECHANICAL OUTLINE
