© 2016 DDN STORAGE. P/N 15-000836-001 SFA7700 CMOS and Backup Battery Replacement Instructions | 10

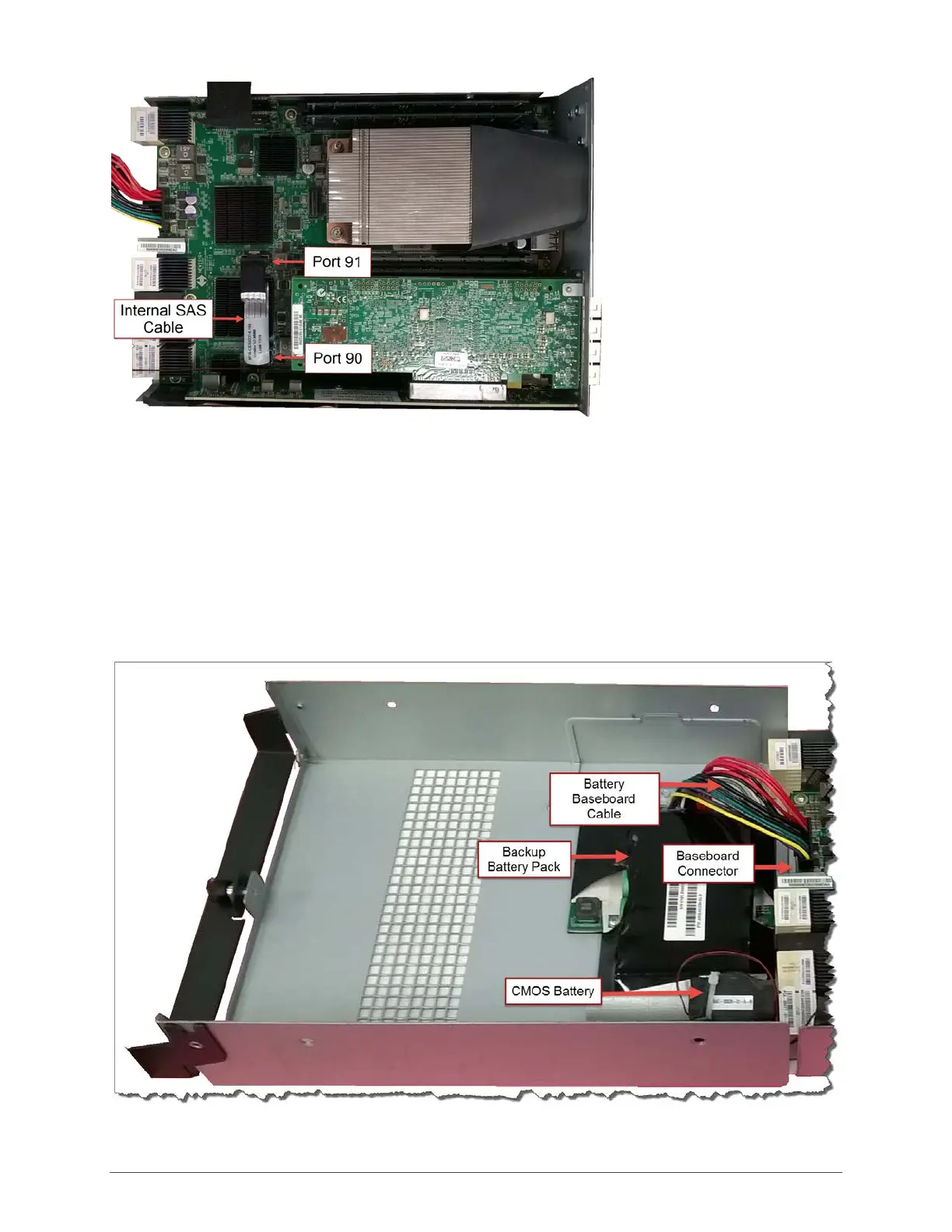

Figure 12 – SFA7700
Removing and Replacing the Backup Battery Pack
Because the expected useful life of the backup battery pack is less than that of the CMOS battery,
most replacements will be for the backup battery only.
The backup battery pack is attached to the inside of the top of the controller canister (Figure 13).
Figure 13
