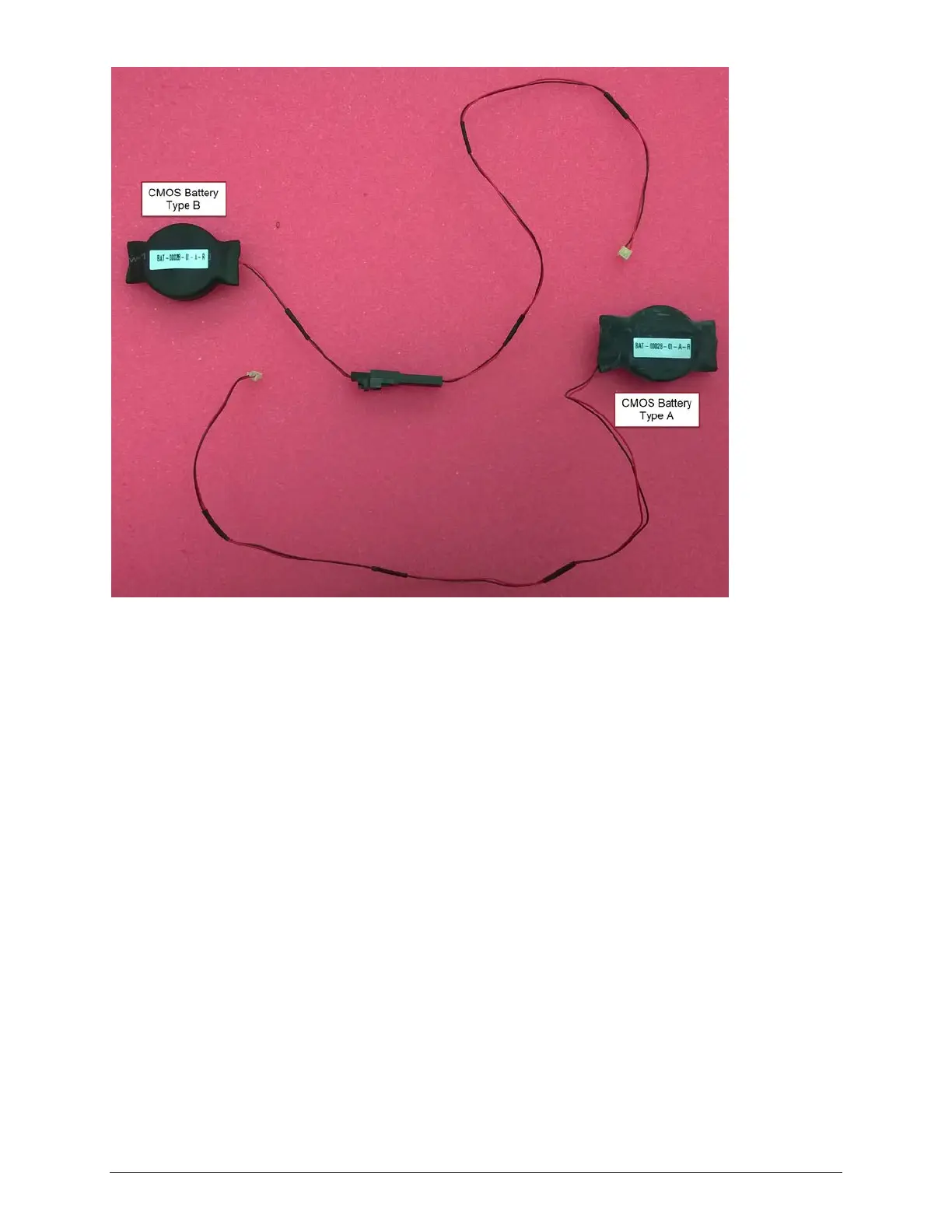

Figure 16
Type A – single cable connecting to the controller baseboard. It is necessary to remove internal
components to make the motherboard connection accessible (Figure 17). This is the older type and
is most often seen in earlier releases of the SFA7700.
