ddtop TRG808X Series User Manual

13 / 18
WWW.DDTOP.COM

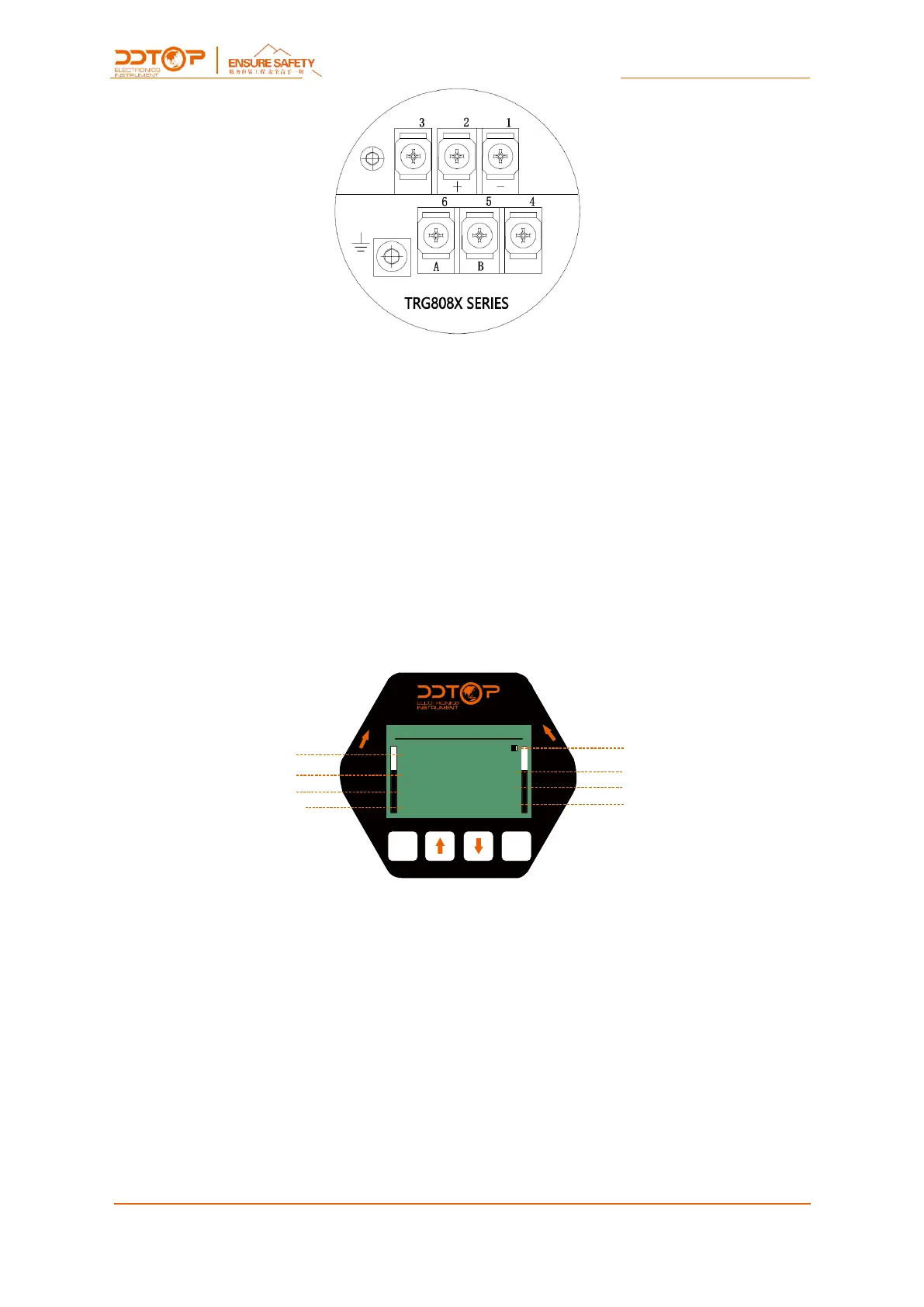

Figure 12 RS485 Wiring Diagram
8 Instrument Configuration
8.1 Key Descriptions
The system mentions 4 operation interface modes:
[Measurement Interface]: Display the system operation status and current measurement
data.
[Echo Interface]: Display the echo situation of the current measurement of the system.
[Setting Interface]: Set various data parameters for system operation.
The functions of the 4 keys in different operation modes are also different.
8.2 Measurement Interface
OPEN
L
OCK
ESC ENT
11.986
11.916
27.0℃
XXXX
m
11.439mA
0001
Communication Status
Unit
Current Value
Fault Code
Damping Value
Real Time Value
Temperature
Model
Figure 13 Diagram of the measurement interface
ESC 一 Access to the settings screen
UP 一 Access to the parameter overview screen
DN 一 Streamlined main interface
ENT 一 Access to the echo screen
Real time value: Indicates the result of a process quantity (level, air height, distance)
measured by the system in real time.
Damping value: The result of smoothing the real-time value through a damping filter.
Temperature: Indicates the operating temperature of the internal components of the
instrument.
Version number: Displays the customer-defined product model number.
Communication status: Heartbeat indication of the system communication status, 1S blinks
