U P 一 Move up to select an entry
D N 一 Move down to select an entry
ENT 一 Access to the selected entry sub screen
The [Basic Settings] menu item contains the basic function options required for the normal
operation of the instrument, as shown in the table below. In general operating conditions, the
instrument can be quickly started up by setting these parameters. Select [Basic Settings] and
press [ENT] to enter the options screen.
Common Basic Menu Settings
High-Low Adjustment
[High/Low Adjustment] The high level corresponds to a full material position and the low level
corresponds to a short position.
ESC ENT
OPEN
L
OCK
High/Low Adjustment
Low le vel
High le vel
0.000
30.000
m
m
Default 100%
Default 0%
High Le
v
el
Adjustment
Low Le
v
el
Adjustment
Sensor Reference Point
R
ange
Distance
Height
Level

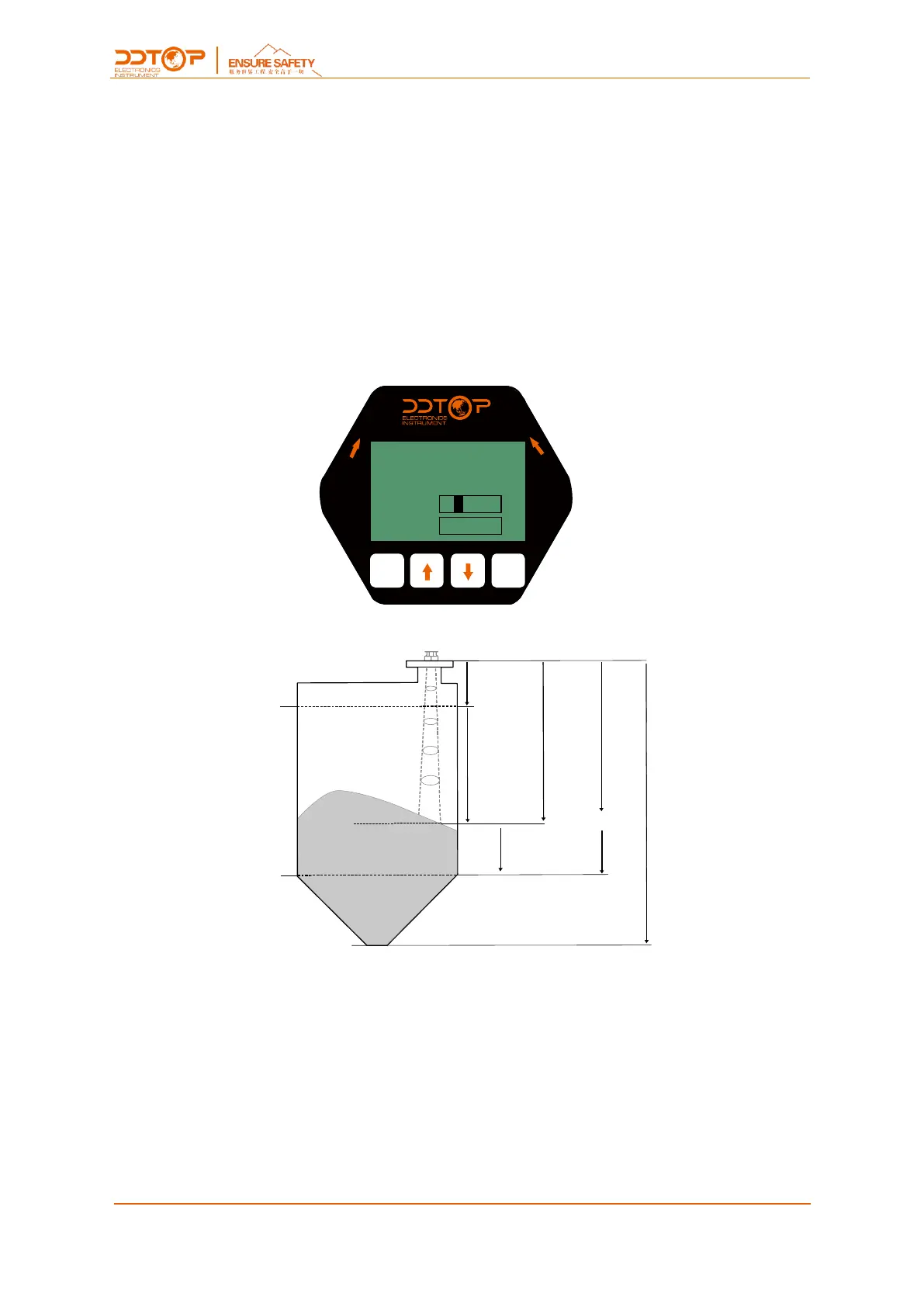

Figure 16 Low Level Adjustment Editing Screen With Definitions
Example: Tank to be measured, tank height 5m, then high level set to 0, low level set to 5.
Blind Zone Setting
The [Blind Zone Setting] and the [Range Setting] together determine the area selected by the
meter's internal echo algorithm. The algorithm will ignore echoes within the blind zone, so that
interference from the near end can be avoided by this option. See the table below for details.
