DECATHLON SERIES GAS FRYERS
CHAPTER 2: PARTS LIST
2-34

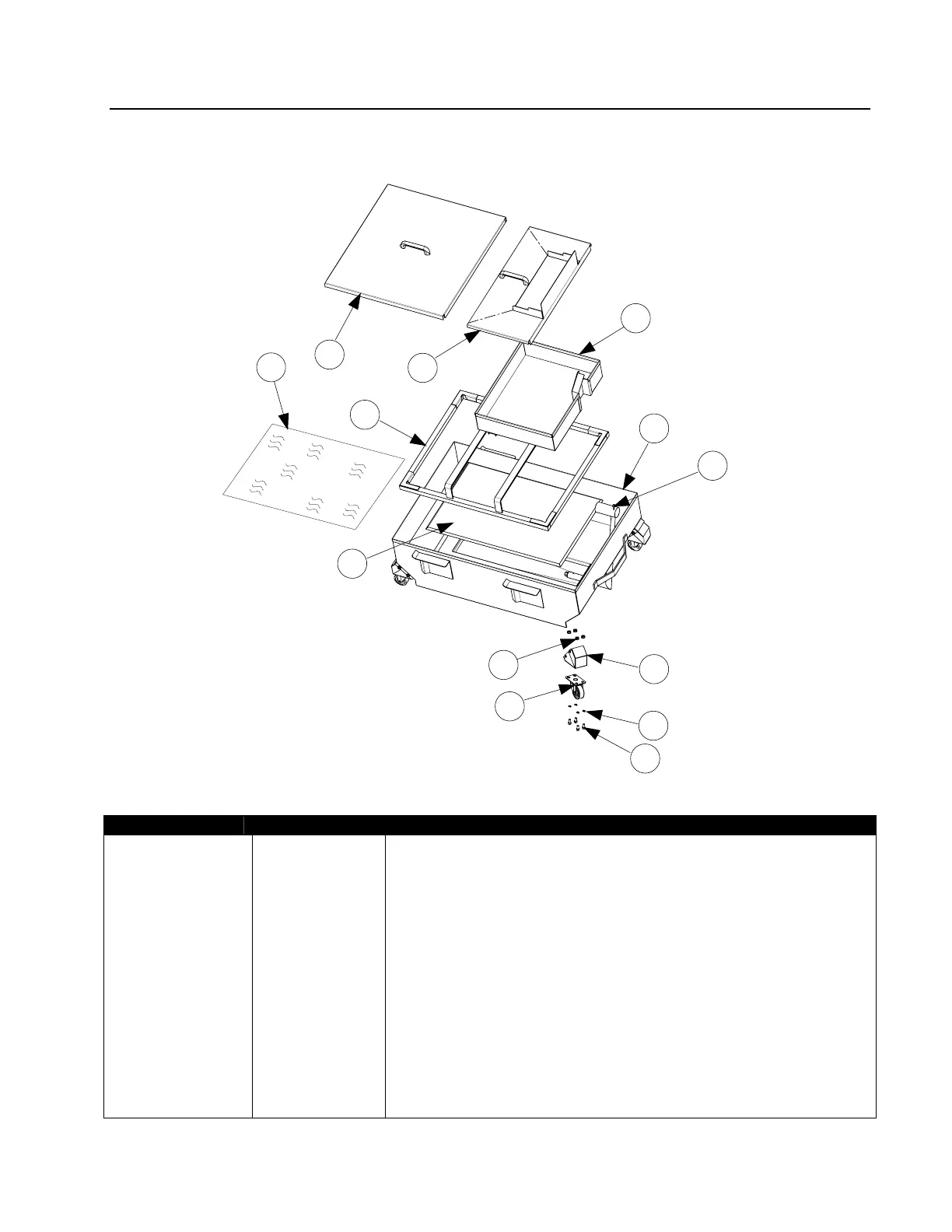

2.8.5 UFF Filtration Components; SCFD80 Series Fryers
8
10
7
11
9
4
1
12
3
5
2
6
13
ITEM PART # COMPONENT
1 823-5406 Filter Pan
2 106-5321 Lid, Front (UFF 80)
3 106-5317 Lid, Rear (UFF 80)
4 823-5412 Crumb Basket
5 823-5409 Hold Down Ring
6 823-3365 Grid
7 810-2805 Caster, 2”
8 823-5407 Insert, Caster
9 809-0804 Nut, ¼-20 Cap (with Ext. Tooth)
10 809-0191 Washer, ¼“ Spring Lock
11 809-0428 Screw, ¼-20 x ½ Hex Head
12 813-0679 Plug, ⅛” S/S Square Head Pipe (Suction)
* 813-0704 Plug, ⅜” S/S Hex Head
13 803-0303 Filter Paper, 26” x 34” (100 sheets per box)
* Not illustrated.
