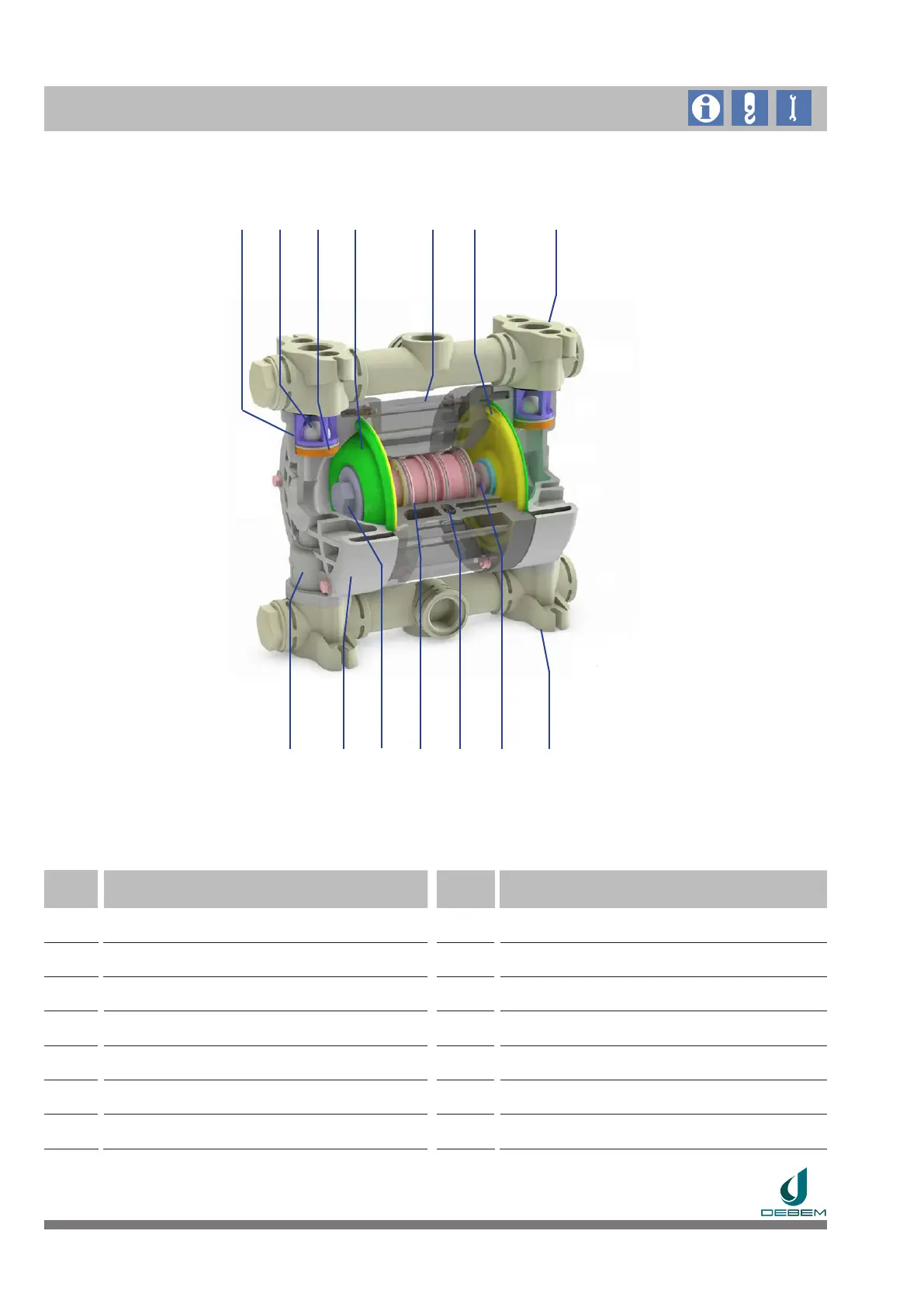

IDENTIFICATION AND NOMENCLATURE OF PARTS
POS. NOMENCLATURE POS. NOMENCLATURE
1
PRODUCT DELIVERY VALVES
8
PRODUCT SUCTION VALVES
2
BALL VALVE
9
PUMP CASING
3
BALL VALVE SEAT
10
CAP
4
OUTER DIAPHRAGM (PRODUCT SIDE)
11
PNEUMATIC EXCHANGER
5
INNER DIAPHRAGM (AIR SIDE)
12
AIR SUPPLY CONNECTION
6
CENTRAL
13
SHAFT
7
DELIVERY MANIFOLD
14
SUCTION MANIFOLD
