RUNNER 15

TO ASSEMBLE THE VARIOUS PARTS, FOLLOW THE

INSTRUCTIONS GIVEN BELOW

–

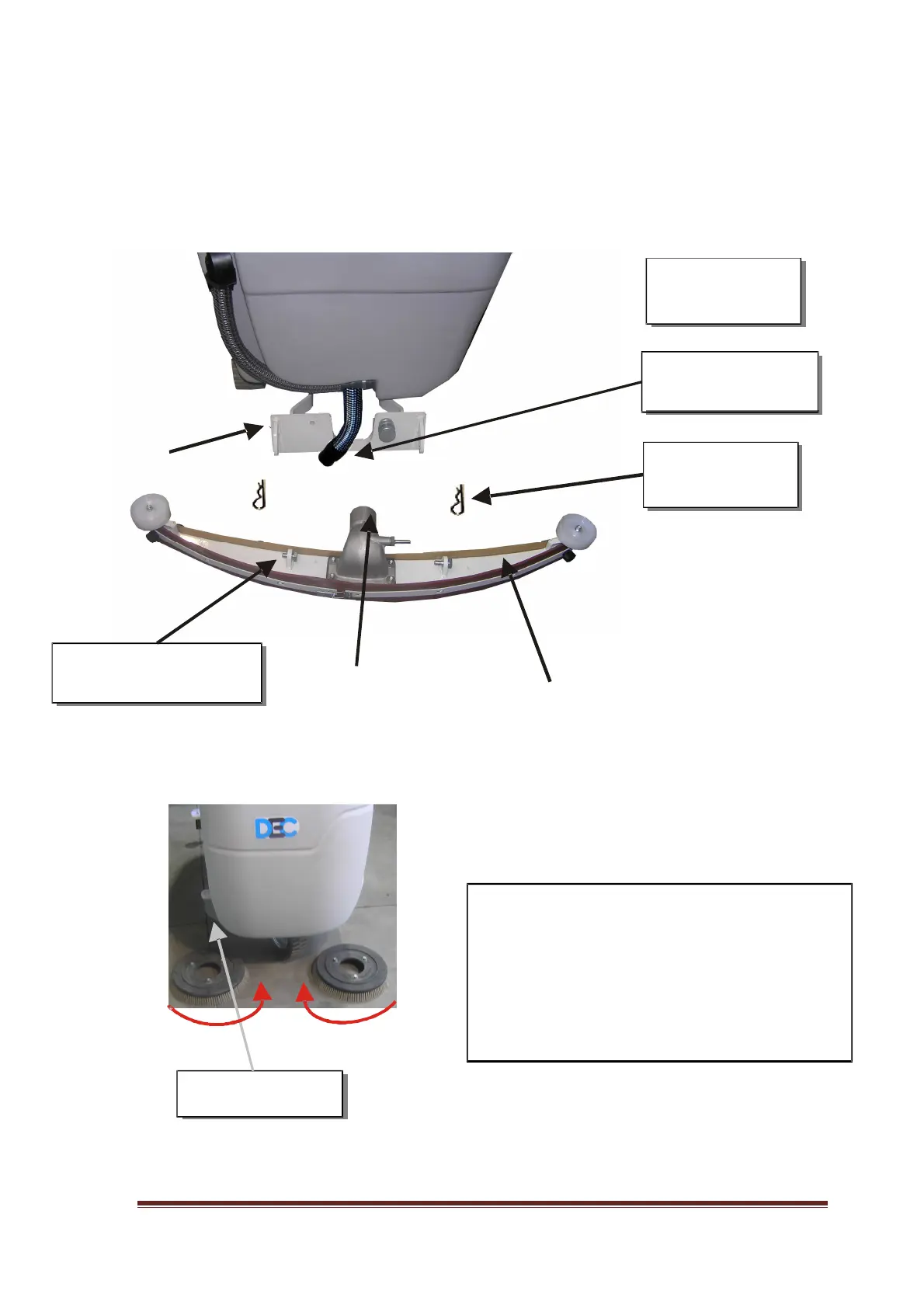

Squeegee

–

Brushes

TUBE

Brush-

holder head

Insert the two squeegee

rubber pins in the holes

in the carriage.

Fit the two cotters R

in the holes in

the pins

Lift the carriage by

means of switch D

(next page)

SQUEEGEE

QUEEGEEHOLDER CARRIAGE

Lift the brush-holder head by means of switch E,

position

the brushes under the head and in line with the drive

pulleys, then raise and manually fix the brushes in the

head by turning them through 20°.

Note that, during the washing phase, the brushes rotate

in the direction shown in the Figure, but the

y must be

turned in the opposite direction for fixing them to the

head.

Connect the suction

pipe in the tube to the

squeegee
