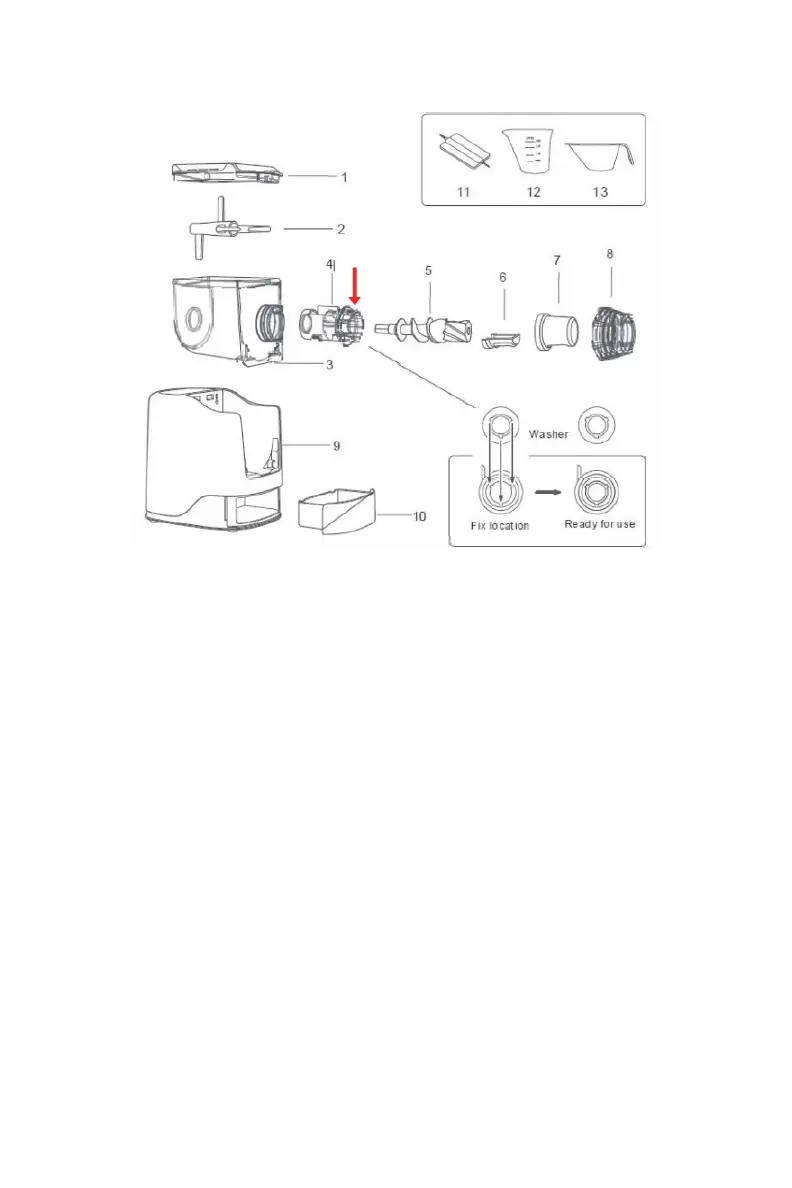

Parts Introduction
1. Mixing chamber cover
2. Mixing paddle
3. Mixing chamber
4. Extrusion pipe
5. Spiral rod
6. Mold
7. Mold head
8. Mold knob
9. Base
10. Mold storage compartment
11. Cutting, cleaning, and leveling tool
12. Water measuring cup
13. Flour measuring cup
Note: The extrusion pipe (4) holds a removable white, plastic
circular washer which is indicated in the above picture by the
red arrow. This washer may be detached for cleaning. After
washing, be sure to put plastic washer in place on the extru-
sion pipe (4). The Pasta Maker cannot operate properly with-
out this piece.
2
