1. Refer to the unit wiring diagram. Identify the liquid-line solenoid valve
and CLP switch associated with the circuit being adjusted.
NOTE: If the unit model number ends in “2”, e.g. DS042, there will be
two
refrigeration circuits, with two
sets of components.
If the unit model number ends in “4”, e.g. DS284, there will be
four
refrigeration circuits, with four
sets of components.
If the unit model number ends in “8”, e.g. RS488, there will be
eight
refrigeration circuits, with eight sets of components.

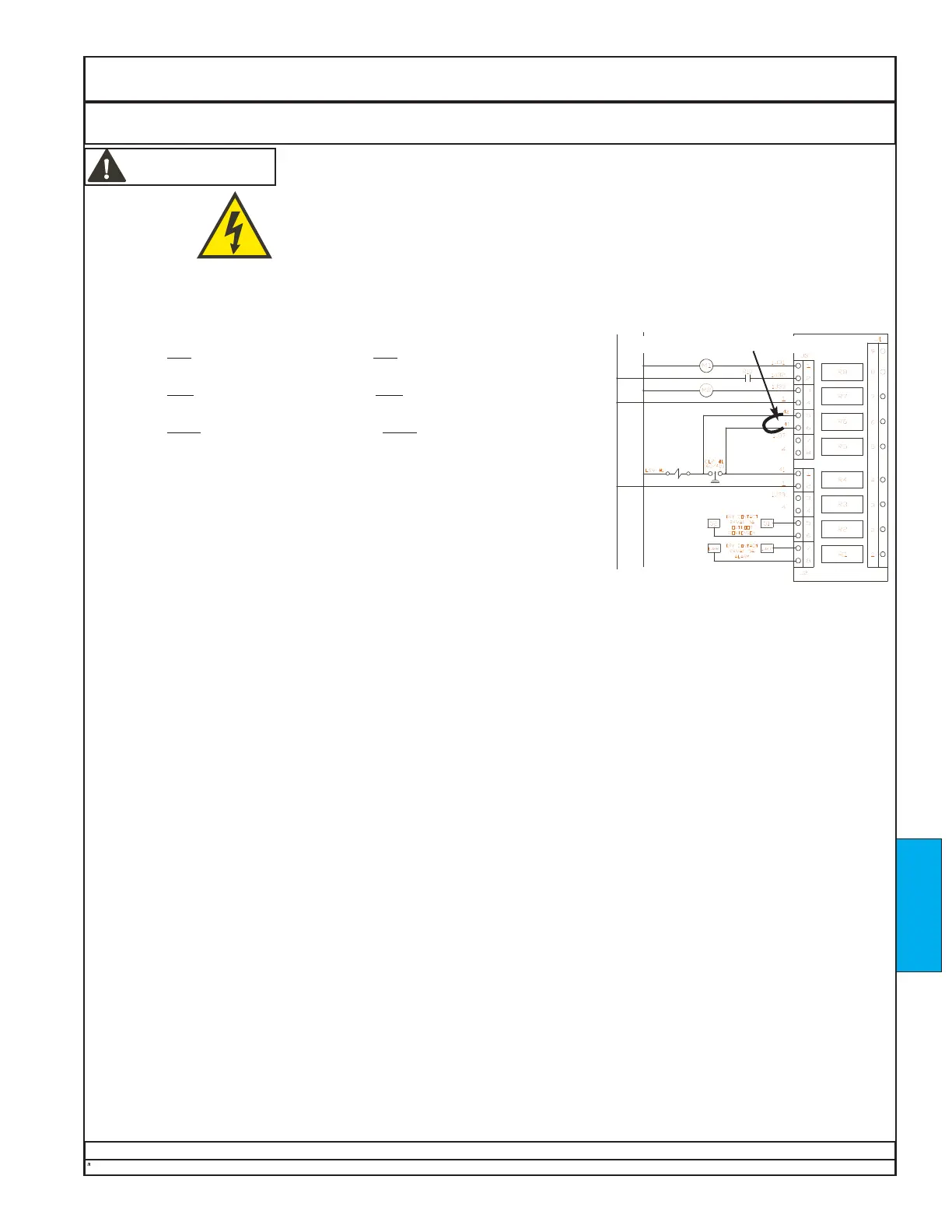

2. In the unit control enclosure, remove the temporary jumper across the
pressure switch labeled “CLP” as shown. Where more than one
refrigeration circuit is present, be sure to identify the correct CLP
switch.
3. Close all covers.
Relay Board #1
Remove Temporary Jumper
SAMPLE
Use unit wiring diagram.
Dectron, Inc. March 2012
Owner’s Manual
DSH/DSV/RSH/DBH/RBH Series Dehumidifier
Adjust Expansion Valve(s) Startup
Data subject to change without notice.
235
WARNING
Risk of electric shock. Can cause injury or death.
Some installation and service procedures could expose personnel to the risk of
electric shock. Electric shock can cause injury or death.
The unit controller does not disconnect electrical energy from the unit, even in the
OFF condition. Use only approved devices (e.g. locking safety switch), to disconnect,
lockout, and tagout all sources of electrical energy before working inside the unit
cabinet. Follow all applicable safety regulations.
STARTUP
