Operation Maintenance Air Filters
FILTERFILTERFILTER
FILTERFILTERFILTER
CHECK THAT ALL FILTERS ARE
CLEAN AND IN PLACE, con’t.

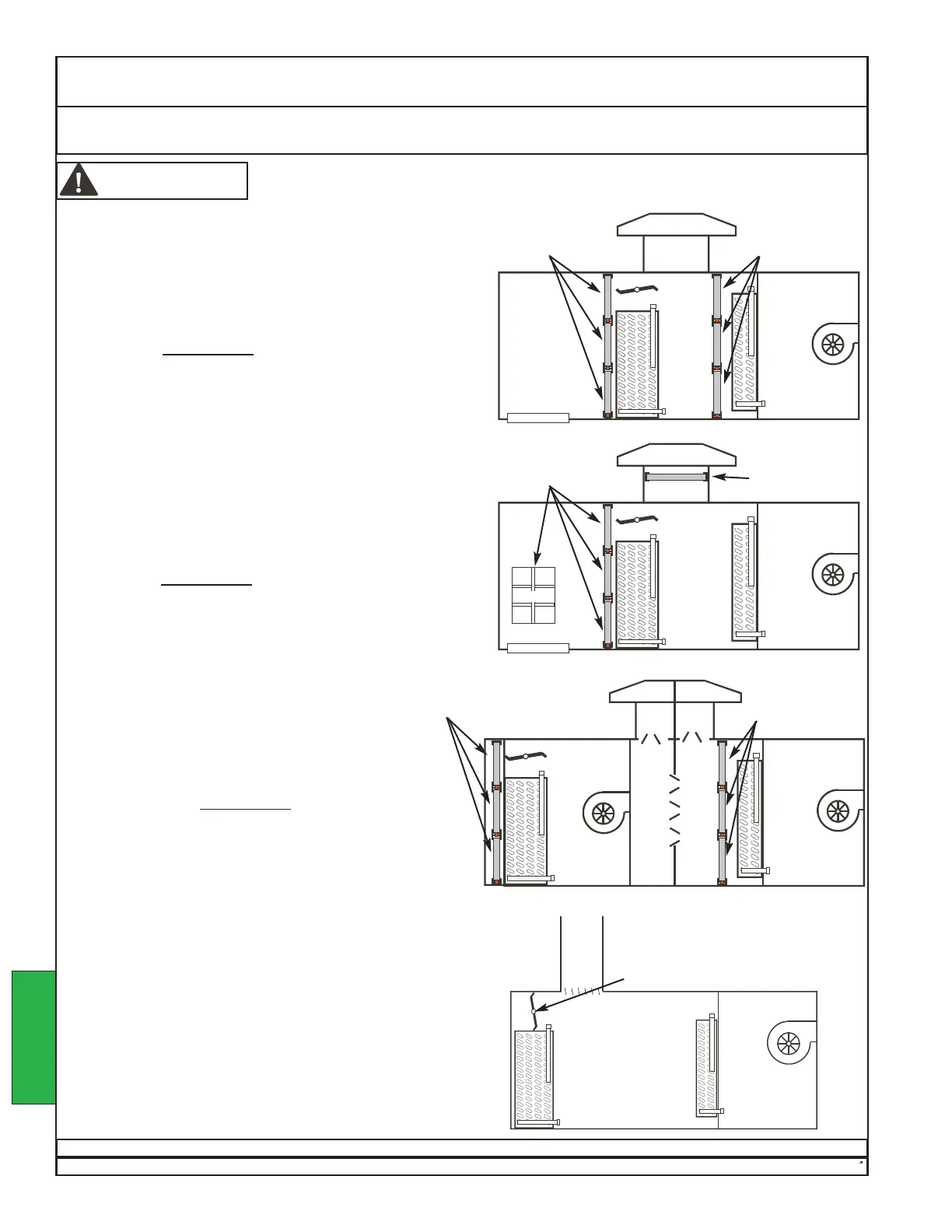

Some horizontal units may have the optional Purge-
mode feature. In this case, there will be a set of outdoor-
air filters located upstream of the reheat coil. Most such
units have lift-out return-air filters accessible through a
door. Refer to Appendix M6
.
Filters for outdoor air must be moisture resistant.
The location, size, and number of filters may vary.
Return-Air
Filters
Return-Air
Filters
Return-Air
Filters
Outdoor-Air
Filters
Outdoor-Air
Filters
Outdoor-Air
Filters
cooling coil
reheat coil
FILTER
FILTER
FILTERFILTER
Some horizontal units may have the optional
SmartSaver ® feature. In this case, there will be a two
sets of filters for return air as shown. Most such units
have lift-out return-air filters accessible through a door.
There will also be a set of filters for outdoor air as
shown. These filters may be lift-out or may have draw
tabs. Refer to Appendix M3.
Filters for outdoor air must be moisture resistant.
The location, size, and number of filters may vary.
cooling coil
FILTERS
FILTERFILTERFILTER FILTERFILTERFILTER
Some horizontal units may have the optional
economizer feature. In this case, there will be a
set of filters for return air as shown. These filters
may be lift-out or may have draw tabs.
There will also be a set of filters for outdoor air as
shown. These filters may be lift-out or may have
draw tabs. Refer to Appendix M5
.
Filters for outdoor air must be moisture
resistant.
The location, size, and number of filters may
vary.
cooling coil
reheat coil
reheat coil
Units with manual evaporator
bypass damper only
Some units may have manual evaporator-
bypass dampers. In this case the damper must
be closed completely as long as the room
temperature is below 78°F (25.6°C). If the room
temperature at startup is above 78°F (25.6°C), a
manual evaporator bypass damper should be
fully open.
Close bypass damper
when room temperature is
below 78°F (25.6°C)
Samples
Actual layout
may vary.
WARNING
See safety warnings on previous page.
OPERATION
7.8
