If the air handler unit must be located overhead, then:
1. The space must not contain corrosive-chemical storage, or connect to any space that contains corrosive-
chemical storage.
2. The space must not include a natatorium or spa room, or any space where the exterior of the unit would
be exposed to chloramines outgassing from a pool.
3. A mezzanine floor must be constructed to allow the minimum service access.
4. Minimum straight lengths of duct may be required. See Installation - Ducting.
Service clearances
are required. See
previous page.
Safety switches, safety
valves, fall protection,
pipes, conduits, etc.,
are not shown.
Sound and vibration
absorbers are important.
See subsequent page.
adequate building
structural member
Support system
should include twist
and racking braces.

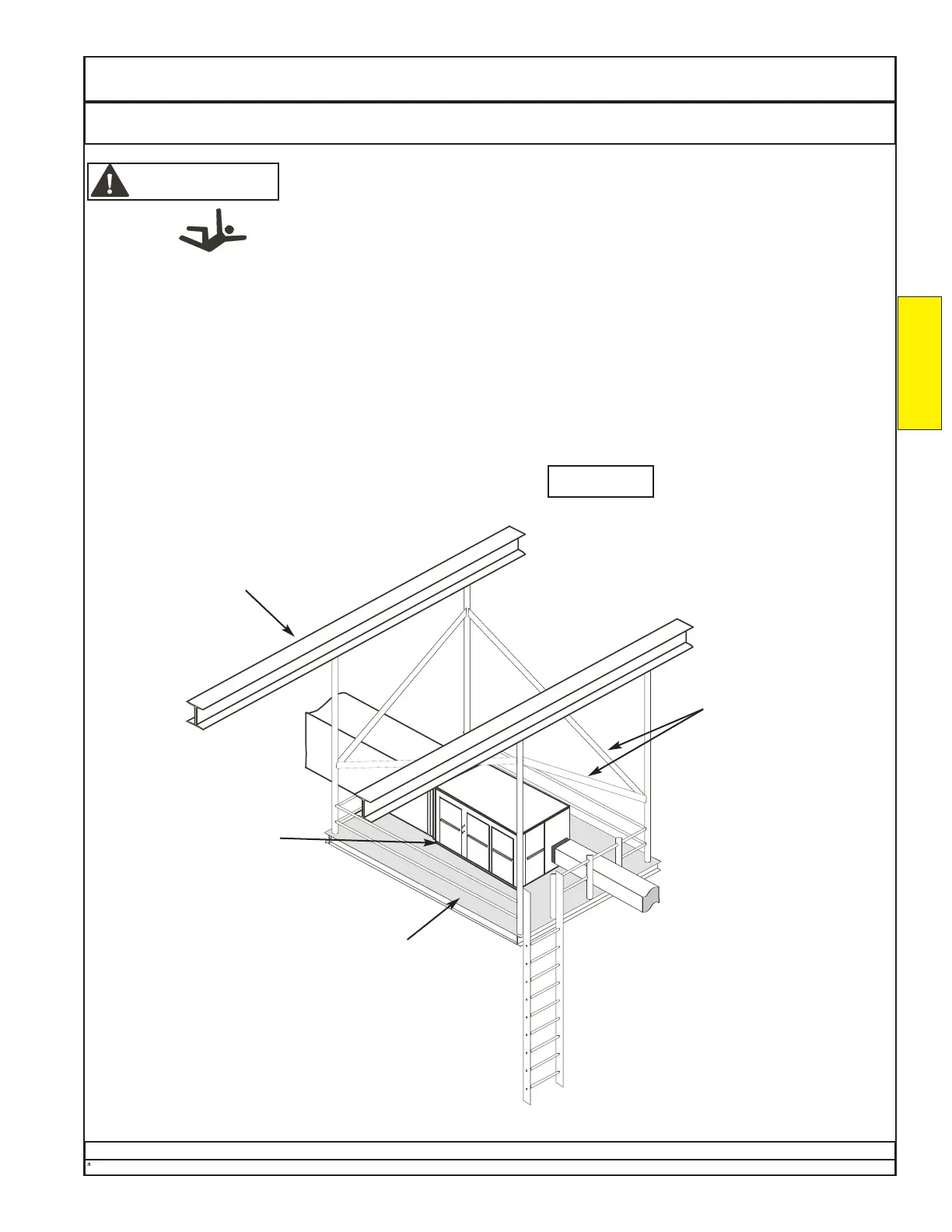

This diagram is for illustration
only, and is not suitable for any
particular purpose. A qualified
structural engineer should
design any support system,
including fall protection.
SAMPLE ONLY
NOT SUITABLE FOR
CONSTRUCTION
BUILDING
CONSTRUCTION
Risk of falling. Can cause injury or death.
Depending on the size and location of this product, some installation, service, and
maintenance procedures could expose personnel to the risk of injury or death by falling.
Designs should include adequate service and maintenance access.
