For outdoor units with hooded air intakes, allow at
least 3 ft (1 m) of clear space around the hood for
smooth intake airflow.
••
Intake air hoods should be suitably separated from
such sources of contamination as drain vents,
laundry vents, and burner flues. See appropriate
codes and standards.
••
Do not locate the unit in such a way that the
exhaust from a cooling tower or other machinery
will be drawn into its intake.
••
Some units may be equipped with gas-fired boilers
or gas-fired furnaces.
Where this is the case, no building-air intake
should be located closer to the flue than shown.
Refer to fuel-gas codes.
To insure clean combustion air, no exhaust air from
the building or exhausts of other equipment should
be located any closer to the air intake than shown.
See also Appendices H6, H7, or H8 for boilers or
Appendices H2 or H9 for furnaces.

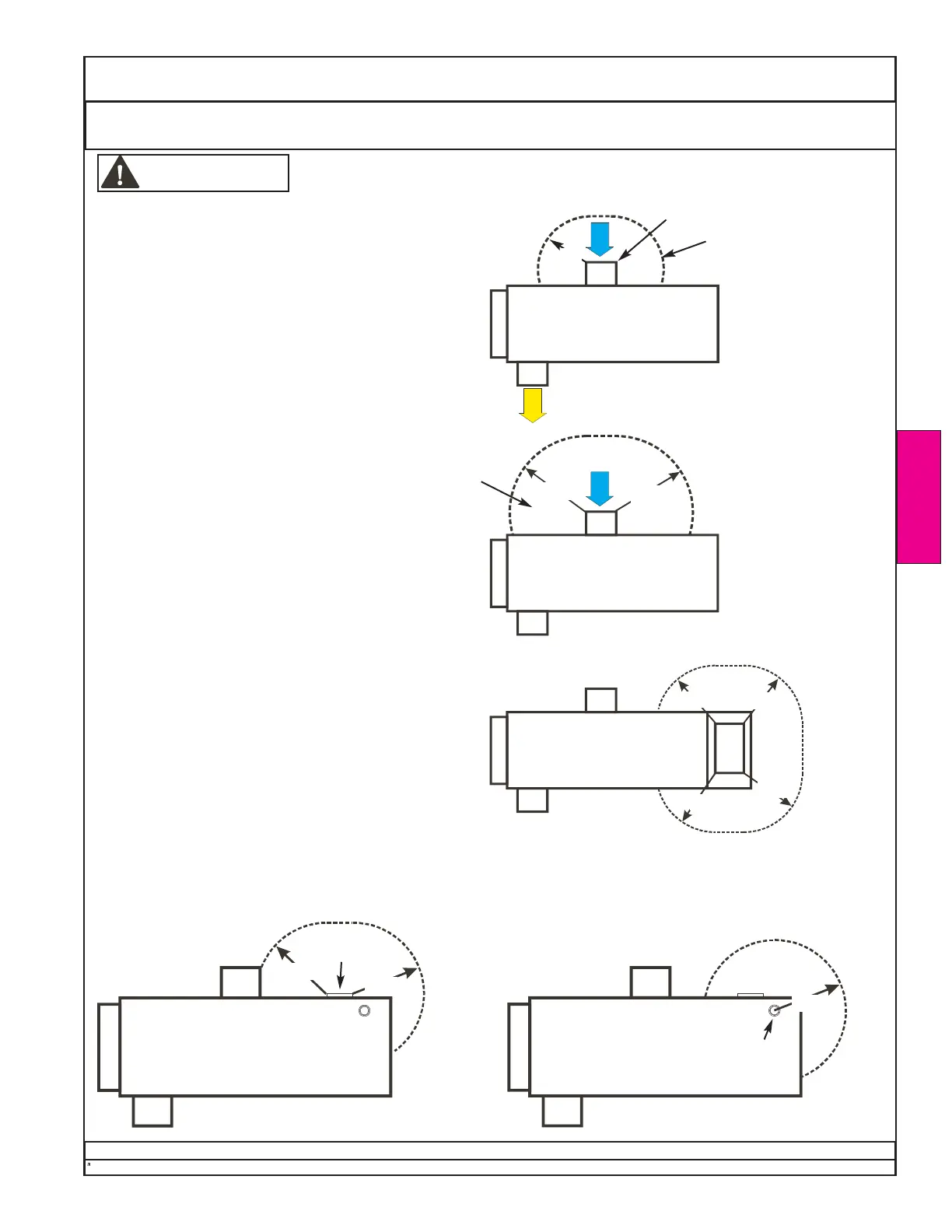

Exclusion zone for
exhausts of com-
bustion equipment
exclusion zone
DRY-O-TRON®
(top view)
DRY-O-TRON
®
(top view)
outdoor-air intake
exhaust air
10 ft
10 ft
Sample
Layout may vary.
Sample
Layout may vary.
10 ft
10 ft
10 ft
10 ft
10 ft
10 ft
10 ft
BOILER
FURNACE
INTAKE
FURNACE
FLUE
DRY-O-TRON®
(top view)
DRY-O-TRON®
(top view)
DRY-O-TRON
®
(top view)
Sample
Layout may vary.
Sample
Layout may vary.
Sample
Layout may vary.
Outdoor Air Intake Clearances Lifting and Locating
LIFTING AND
LOCATING
Risk of contamination of breathing air. Can cause injury or death.
Follow the instructions in this manual and all applicable codes.
WARNING
3 ft
3.5
