DECTRON
Dectron, Inc. March 2012
DSH/DSV/RSH/DBH/RBH Series Dehumidifier Owner’s Manual
Installation Pre-Assembly
Data subject to change without notice.
76

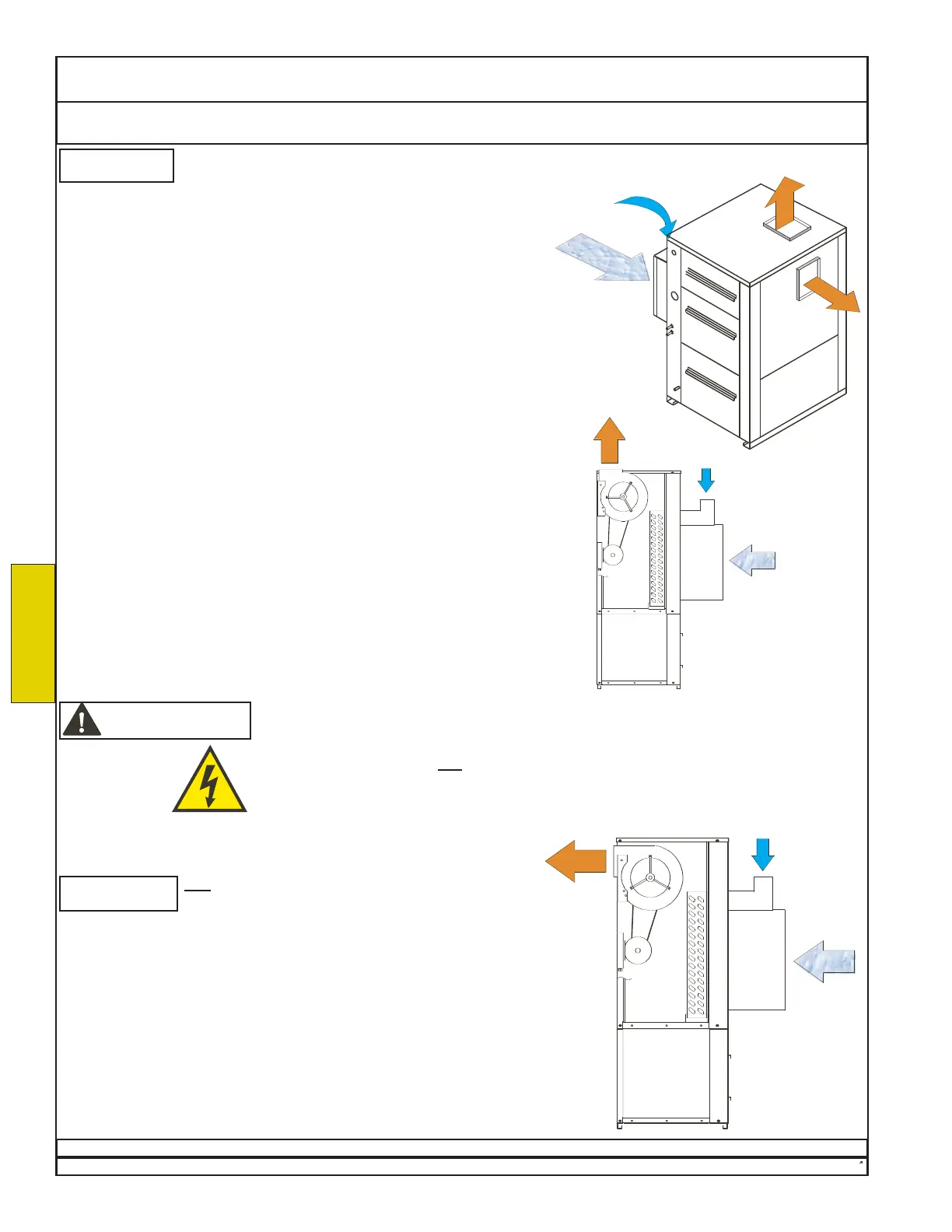

The standard supply-air discharge for vertical units (model
DSV-xxx) is vertically upward.
Some vertical units may have ports allowing supply air to exit
through the top or right side. Where this is the case, select the
best port for the installation. It may be possible to eliminate an
otherwise-required duct elbow near the unit. Cover the unused
port with the blank cover.
Other adjustments, including adjustments to the blower, may
be necessary. Open the front-middle access panel and/or the
rear-top access panel to view the blower arrangements. Be sure
air will flow in the proper direction.
INSTALLATION
NOTICE
Optional Equipment - Some vertical units may have selectable supply-air discharge ports.
Return Air
Outdoor
Air
Supply Air
Supply Air
SAMPLES
Appearance may
vary.
The standard supply-air outlet is vertically upward, as shown at right.
View is from the side opposite the controller.
The optional supply-air outlet is out one side, as shown below.
View is from the side opposite the controller.
Any
change must be done before the unit is
positioned, ducted, installed, or wired.
To change the blower supply-air outlet in the field:
1. Loosen the belt using the slide-base adjustment screw.
2. Remove the belt.
3. Unbolt the blower from its mounting brackets.
4. Move the blower pulley to the other side of the blower.
5. Remove the horizontal-discharge cover plate.
6. Bolt the cover plate over the old opening.
7. Relocate the mounting brackets as required.
8. Attach the blower to its mounting brackets in the horizontal position.
9. Install an appropriately sized belt, align and re-tension.
10. Install rubberized gasket around blower opening.
WARNING
Risk of electric shock. Can cause injury or death.
Some installation and service procedures could expose personnel to the risk of
electric shock. Electric shock can cause injury or death.
The unit controller does not
disconnect electrical energy from the unit, even in the
OFF condition. Use only approved devices (e.g. locking safety switch), to disconnect,
lockout, and tagout all sources of electrical energy before working inside the unit
cabinet. Follow all applicable safety regulations.
Changing to optional side-outlet on vertical units.
NOTICE
