Danger
It is forbidden to store, even temporarily, combustible products
and substances in or near the boiler.
Caution
The boiler must be installed in a frost-free area.
An earthed electrical connection must be available close to the
boiler.
A connection to the drain must be present for the condensate
drain close to the boiler.
L
Left-hand version
R
Right-hand version
I
Inspection trap (service side)
The service side with the inspection trap on the heat exchanger is
considered to be the front of the boiler. The boiler is available in both a
'left-hand' and 'right-hand' version. This means that the hydraulic
connections and the flue gas discharge are situated on either the left or
the right-hand side of the boiler. The control panel is on the front as
standard, but can easily be rotated so that it is on the short side.
The adjustment bolts must be used to make the boiler level and to raise
the wheels off the floor. Turn the adjustment bolts outwards as soon as the
boiler is placed in the correct position. The figure shows the support
surface of the boiler (this is the position of the adjustment bolts).
Tab.14 Dimensions A (mm)
C 330 ECO A (mm)
280 723
350 723
430 723
500 1032
570 1032
650 1032

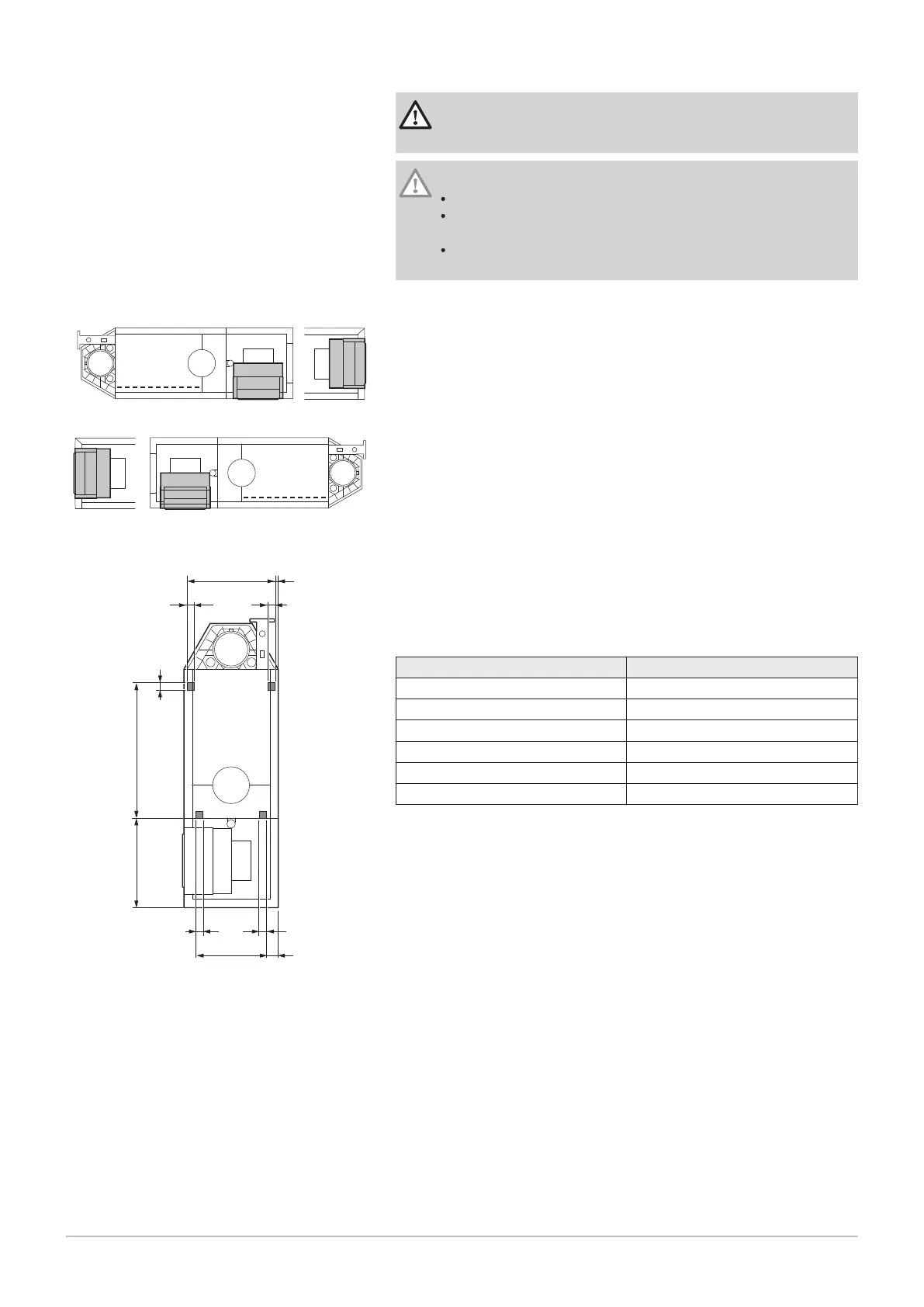

Fig.7 Left-hand and right-hand versions
AD-0000515-01
L
R
I
I
Fig.8 Position of the adjustment bolts
AD-0000486-01
55 55
55 55
663 21,5
531 87,5
673
55
A
5 Before installation
24 7600532 - v.11 - 13122018
