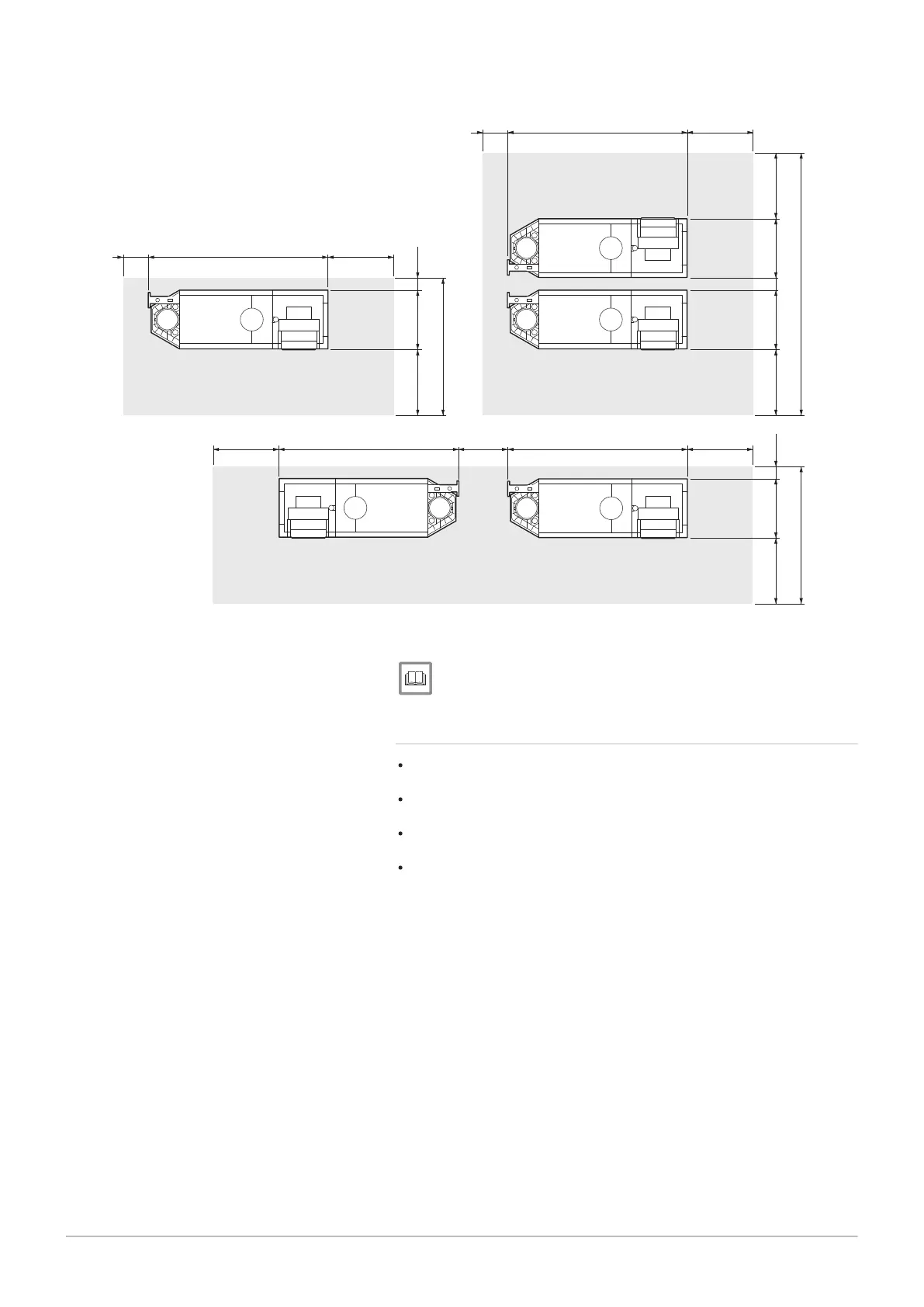

Fig.9 Clearance required
AD-0000506-02
C C
C
800
300
600
800 800
720
1670
800150
720720
3190
800
800
150
720
1670
800150
C
800
300
For the dimensions of C:
See
Boiler type C 330 ECO, page 16
5.2.3 Installing the boiler C 630 ECO
Use the guidelines and the required installation space as a basis for
determining the correct place to install the boiler.
When determining the correct installation area, take account of the
permitted position of the flue gas outlet and/or air supply outlet.
Ensure that there is sufficient space around the boiler for good access
and ease of maintenance.
A technical clearance of at least 80 cm is required at the front (service
side) of the boiler. However, we recommend that the clearance is at
least 100 cm. Above the boiler, we recommend a clearance of at least
40 cm (when using an air inlet filter, the clearance must be at least 65
cm). A minimum of 30 cm is required on the side of the flue gas outlet,
and a minimum of 30 cm is also required on the other side (or 80 cm, if
this is operating side).
5 Before installation
7600532 - v.11 - 13122018 25
