Danger
It is forbidden to store, even temporarily, combustible products
and substances in or near the boiler.
Caution
The boiler must be installed in a frost-free area.
An earthed electrical connection must be available close to the
boiler.
A connection to the drain must be present for the condensate
drain close to the boiler.
The boiler is not available with a choice between 'left-hand' and 'right-
hand' versions. The control panel is on the front as standard, but can
easily be rotated so that it is on the short side.
The adjustment bolts must be used to make the boiler level and to raise
the wheels off the floor. Turn the adjustment bolts outwards as soon as the
boiler is placed in the correct position. The figure shows the support
surface of the boiler (this is the position of the adjustment bolts).
Tab.15 Dimensions A (mm)
C 630 ECO A (mm)
560 723
700 723
860 723
1000 1032
1140 1032
1300 1032

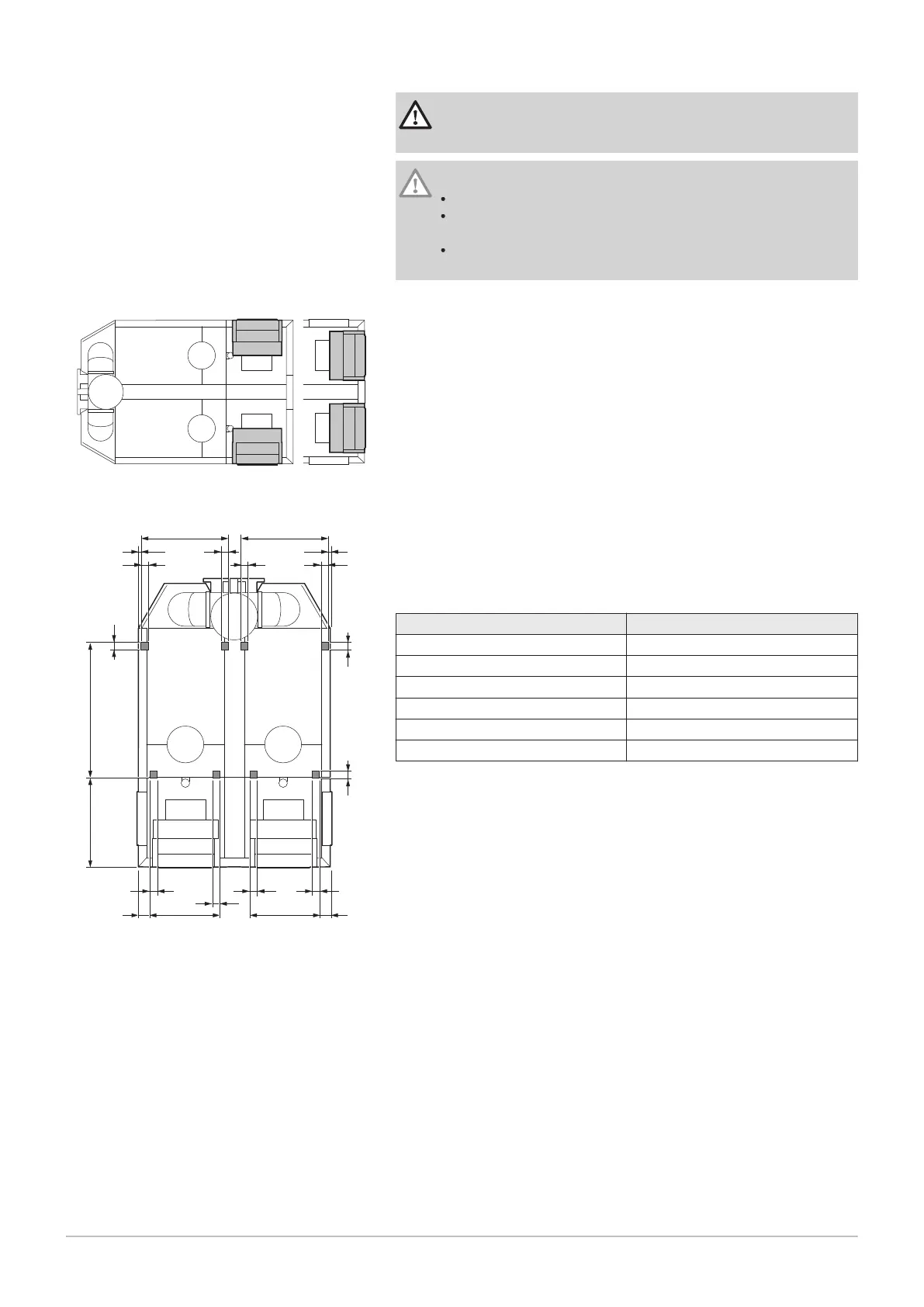

Fig.10 Position of the control panel
Fig.11 Position of the adjustment bolts
AD-0000510-01
5555
55
55
21,5
21,5
87,5531
663663
53187,5
673
A
55
55
55
55
55
55
55
5 Before installation
26 7600532 - v.11 - 13122018
