(without casing 700 mm), meaning that it will fit through all standard
doorways. The boiler has wheels so that, once the packaging has been
removed, it can easily be moved around.
Caution
The wheels are designed for transport purposes only and not for
use when the boiler is in its final position.
If required for internal transport, the boiler can be dismantled into smaller
parts for transport. The boiler can be stripped of:
Casing panels
Gas/air components
The frame section on the control panel side
See drawing and table for the dimensions and weight of the largest
remaining transport element (frame element with heat exchanger and
water connections).
Tab.17 Boiler dimensions and weight
C 330 ECO L (mm) Weight (kg)
280 1160 249
350 1160 283
430 1160 317
500 1469 356
570 1469 390
650 1469 424
See
Refer to the installation manual supplied for information on how to
install the boiler parts.

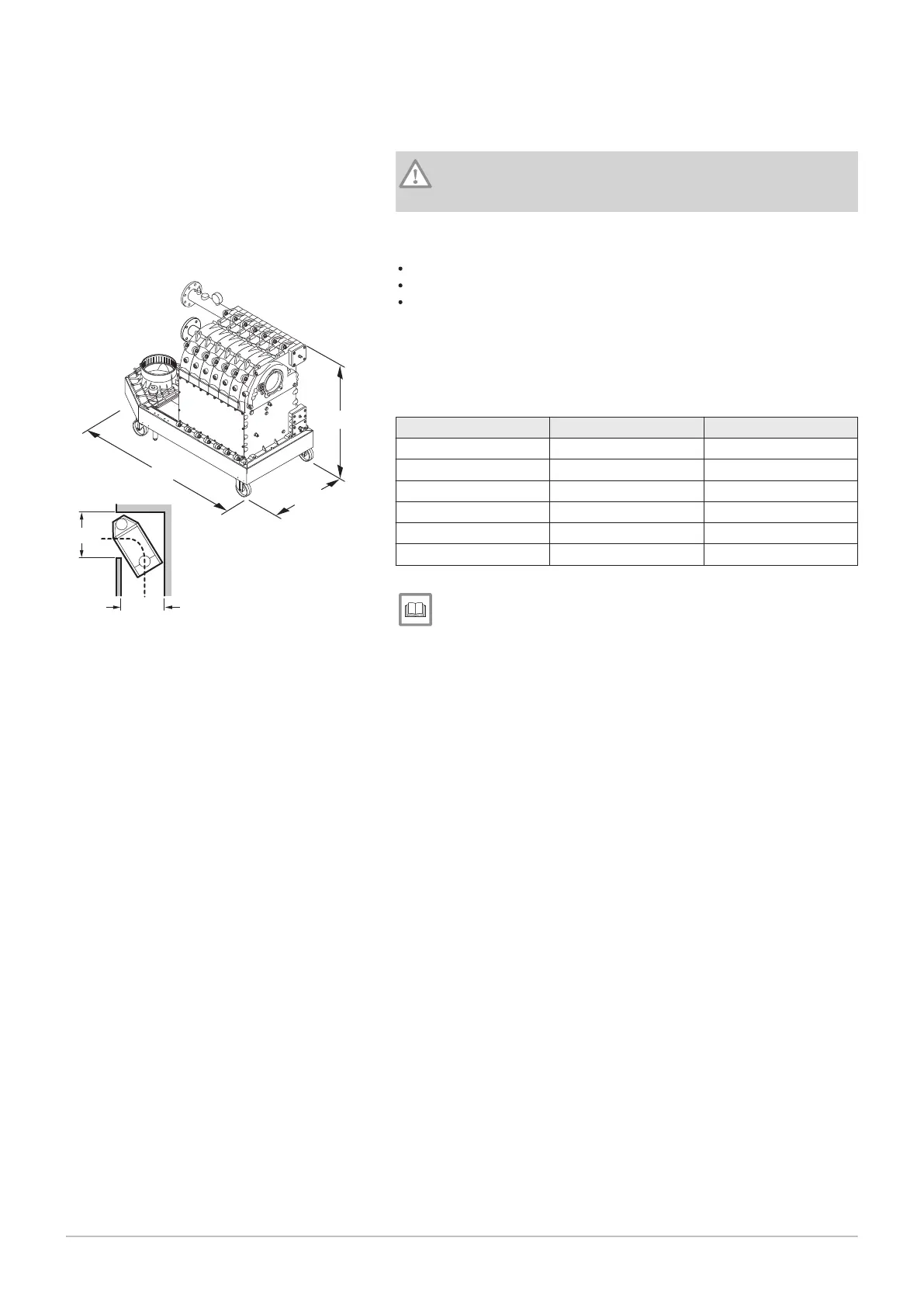

Fig.15 Transport element
