n
CIRC.CURVE ..

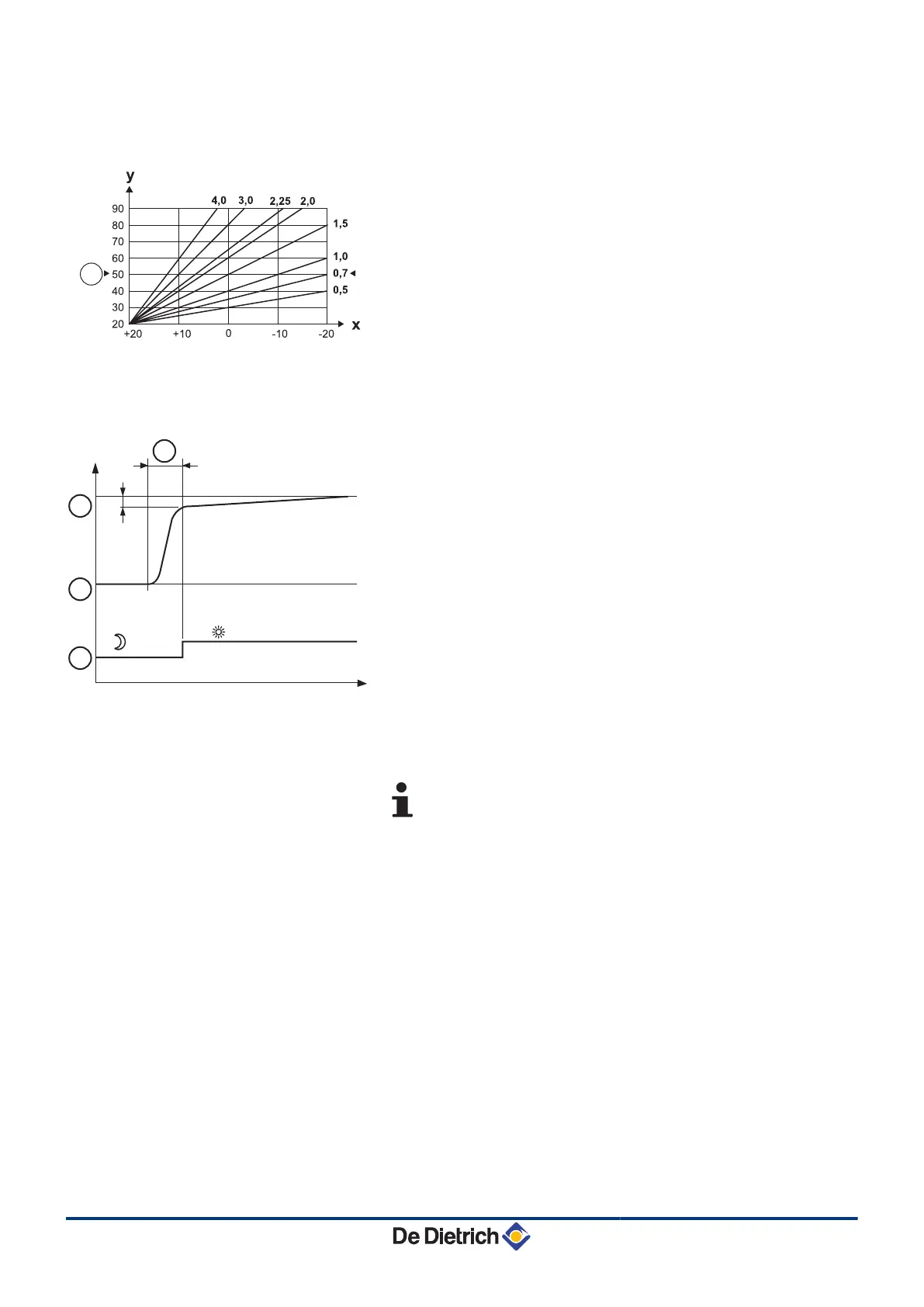

Heating curve circuit A, B or C
x
Outside temperature (°C)
y
Water flow temperature (°C)
A
Maximum temperature of the circuit B - C
n
ANTICIP.A, ANTICIP.B, ANTICIP.C
A
Room temperature setpoint - Comfort
Z
Room temperature setpoint - Reduced
E
Time schedule
R
Anticipation time = Accelerated reheating phase
The anticipation function calculates the heating restart time to reach
the desired room temperature less 0.5 K at the time programmed for
switching to comfort mode.
The start time of the timed programmed corresponds to the end of the
accelerated reheating phase.
The function is activated by setting a different OFF value.
The value set corresponds to the time considered necessary to bring
the installation to the required temperature (at outside temperature
0°C), starting from a residual room temperature corresponding to the
reduced temperature setpoint.
Anticipation is optimized if a room sensor is connected.
The regulator will automatically fine set the anticipation time.
This function is dependent on the surplus power available
in the installation.
n
SCREED DRYING
Used to force a constant flow temperature or a train to accelerate
screed drying on underfloor heating.
The setting for these temperatures must follow the screed-layer’s
recommendations.
The activation of this parameter (setting other than OFF) forces the
permanent display of SCREED DRYING and deactivates all other
functions on the control unit.
When floor drying is active on a circuit, all other circuits (e.g. DHW)
are shut down. The use of this function is only possible on circuits B
and C.
Diematic iSystem For C 330 / C 630 ECO
5. Commissioning
31082018 - 7600691-001-06
58
