20181270 CR v8-2019Page 32
- It is also possible to install the indoor units using the existing perforation on the side.
- Please note that it is perfectly possible to make the electrical, condensate and refrigerant connections
on both sides of the unit.
Condensate discharge:
- Remember that the condensate drains due to gravity.
- Connect the condensate discharge pipe to the heat-insulated plastic pipe on the right-hand side of the
indoor unit (rear view).
- Ensure that the condensate discharge pipe comes out of the indoor unit sloping downwards. The
highest point of the outlet connections must not go past the position of the tank.
- The drain pipe can be connected to plug 1 or 2 ready for condensate discharge.
- If you need to change the drain pipe to the opposite side, remove the rubber cap and use a
screwdriver to secure it on the side which is not being used.

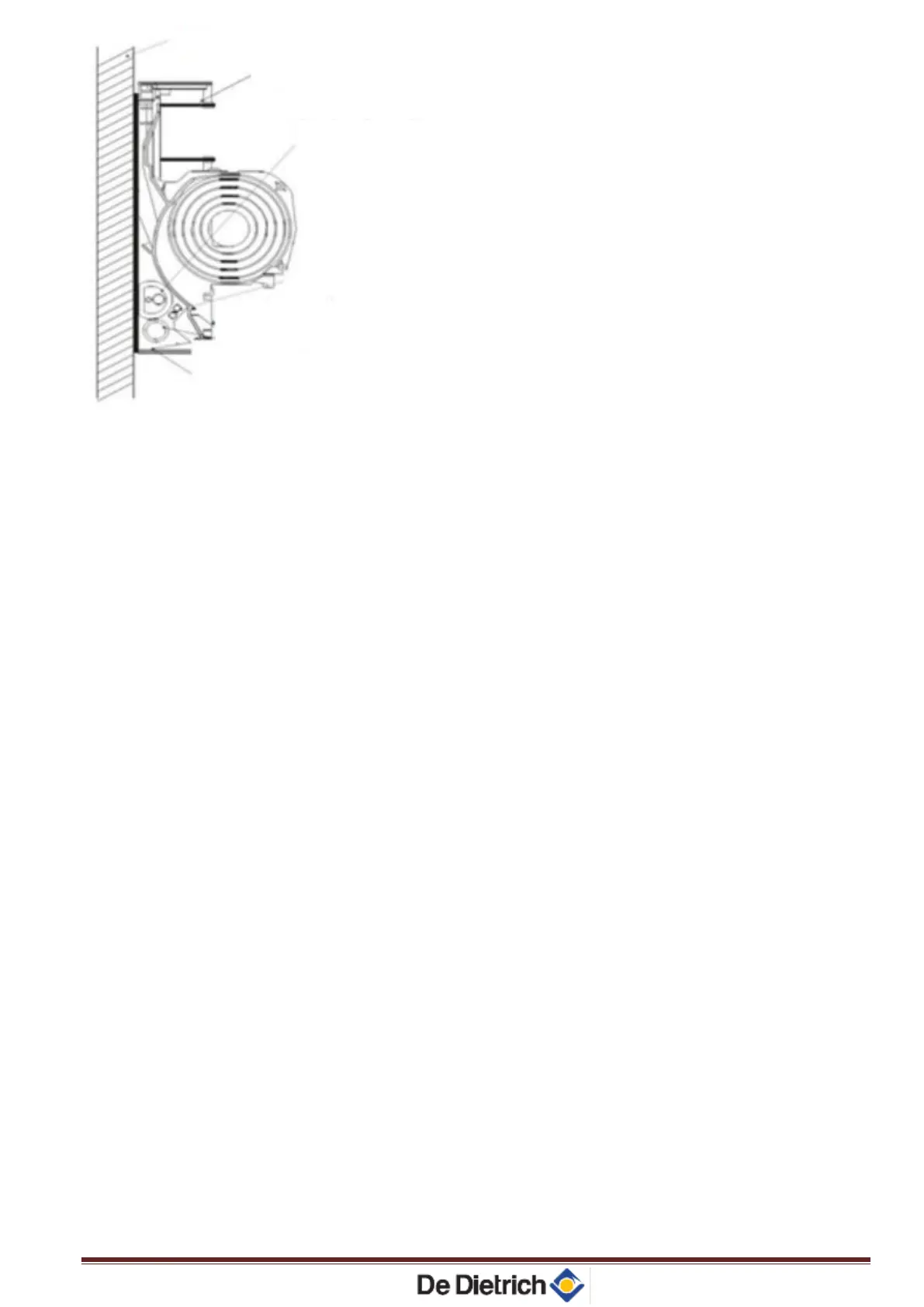

Condensate
discharge pipe
