20181270 CR v8-2019Page 31
- Once you have checked that the wall is solid and able to bear the weight of the indoor unit, you can begin to drill
holes in the wall.
- Secure the support to the wall using suitable cross-headed screwdrivers.
- Use a spirit level to ensure that the support is horizontal. If it is not level, condensate could leak from the air-
conditioner when it operates in cooling mode.

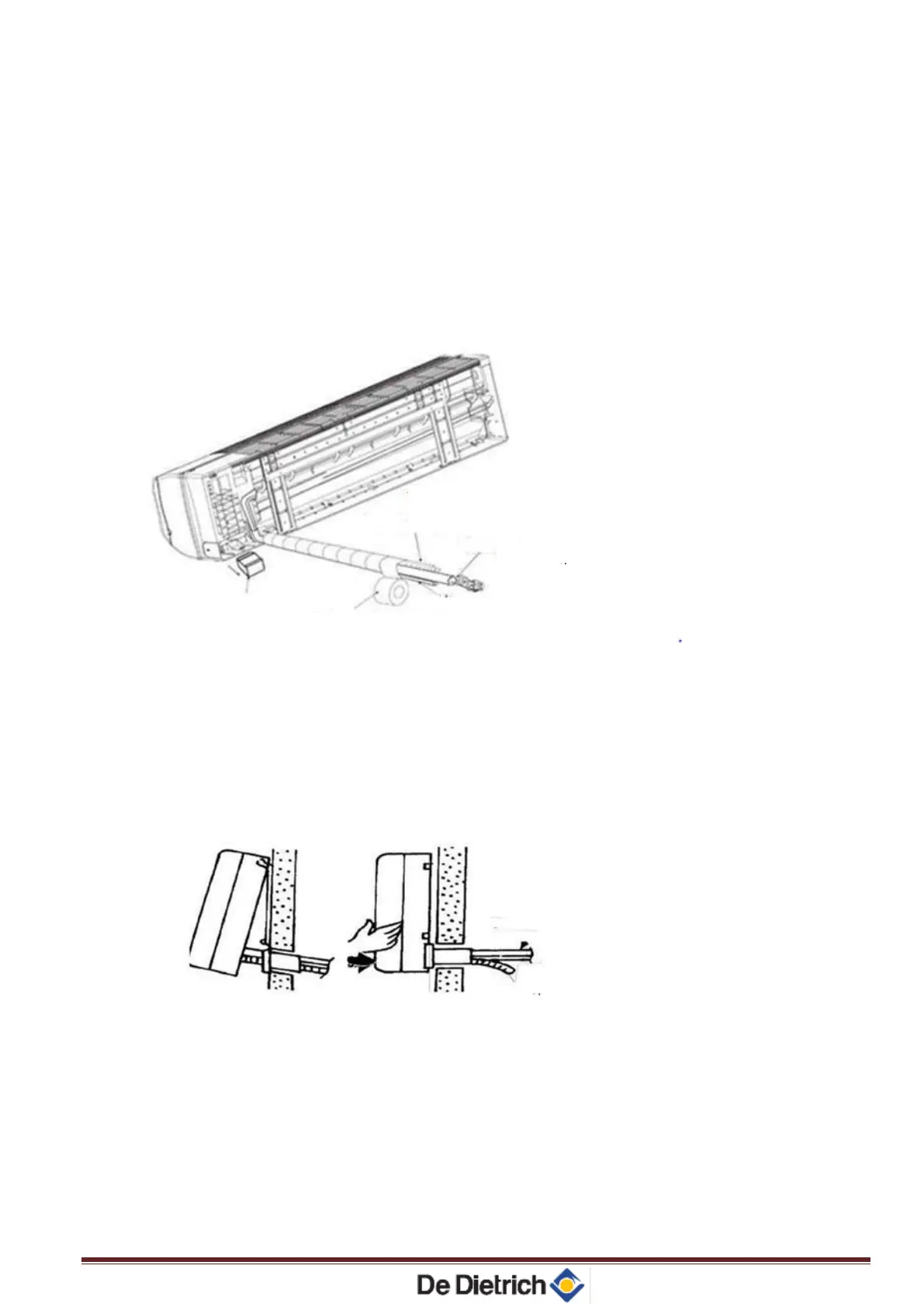

- Attach the indoor unit to the support using the upper tabs. Ensure that the indoor unit is properly
centred.
- Place the indoor unit on the mounting plate and push it until the hooks are firmly fixed in the guides
and you hear them "click".
Condensate
discharge pipe
