Location of fittings:

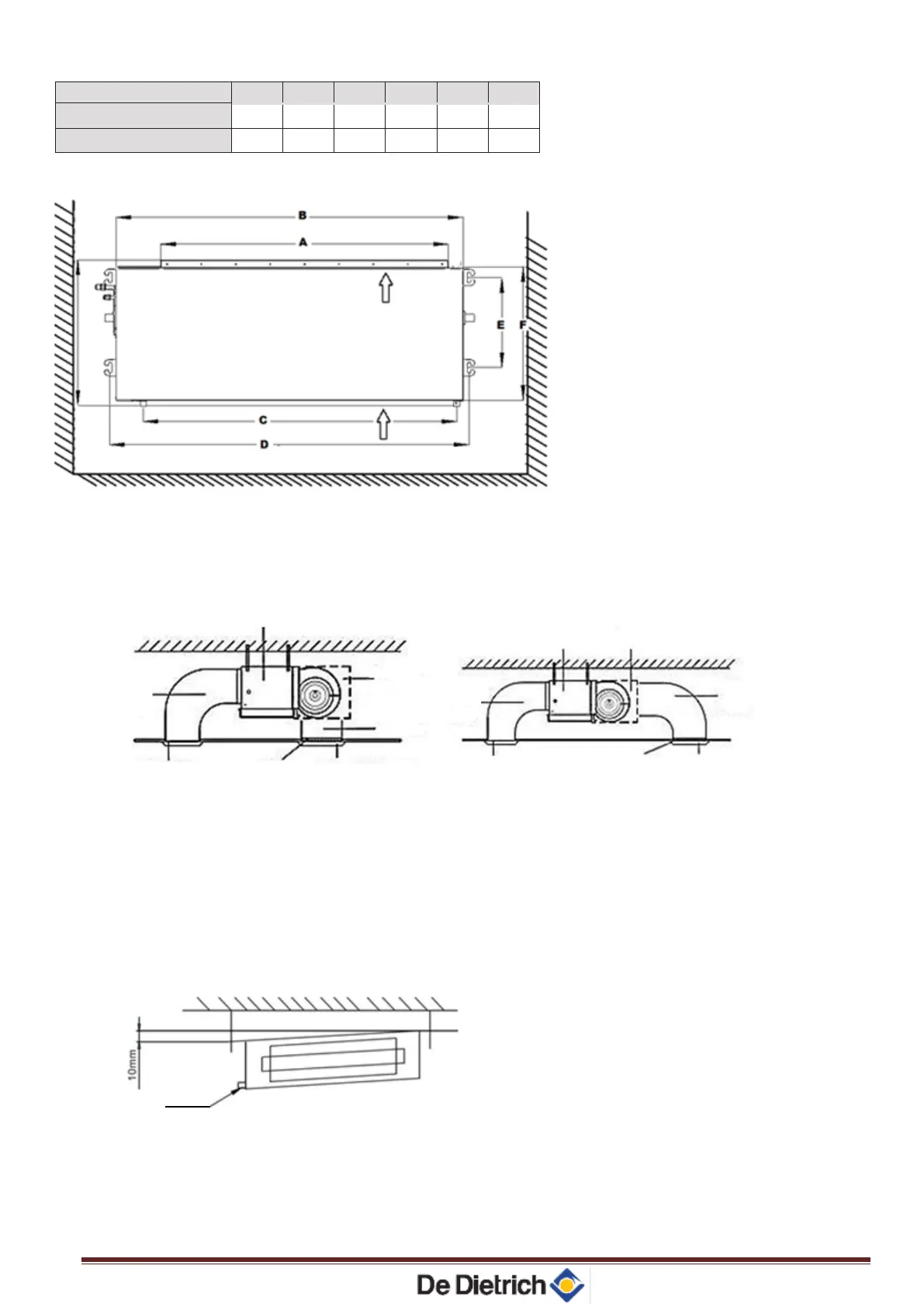

Installation examples:
Condensate discharge: The condensate lift pump is built into UGE indoor units
1) As shown in the illustration below, the condensate discharge outlet on the indoor unit must be
connected to a drain to facilitate condensate discharge
2. The condensate pipe must be sloping downwards (1/50-1/100). If the drain pipe is installed with reverse
slopes, this will cause water leaks or backflow.
Air inlet grille
Air inlet grille
